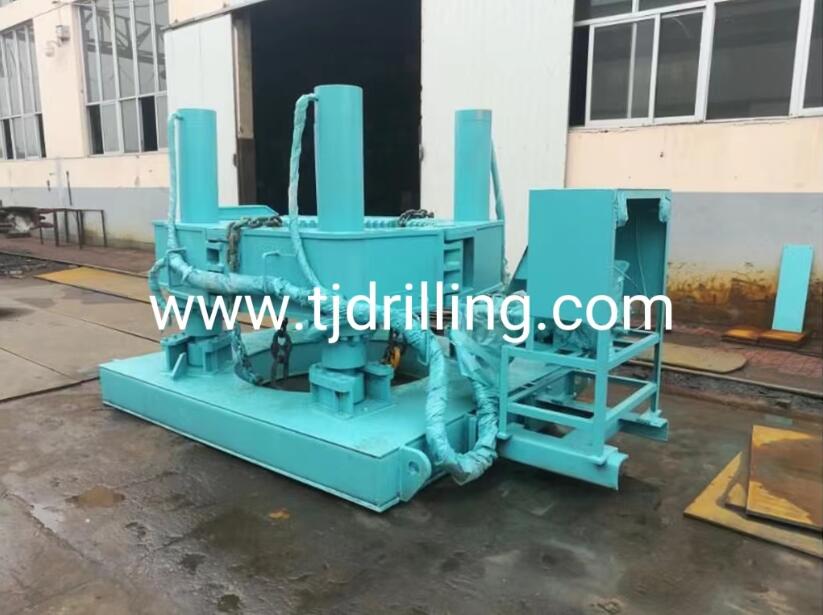

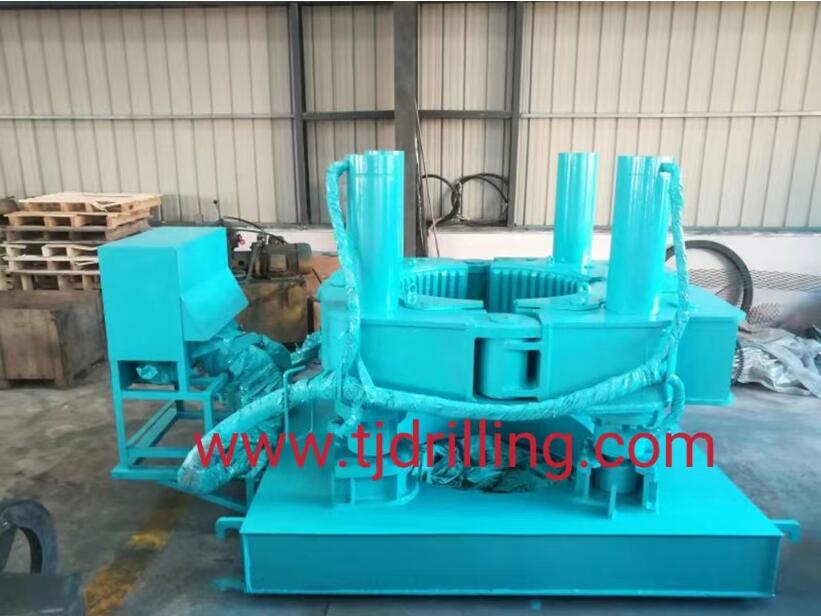

¦µ1500mm hydraulic casing extractor with 1200mm reduction insert used for secant pile foundation work
¦µ1500mm hydraulic casing puller with 1200mm reduction insert used for secant pile foundation work
¦µ1500mm hydraulic tube extractor with 1200mm reduction insert used for secant pile foundation work
¦µ1500mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work
¦µ1500mm hydraulic casing extractor with electricity motor power pack used for secant pile foundation work
We can produce 400-3000mm casing extractor , can add different size reduction insert suit to different casing pipe , our hydraulic casing extractor can use different hydraulic power pack
Diesel engine power and electricity motor power pack.
They are hydraulic clamping machines to pull out casing pile pipe or similar pipe. Pull out casing pile pipe or similar pipe. They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack
1 specification of hydraulic casing extractor
|
NAME |
unit |
REMARK | |
|
Cylinder lift number |
PC |
4 |
|
|
Cylinder stroke length |
mm |
1000 |
|
|
Cylinder clamp number |
pc |
1 |
|
|
MAX CLAMP FORCE |
t |
200 |
BELOW 30MPa |
|
MAX CASING SIZE |
mm |
1500 |
|
|
MAX LIFT FORCE |
t |
500 |
30MPa |
|
WEIGHT |
kg |
8000 |
|
|
SizeL*W*H) |
m |
3.7x2.2x2.1 |
Transport size |
2 specification of hydraulic power pack
|
Electricity motor | ||
|
motor |
motor | |
|
power |
Kw |
45 |
|
speed |
rpm |
1500 |
|
Oil capacity |
L/min |
150 |
|
Work pressure |
MPa |
25 (max 30MPa) |
|
Oil size |
L |
850 |
|
size |
mm |
1920*1400*1500 |
|
weight |
Kg |
1500 |
Tianjin huachang xingye technology co ltd
Email info@tjdrilling.com whatsapp 008618902059907
|
Model |
Diesel engine power |
remark |
|
engine |
4BTAA3.9-C100 |
Cummins |
|
Engine power kW |
75 |
|
|
Big pump discharge capacity l/min |
150 |
|
|
Big pump discharge capacity l/min L/min |
45 |
|
|
Operation pressure £ºMPa |
25 |
|
|
Oil tank capacity L |
900 |
|
|
Hydraulic oil grade |
YB-N46 |
|
|
Over size (L¡ÁW¡ÁH)(mm) |
3000¡Á2000¡Á1700 |
|
|
WEIGHT (kg) |
2000 |
NOT INCLUDE OIL |
