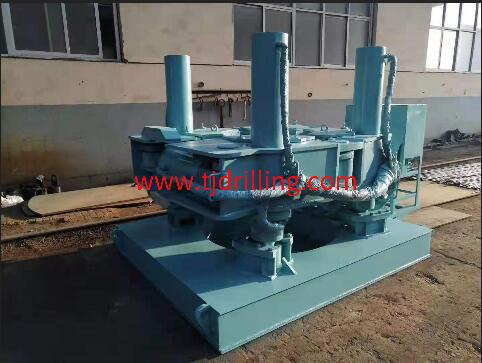

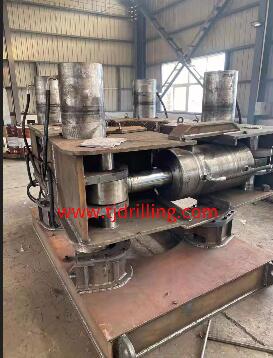

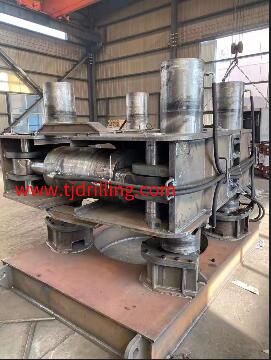

Our 24inch casing extractor made for drawing our water well drill pipe ,casing pipe , casing tube ,diameter from 8inch-24inch ,355mm-610mm lift force from 40ton-400ton
They are hydraulic clamping machines to pull out casing pile pipe or similar pipe. Pull out casing pile pipe or similar pipe. They may be coupled to the base pile machine by means of telescopic boom or they can work alone with its own hydraulic power pack
specification
unit
B600
extract cylinder
pc
4
Cylinder max stroke
mm
800
Suitable max casing diameter
mm
610
Max extract force
T
200
Clamp force
T
90
weight
Kg
3500
oversize£¨L*W*H£©
m
2.6x1.35x1.6

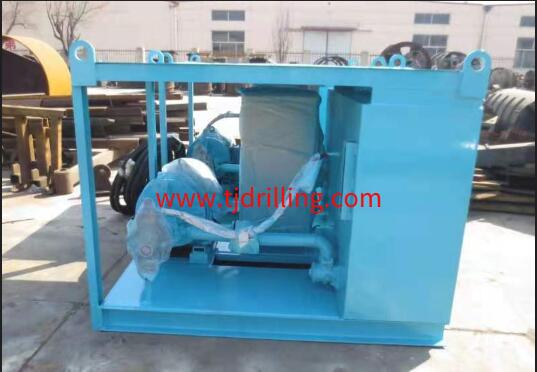

2 SPECIFICATION OF ELECTRICITY MOTOR
NAME
parameter
remark
Max pressure MPa
30
Working pressure MPa
25
Hydraulic pump flow L/min
90
Power KW
30
Oil tank size L
450
Transport size mm
1.70¡Á1.4¡Á1.4
L¡ÁW¡ÁH
Weight £¨not include oil£©kg
1000
