Sell 600mm diaphragm wall stop end elements B600mm Wide Used for Diaphragm Wall ConstructionSell 600mm diaphragm wall water stop end elements B600mm Wide Used for slurry Wall Construction
Sell diaphragm wall stopend bar 600mm for Diaphragm Wall Construction
Sell 800mm diaphragm wall water stop end elements b800mm wide used for diaphragm wall construction
Sell 800mm diaphragm wall flat stop end elements b800mm wide used for diaphragm wall construction
Sell 1000mm diaphragm wall water stop end elements b1000mm wide used for diaphragm wall construction
Sell 1000mm diaphragm wall flat stop end elements b1000mm wide used for diaphragm wall construction
Sell 1200mm diaphragm wall water stop end elements b1200mm wide used for diaphragm wall construction
Sell 1200mm diaphragm wall flat stop end elements b1200mm wide used for diaphragm wall construction
Sell 500mm diaphragm wall water stop end elements b500mm wide used for diaphragm wall construction
Sell 500mm diaphragm wall stop end elements b500mm wide used for diaphragm wall construction
Sell 400mm diaphragm wall water stop end elements b00mm wide used for diaphragm wall construction
Sell 400mm diaphragm wall stop end elements b400mm wide used for diaphragm wall construction
During production of cast in situ concrete diaphragm walls, the most important factor, especially to achieve a watertight joint, will be the use of the right stop-end elements.
The stop-end elements contain the concrete on the lateral side meanwhile they create a particular casting profile that offers a high seal against water infiltrations.
Stop End Elements are coupled together through special steel shafts even better special o-rings, which ensure a perfect seal among the areas of the diaphragm.

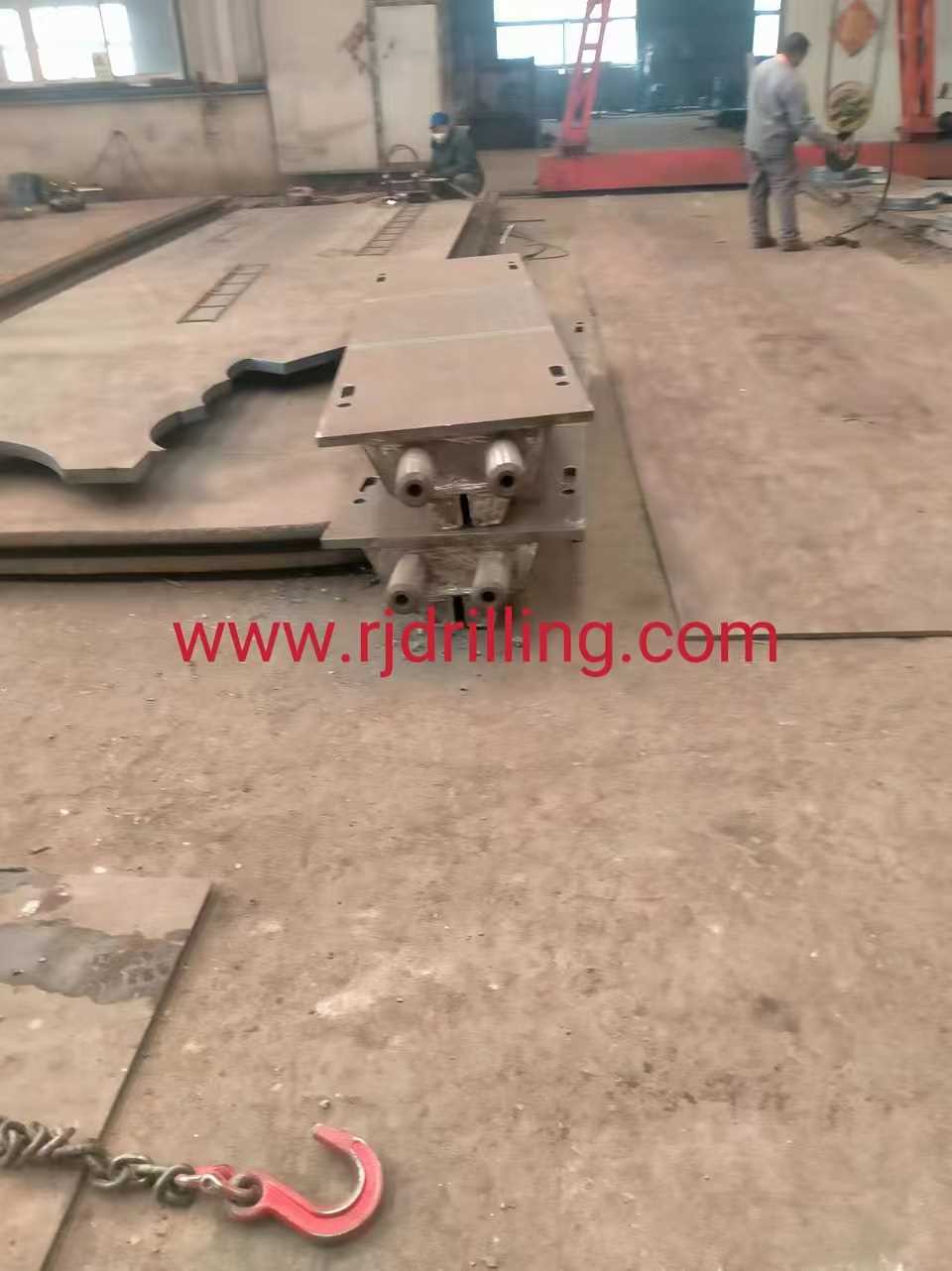

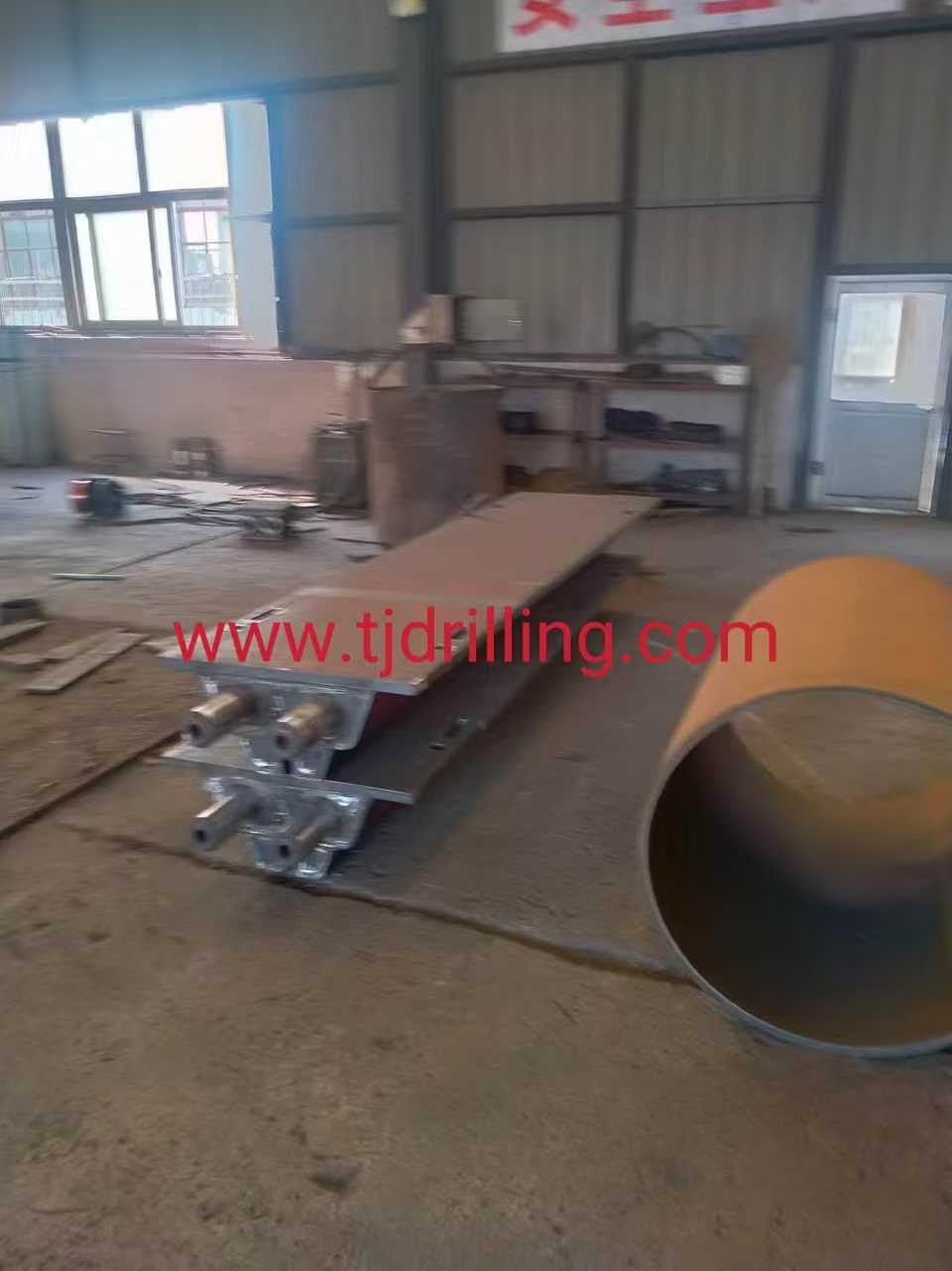

Stop End Element is made of sheet metal welded and its special profile is achieved by a process of press bending and finally an internal reinforcing structure increases its strength and avoids the risk of deformation.
Water stop joint
Guide head
| Width mm | A | B | C | LENGTH |
| 500mm | 480MM | 236MM | 220MM | 3M,6M,9M |
| 600mm | 580MM | 336MM | 220MM | 3M,6M,9M |
| 800mm | 780MM | 536MM | 220MM | 3M,6M,9M |
| 1000mm | 980MM | 736MM | 220MM | 3M,6M,9M |
| 1200mm | 1180MM | 936MM | 220MM | 3M,6M,9M |
Pilipines §²§à§ã§ã§Ú§ñ/russia 600mm diaphragm wall stop end elements,belize/Puerto Rico/Guatemala/San salvador/Honduras 600mm diaphragm wall stop end elements,Ecuador Peru lima ,callao/Bolivia Chile Santiago de Chile Argentina/Uruguay/Paraguay,Brasil/Guyana 600mm diaphragm wall stop end elements,usa ,america los Angeles/new york/California 600mm diaphragm wall stop end elements,South Africa Kazakhstan 600mm diaphragm wall stop end elements , spain Portugu¨ºs germany italy ,greece romania serbia,france 600mm diaphragm wall stop end elements south africa 600mm diaphragm wall stop end elements,south korea 600mm diaphragm wall stop end elements, japan 600mm diaphragm wall stop end elements , taiwan , hong kong 600mm diaphragm wall stop end elements,UAE DUBAI diaphragm wall stop end , Israel diaphragm wall stop end
Tianjin huachang xingye technology manufacture two type diaphragm wall stop end , round stop end pipe , flat stop end elements ,also produce diaphragm wall round stop end pipe extractor from 500mm-3000mm,flat stop end extractorB500-1200MM,diaphragm wall joint tube extractor600mm
Hydraulic equipment designed for the extraction of diaphragm wall stop end sheet piles width 600 to 1200 mm The unit is operated by a power pack and it is composed of heavy duty base frame with two trapezoid sliding columns maneuvered by 4 hydraulic rams with 750 mm stroke. The system is complete with locking system pins to ensure the stop end sheet piles to the sliding frames and to prevent dropping of the column.
Tianjin huachang xingye technology co ltd
Diaphragm wall flat stop end elements
STOP-END-ELEMENT
MAIN FEATURES
During production of cast in situ concrete
diaphragm walls, the most important
factor, especially to achieve
a watertight joint, will be the use
of the right stop end elements. They
contain the concrete on the lateral side
meanwhile they create a particular
casting profile that offers a high
seal against water infiltration. Stop
End Elements are coupled together
through special steel shafts even better
special o-ring ensure a perfect seal between the areas of the diaphragm. They are made of sheet metal welded and its special profile is achieved by a process of press bending and finally an internal reinforcing structure increases its strength and avoids the risk of deformation. The excavation of a follow-up panel is carried out by clamshell grab, with the help of a special flat chisel if needed, both guided by the channel in the pipe. While digging, these tools clean the exposed side of the pipe. The trapezoidal design of the Stop End Elements, and its constructive characteristics, allows a spontaneous lateral movement after the excavation, making a delayed extraction very easy. The continuity of two following panels is guaranteed even in the presence of small vertical deviations, because the excavation is guided along the stop
TIANJIN HUACHANG XINGYE TECHMOLOGY CO LTD can supply DIAPHRAGM WALL WATER Stop End Elements in various widths and lengths. They are easily jointed each other through special steel. The diaphragm wall Stop End Elements are: head element that is used for their lifting and extraction, intermediate elements and element shoe (Starter). In addition, to facilitate the use of Stop End Elements, TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD manufactures a chisel cleaner kit (dedicated to the cleaning of the channel guide) and a Platform Suspension Jig (dedicated to the support of Stop End Element during installation).
