1000mm Double Cut Rock Bucket with Casted Kelly Box Used for Bored Pile Foundati
Information
1000mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig1000mm bored pile double cut rock bucket with round shank chisel b47k22h for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
1000mm bored pile double cut rock bucket with round shank chisel B40K12 for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
600mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig
600mm bored pile double cut rock bucket with round shank chisel b47k22h for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
600mm bored pile double cut rock bucket with round shank chisel B40K12 for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
800mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig
800mm bored pile double cut rock bucket with round shank chisel b47k22h for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
800mm bored pile double cut rock bucket with round shank chisel B40K12 for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
1200mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig
1200mm bored pile double cut rock bucket with round shank chisel b47k22h for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
1500mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig
1500mm bored pile double cut rock bucket with round shank chisel b47k22h for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
2000mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig
2000mm bored pile double cut rock bucket with round shank chisel b47k22h for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
2500mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig
2500mm bored pile double cut rock bucket with round shank chisel b47k22h for piling foundation work used on Bauer-bg ,soilmec .casagrande rotary drill rig
3000mm double cut rock bucket with casted kelly box used for bored pile foundation work match Bauer-bg ,soilmec .casagrande rotary drill rig

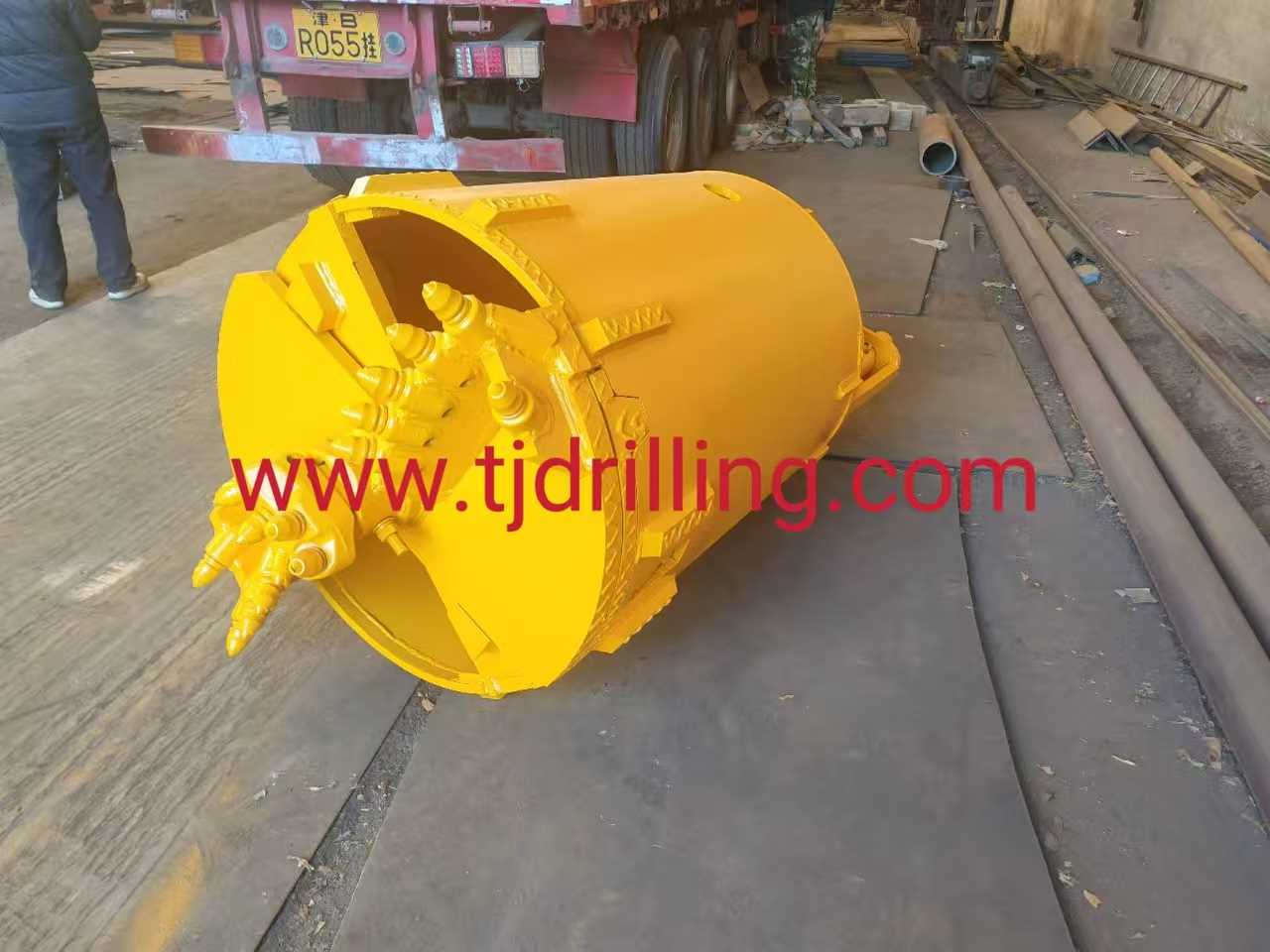

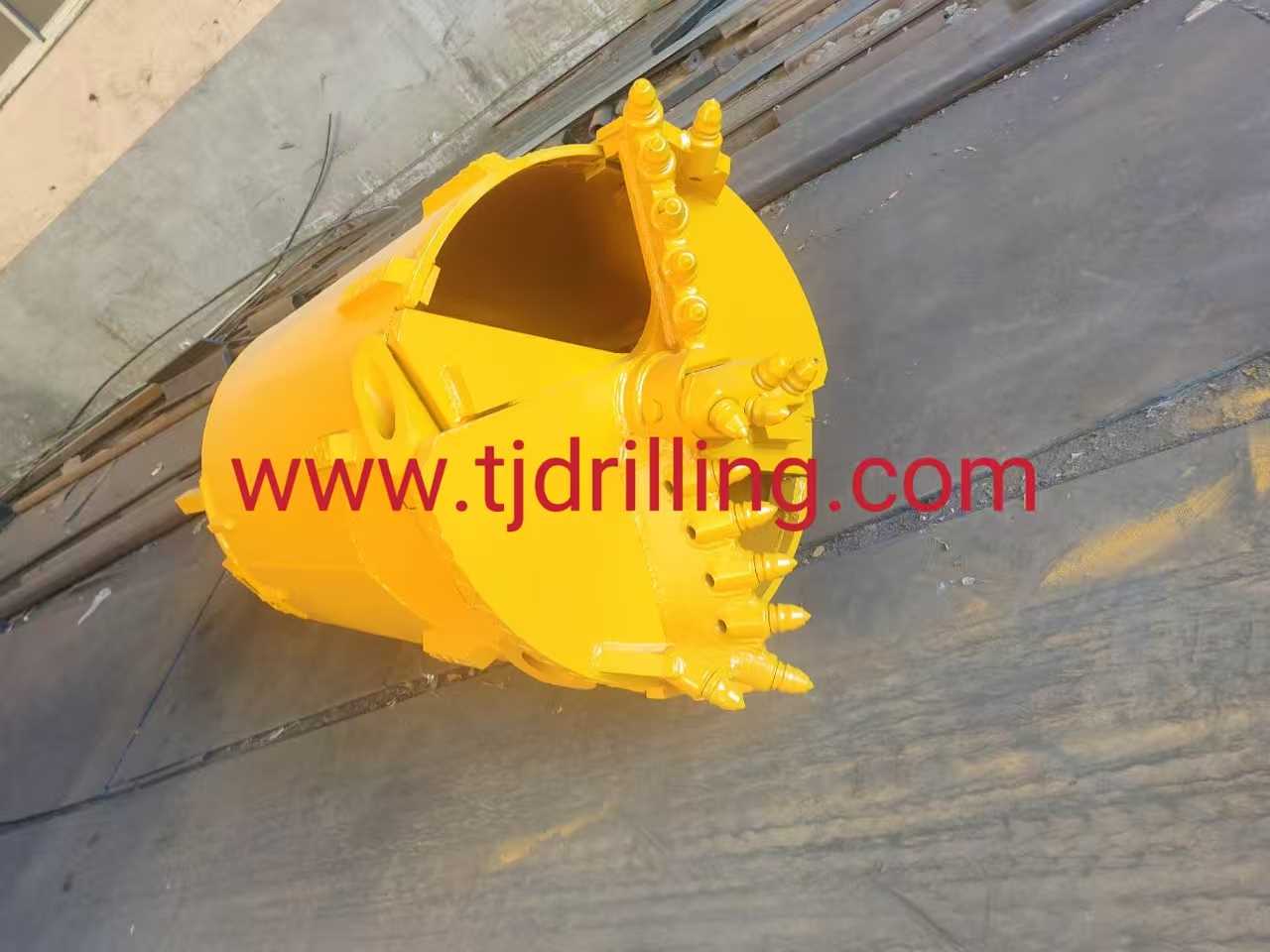

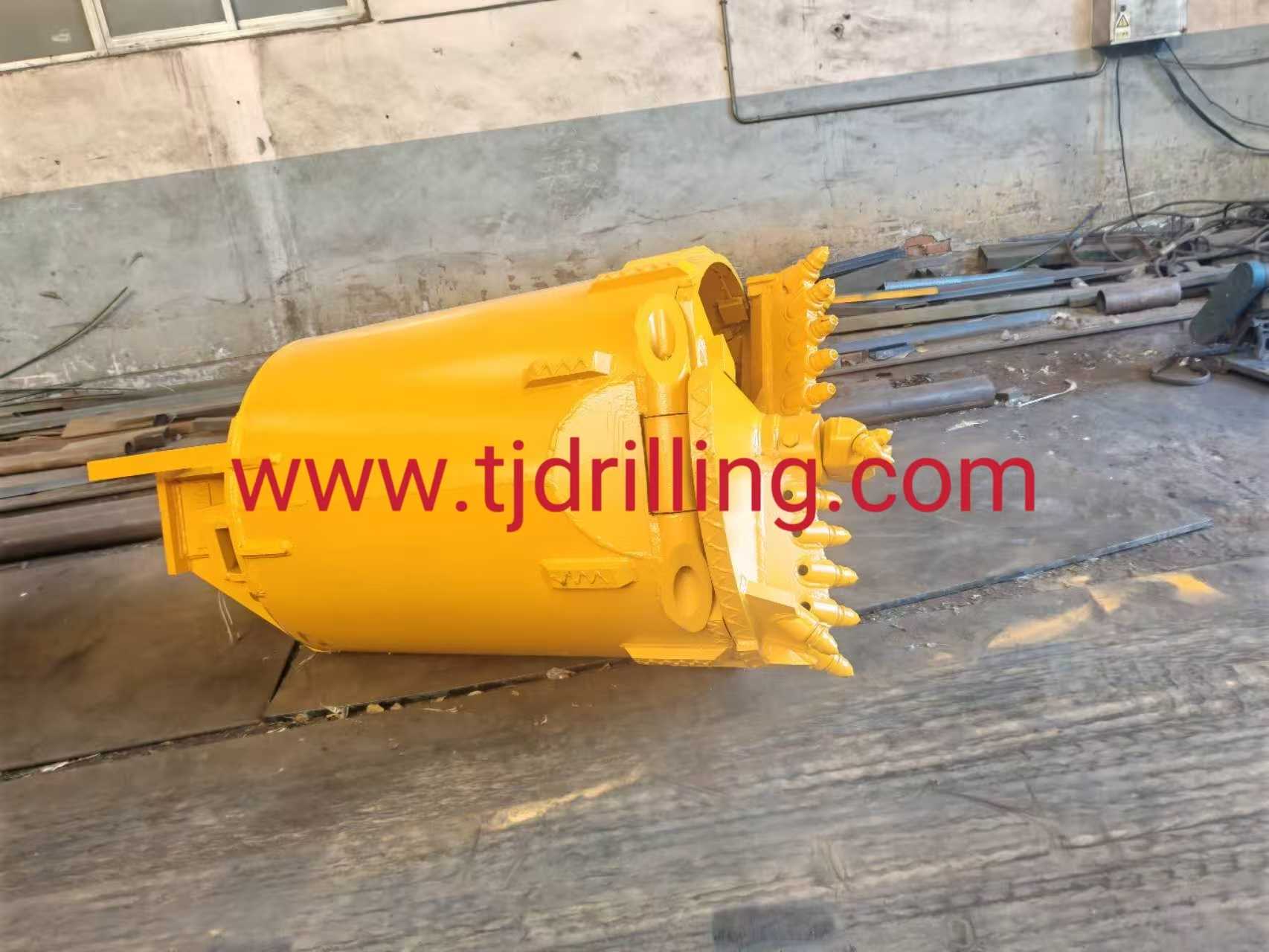

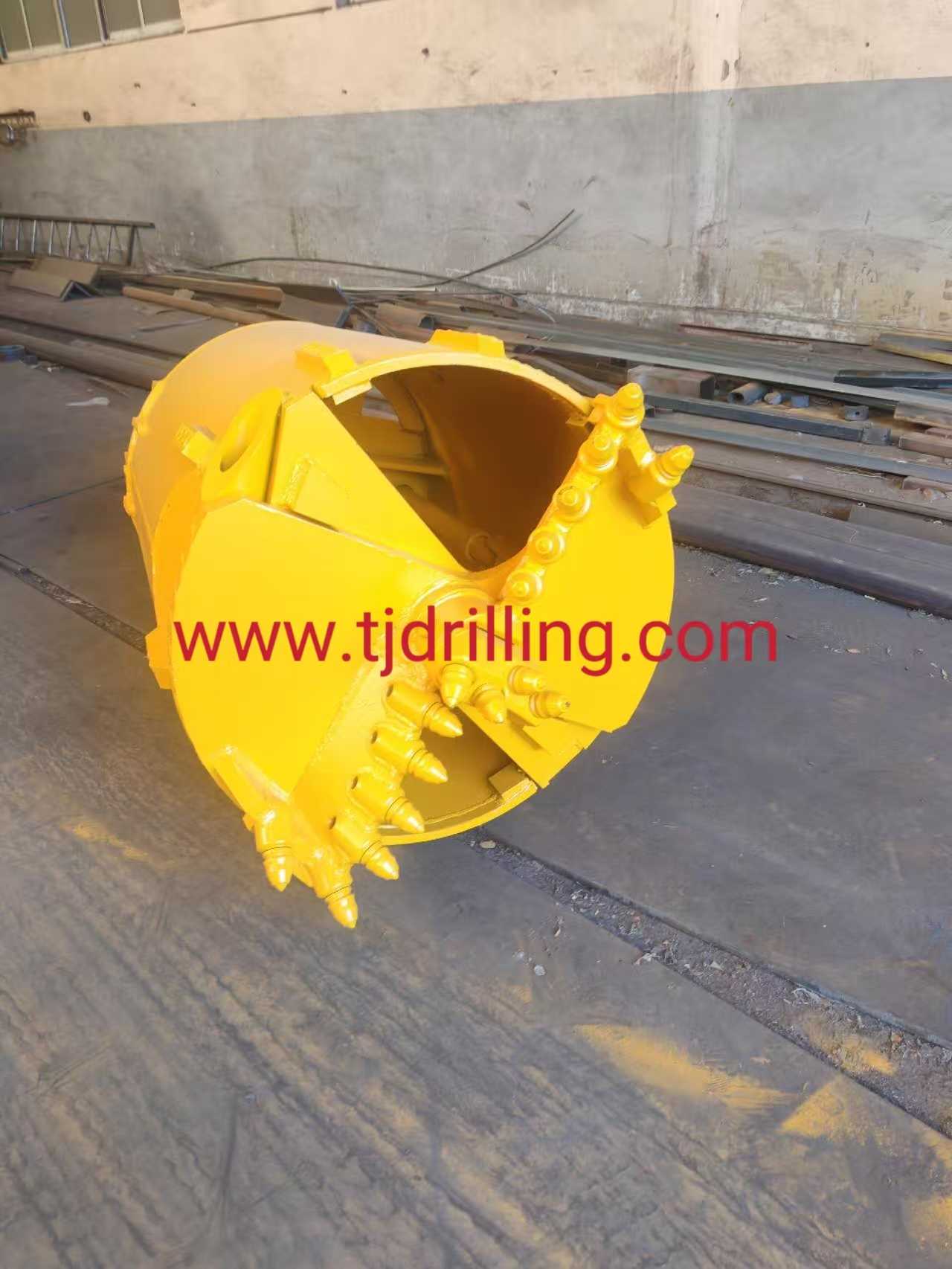

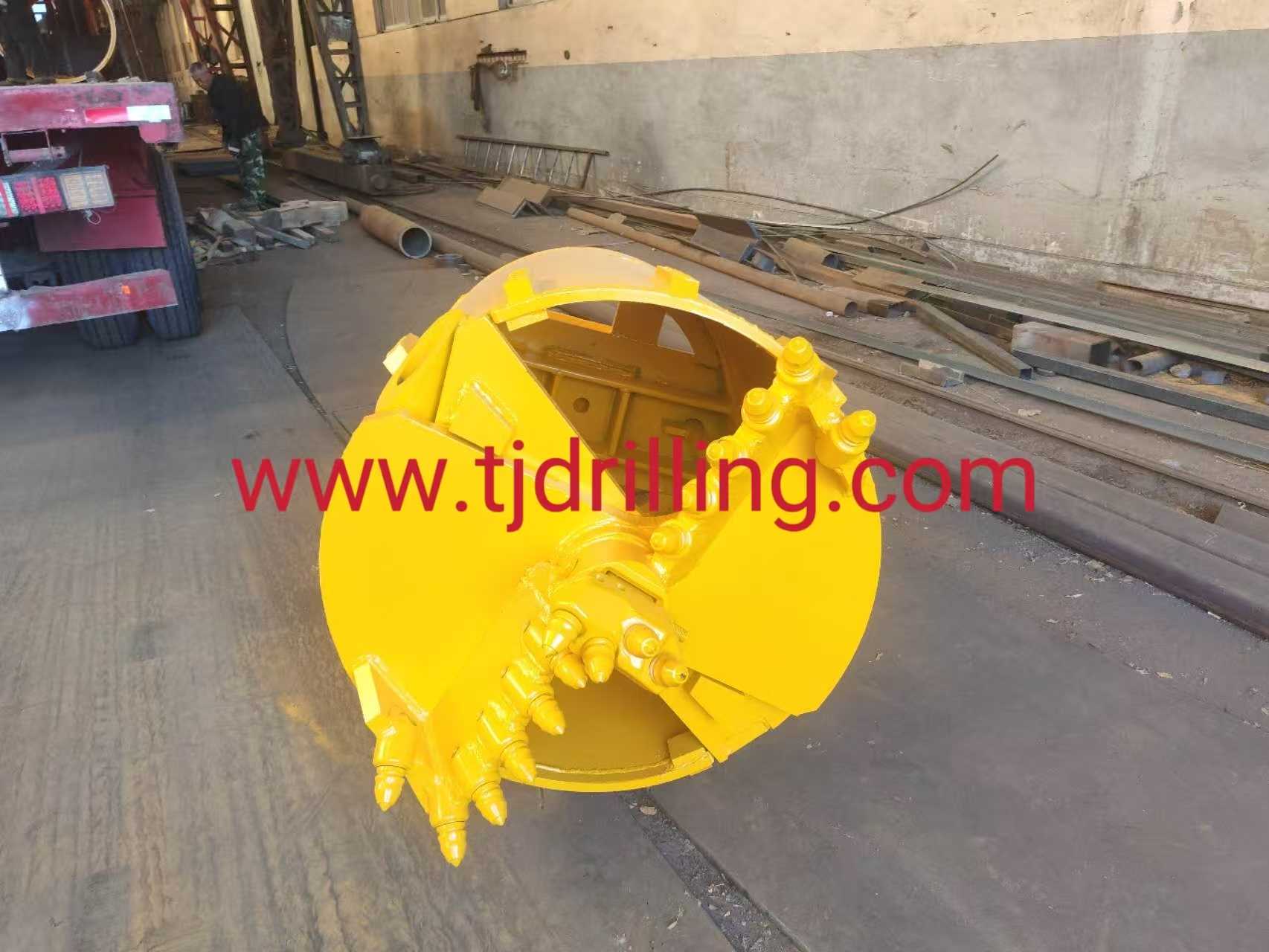

Tianjin huachang xingye technology co ltd Rock Bucket
Main application:-double cut Rock Bucket, used for cutting soft to medium hard rock fractured rock formation combined with low fines and coarse soil; decompressed rock formations.
DCRB is recommended in un uncased bores,
for bigger diameters.
Features:-
Kelly box: 130-150-200 - other available upon request
Teeth: round shank bits B47K22H or B40K12 other available upon request
Single Bottom with hinge wing plate to protect the drilled soil inside the bucket.
Fishtail pilot bit
Opening system: Automatic or manual
double system - available upon request
Wear protection: hard facing (standard)
Diameter:600~3000(mm)
We have a whole range of rock buckets developed according to the different drilling rig sizes and capacities
| Diameter (mm) |
Bucket D1 (mm) |
Height H (mm) |
Bucket height H1 (mm) |
Flat teeth N.O. | Bullet teeth NO. |
| 600 | 540 | 2000 | 1200 | 2 | 10 |
| 800 | 700 | 2000 | 1200 | 4 | 14 |
| 1000 | 900 | 2000 | 1200 | 6 | 18 |
| 1200 | 1100 | 2000 | 1200 | 7 | 20 |
| 1500 | 1400 | 2000 | 1200 | 9 | 28 |
| 1800 | 1700 | 2000 | 1000 | 11 | 32 |
| 2000 | 1900 | 1600 | 800 | 13 | 34 |
| 2200 | 2100 | 1600 | 800 | 15 | 36 |
| 2500 | 2400 | 1500 | 700 | 17 | 40 |
| 3000 | 2900 | 1500 | 700 | 21 | 46 |
Tianjin huachang xingye technology co ltd
