Cfa coupling 254mm usd on bauer-bg28 500mm fdp auger for full displacement pile
tianjin huachang xingye technology co ltd
In the geotechnical tool ecosystem, the 254 mm coupling (or connector) is the standard, heavy-duty hexagonal or round-keyed joint system utilized for small-to-medium diameter string configurations. It serves as the mechanical connection interface for CFA (Continuous Flight Auger) strings, FDP (Full Displacement Pile) drill pipes, and SCM / SMW (Soil Mixing Wall) tools.
1. Equipment & Diameter Compatibility
The 254 mm connection is engineered to balance torque transmission capability with internal concrete flow requirements.
Auger String Sizes: It is most commonly paired with CFA auger strings ranging from $\varnothing$ 450 mm to 610 mm (and occasionally up to 630 mm). Larger setups (e.g., 770 mm or 880 mm augers) typically step up to the heavier 368 mm Bauer- coupling.
Rig Compatibility: Tools utilizing the 254 mm connector are built to match the torque envelopes of Bauer-BG-series rotary drilling rigs (like the BG 20 H, BG 24 H, or BG 28 H) and RTG multi-utility piling rigs (such as the RG 16 T, RG 19 T, and RG 21 T).
2. Core Technical Anatomy
The 254 mm assembly consists of a male and female pair engineered for quick on-site connection and maximum structural rigidity under massive crowd and torque forces.
|
Component |
Engineering Details |
|

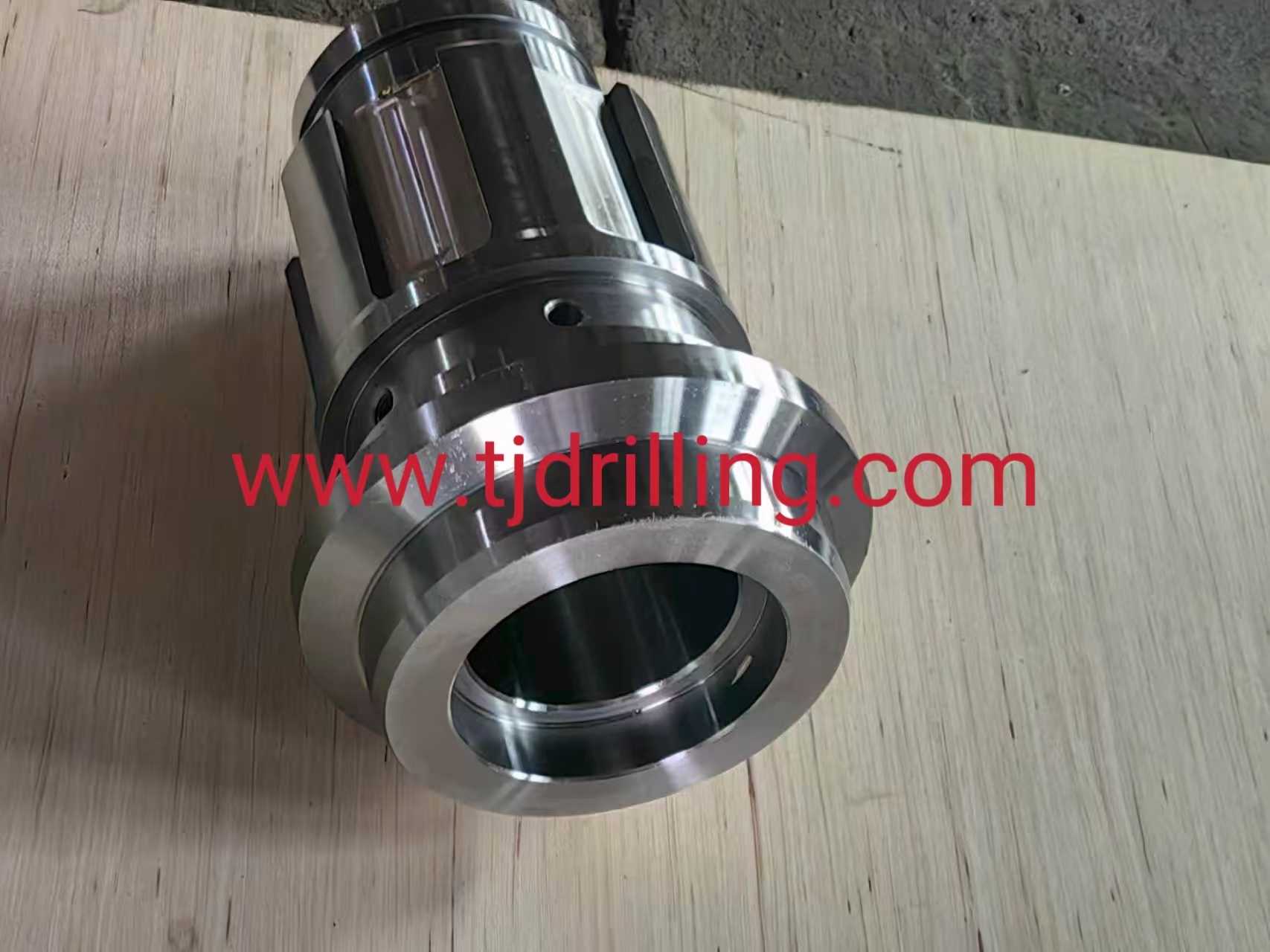

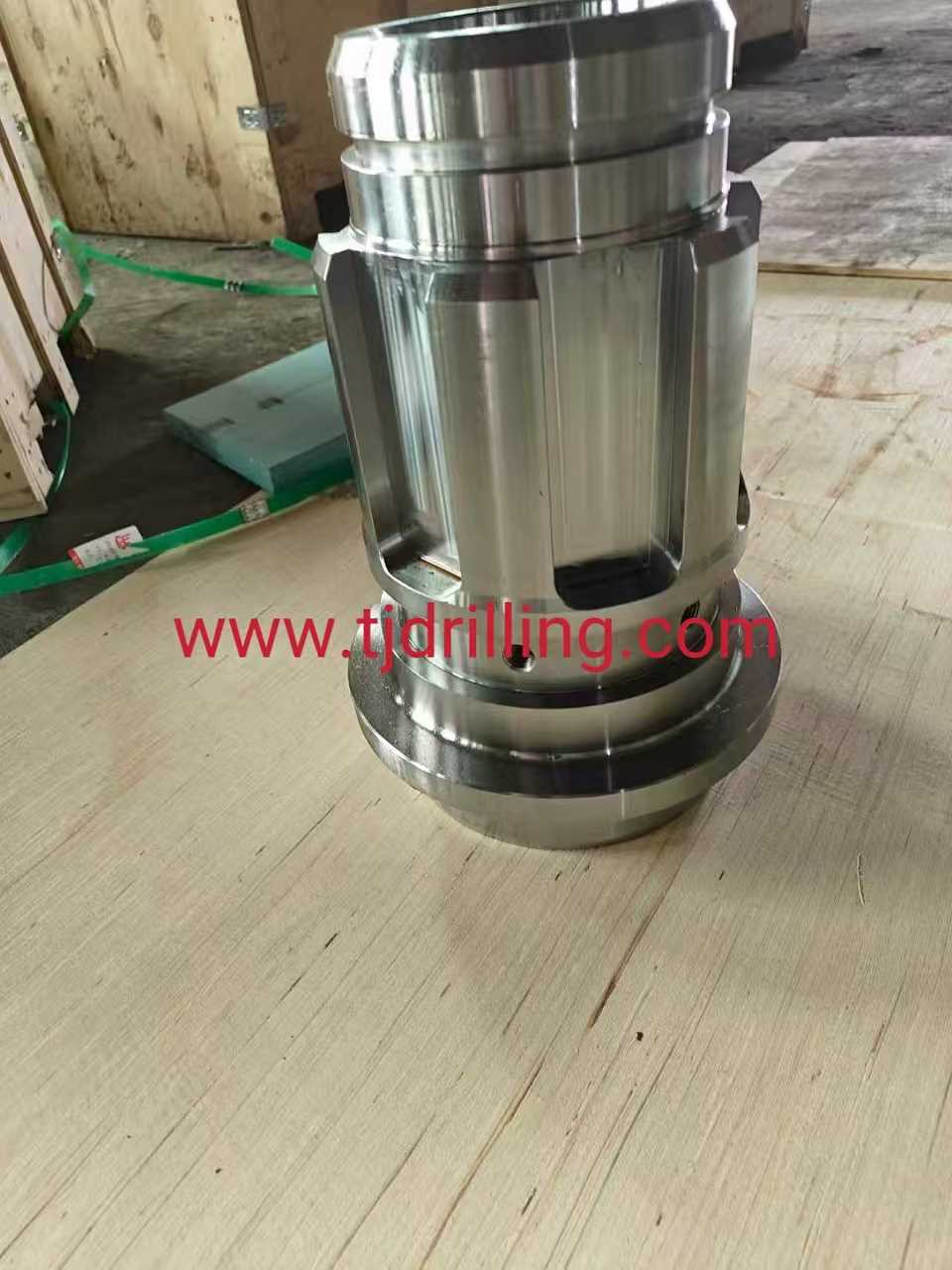

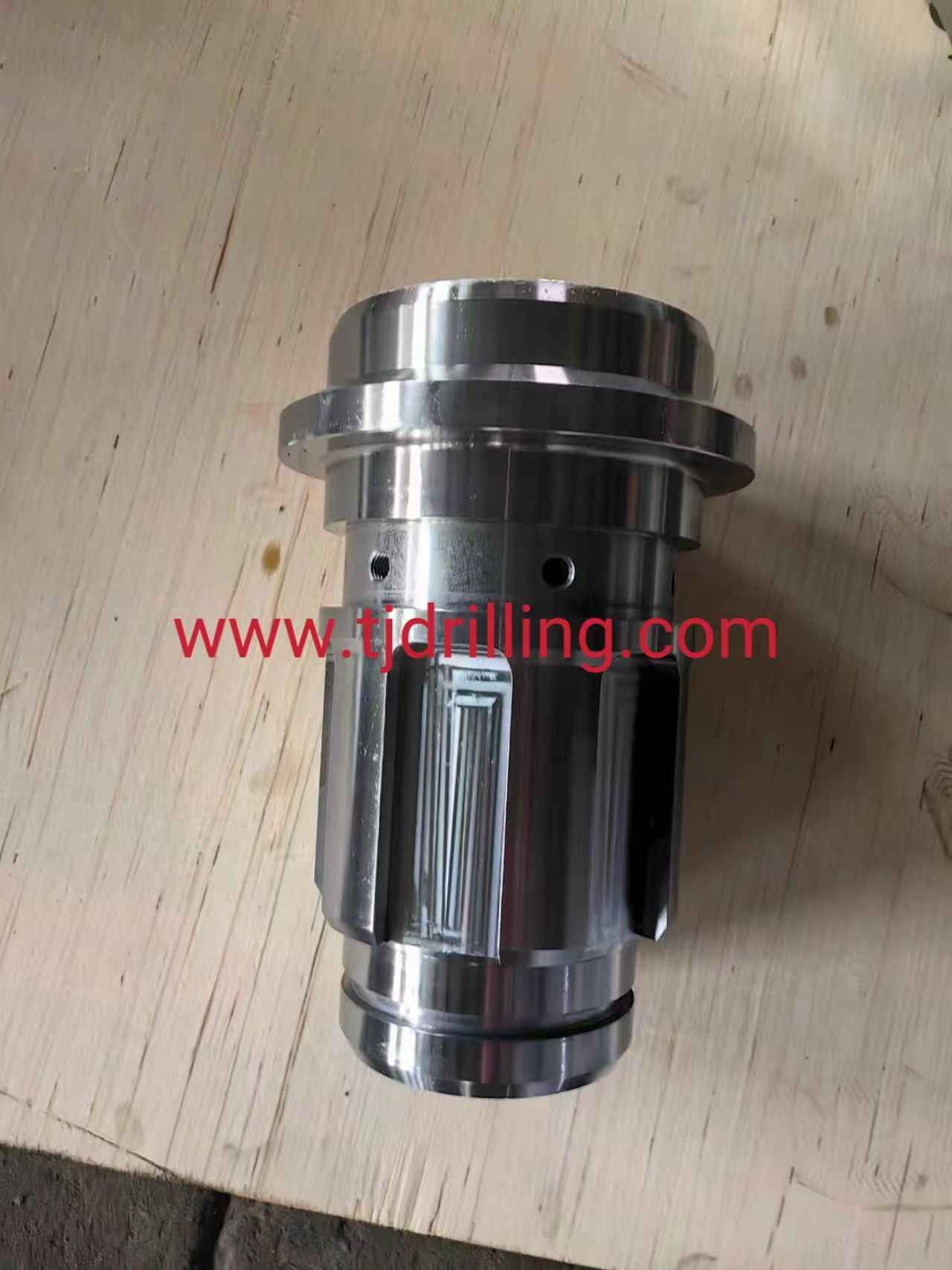

Male Connector |
Precision-machined solid or thick-walled neck that slides into the receiving joint. Features internal pathways for concrete/grout delivery. |
|

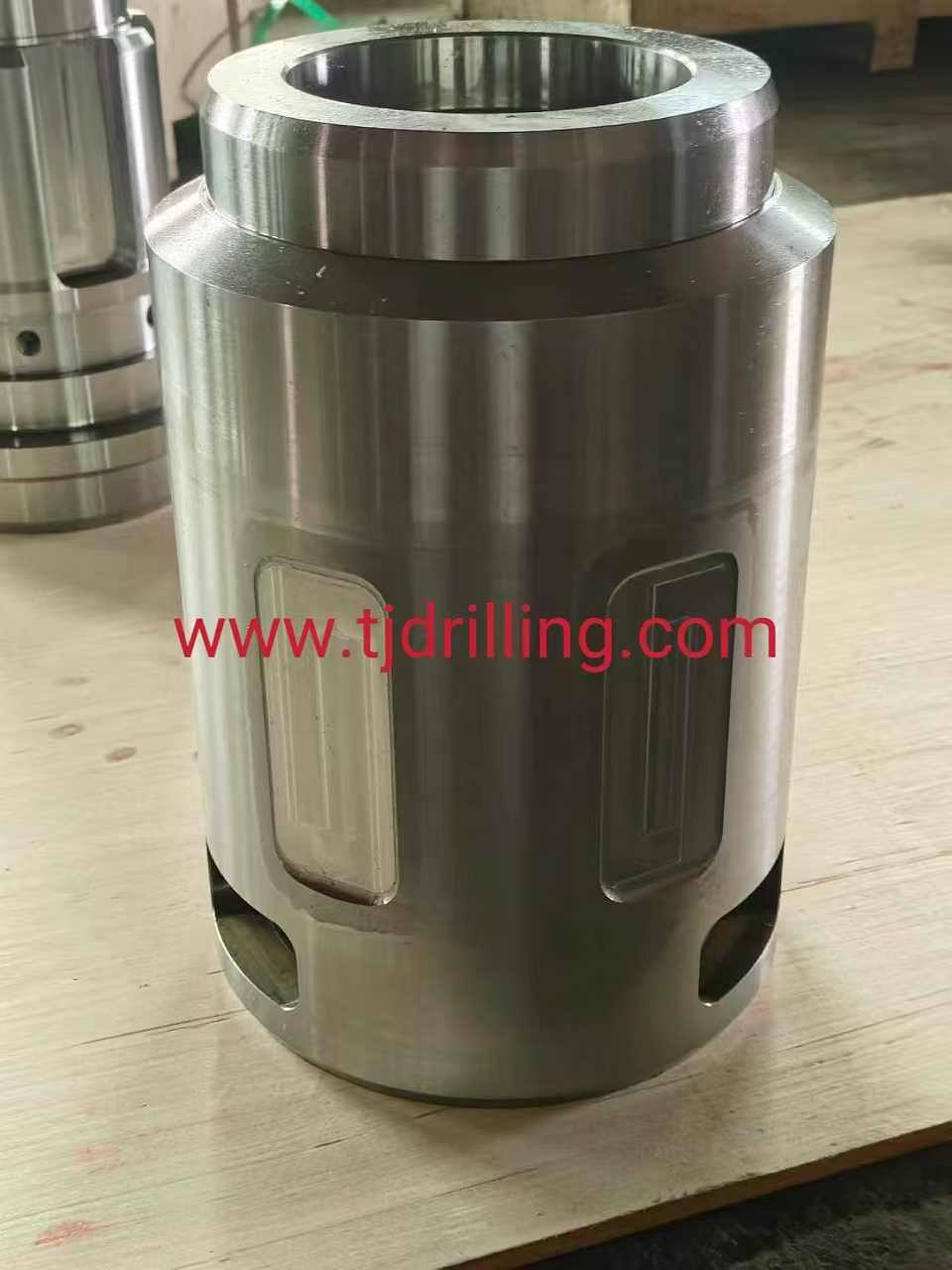

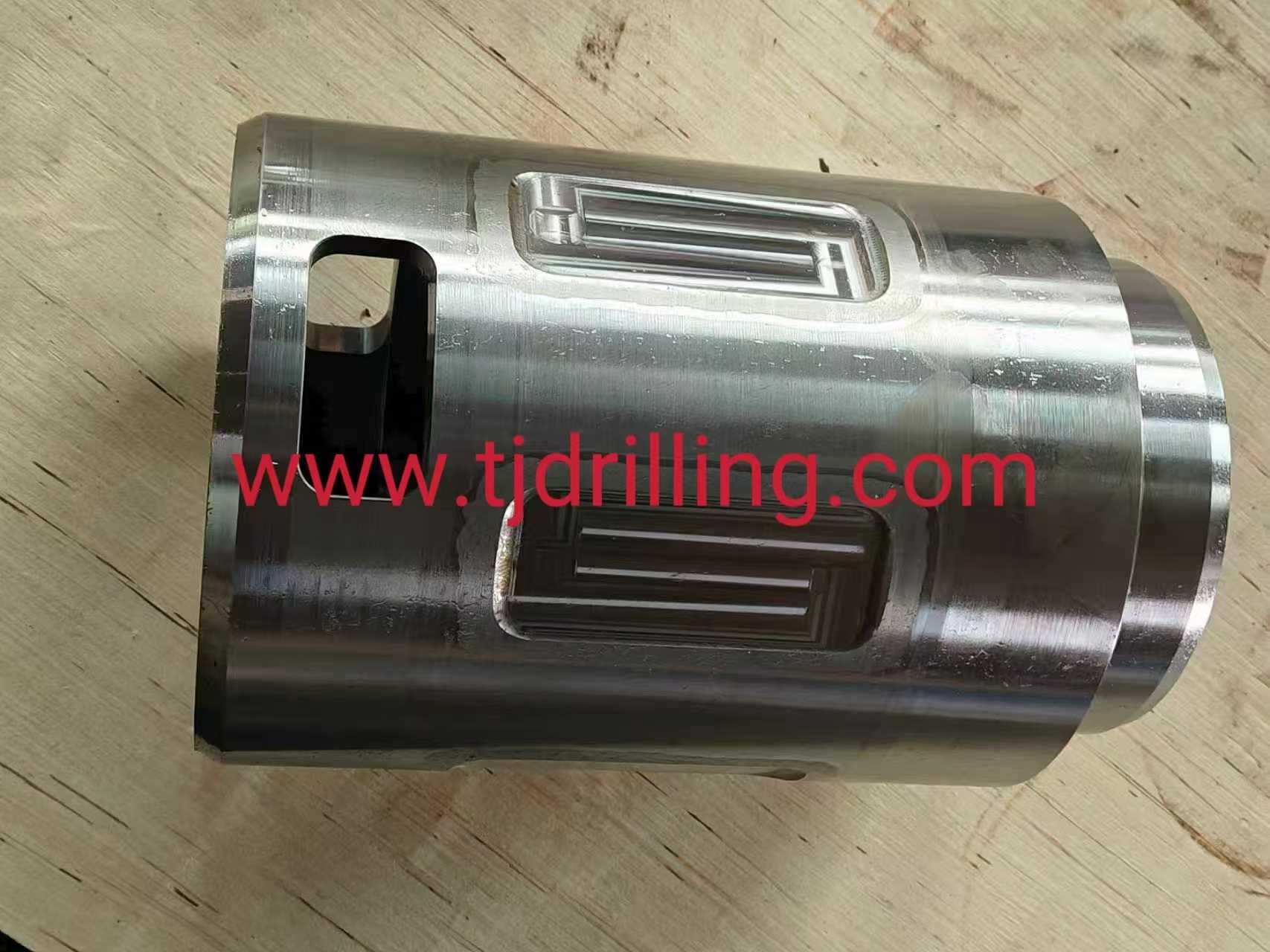

Female Socket |
Heavy-walled reinforced sleeve welded to the core tube of the CFA auger or drill pipe. |
|
Locking Mechanism |
Uses a high-tensile joint pin (locking pin) arrangement to prevent uncoupling or shifting during counter-rotation or extraction. |
|
Sealing System |
High-durability internal O-rings designed to withstand high concrete pumping pressures and prevent slurry ingress from the borehole. |
3. Application Variants
Depending on your exact tool string, the 254 mm specification applies to a few different components:
CFA Augers: Applied directly to the core tube of the flighting sections (e.g., 3-meter, 6-meter, or 10-meter extension strings) and the drilling heads.
FDP Drill Pipes: Used on the extension stem above the displacement body to transfer high crowd forces and torque deep into the ground.
SMW Triple-Axis Paddles: Found on multi-shaft mixing augers (like the SMW 370 mm or 550 mm sets) to connect the driving stem to the rig's multi-gear box.
Operational Check: Always verify the seal integrity of the O-rings inside the 254 mm female socket prior to lowering the string. A damaged seal can allow pressurized concrete to bleed into the joint seams, jamming the locking mechanism and severely complicating tool teardown at the end of the shift.
