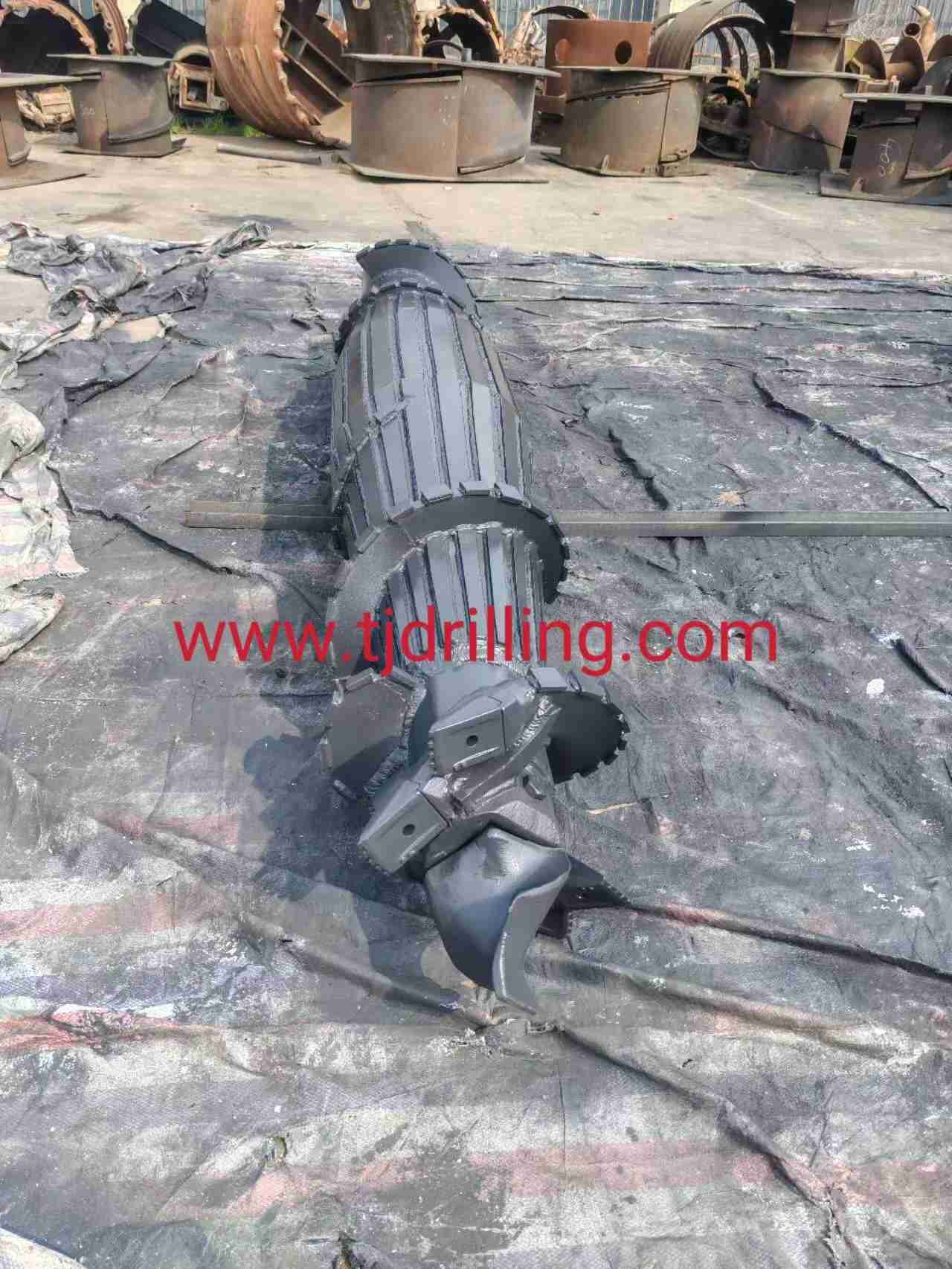

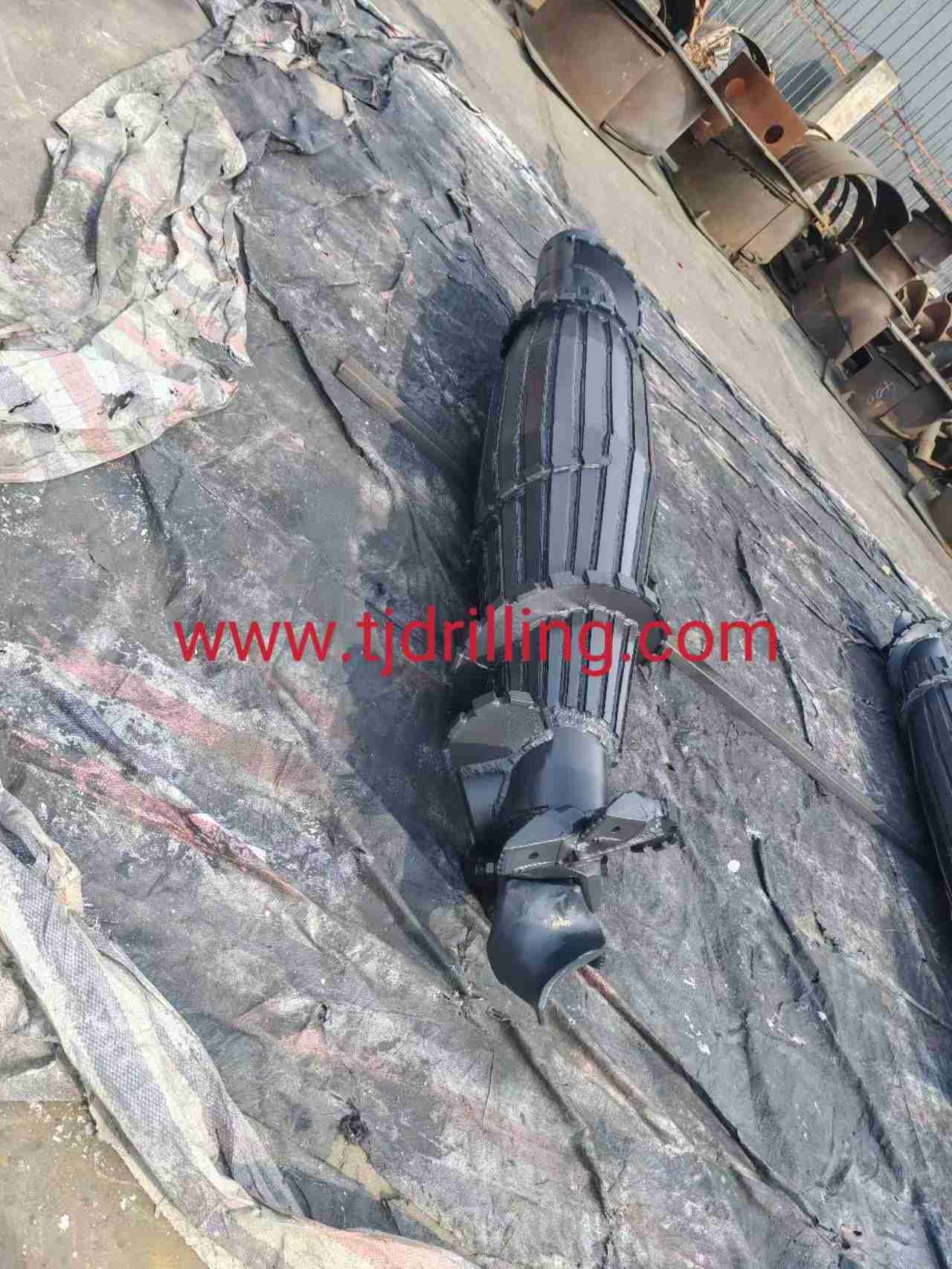

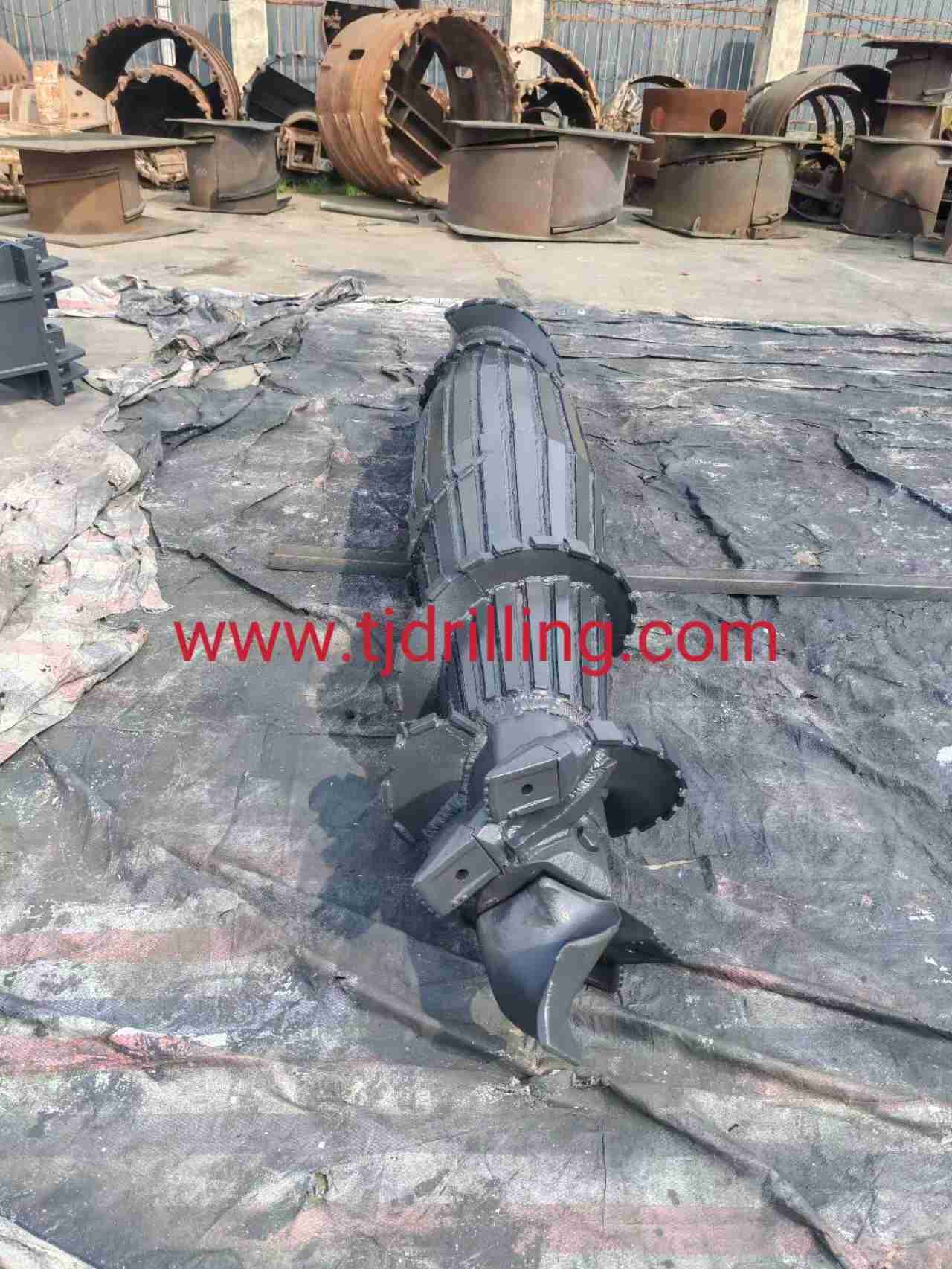

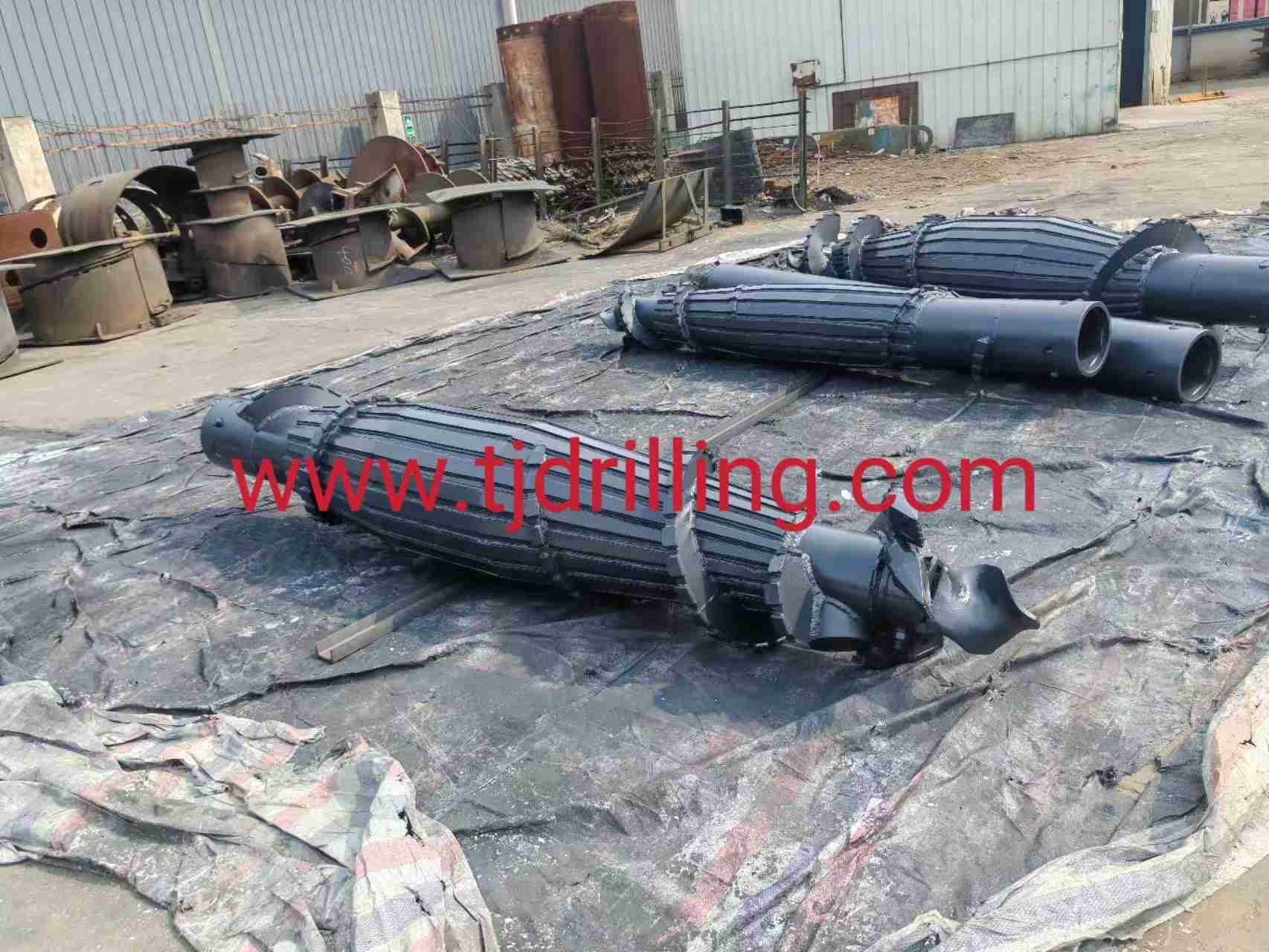

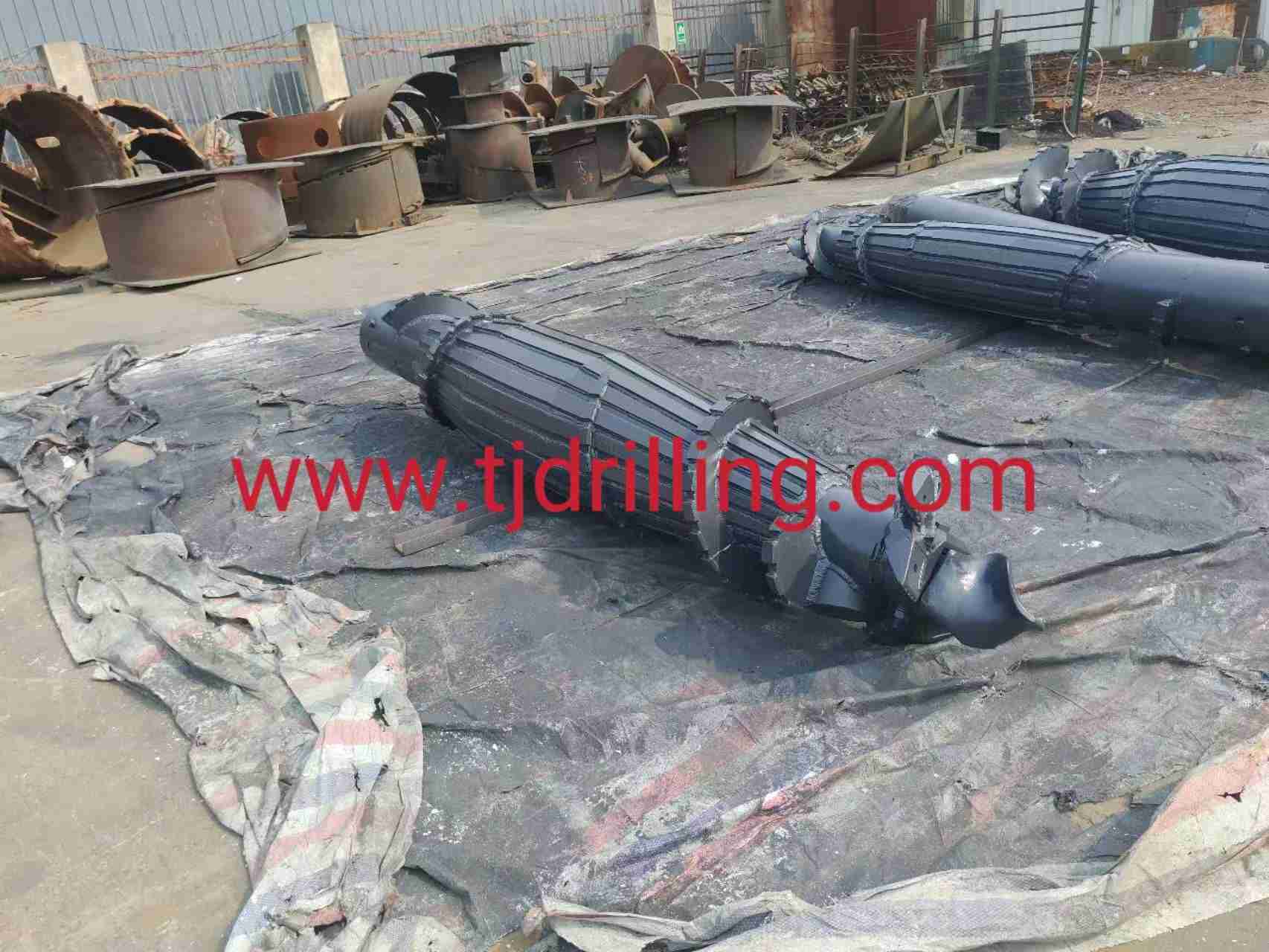

Full Displacement Pile Auger 500mm with Soilmec Cfa Coupling Xhd5 Match Soilmec
详细信息
500MM FDP auger with soilmec cfa coupling xhd5 match soilmec sr65 drill rig for full displacement pile foundation workFULL DISPLACEMENT PILE AUGER 500mm with soilmec fdp coupling xhd5 match soilmec sr60 drill rig for fdp pile
500mm fdp auger tools with soilmec cfa coupling xhd5 match soilmec sr70 drill rig for full displacement pile
500mm fdp tools with soilmec cfa coupling xhd5 match soilmec sf65 drill rig for full displacement pile
300mm FDP auger with soilmec cfa coupling hd4 match soilmec sr45 drill rig for full displacement pile foundation work
400mm FDP auger with soilmec cfa coupling hd5 match soilmec sr45 drill rig for full displacement pile foundation work
500MM FDP auger with soilmec cfa coupling xhd5 match soilmec sr75 drill rig for full displacement pile foundation work
Fdp drilling string can produce according to your requirement for diameter length and coupling
Full Displacement piles are bored cast in situ
concrete piles constructed by advancing a
displacement boring tool into the ground with
a rotary drilling rig using both torque and
crowed force.
The technique is ideally suited for a wide
spectrum of soil condition ranging from
sandy gravel, sand, silt and clay to soft
organic soils, so long as the soil is displaceable.
The particular advantage of Full Displacement Pile is the relatively simple technology
where no temporary casings are used.
While the full displacement auger is screwed
into the ground with the lower opening
plugged by a bottom plate the soil gets completely displaced and thus compacted.
The boreholes stays dry without any excavation is taking place. This silent and vibration
on free drilling method is highly suitable for
jobs where the existing ground water table
cannot be disturbed or if the soil is contaminated and an exchange of the contaminated
fdP Standard: a hollow steam auger
displaces the material of the pile diameter
laterally into the adjacent ground,
after reaching final depth, the auger is
retracted (it is rotated in drilling direction)
whilst simultaneously concreting through
the hollow stem and subsequently the
reinforcement cage is installed using a
vibrodriver.
FDP tool can be manufactured as one piece
or in two parts so that with an extended
starter auger is possible to drill through
thinner non displaceable formations.
Main technical details are indicated below
Hollow Stem with single or double wall
Pipe steel quality Stem outer diameter and its thickness on
request
Stem inner diameter and its thickness on
request
Couplings size on request
FDP with Male or Female coupling on
Pilot bit on request
Concrete opening system with chain,
mechanical system or lost plate
Different usable lengths are available
on request
