1300mm casing oscillator hydraulic type connect foundation rotary drill rig for cased bored pile foundation work with euro tier5 emissions diesel engine power pack
1300mm shorty version hydraulic casing oscillator connected on rotary drill rig used for cased bored pile foundation work
1300mm shorty version hydraulic casing oscillator connected on bau-er rotary drill rig used for cased bored pile foundation work
1300mm shorty version hydraulic casing oscillator connected on soilmec rotary drill rig used for cased bored pile foundation work
1300mm shorty version hydraulic casing oscillator connected on lieb-herr rotary drill rig used for cased bored pile foundation work
1300mm shorty version hydraulic casing oscillator connected on san-y rotary drill rig used for cased bored pile foundation work
1300mm crane type hydraulic casing oscillator connected on crane used for cased bored pile foundation work
1500mm casing oscillator hydraulic type connect foundation rotary drill rig for cased bored pile foundation work with euro tier5 emissions diesel engine power pack
1500mm shorty version hydraulic casing oscillator connected on rotary drill rig used for cased bored pile foundation work
1200mm casing oscillator hydraulic type connect foundation rotary drill rig for cased bored pile foundation work with euro tier5 emissions diesel engine power pack
1200mm shorty version hydraulic casing oscillator connected on rotary drill rig used for cased bored pile foundation work
2000mm casing oscillator hydraulic type connect foundation rotary drill rig for cased bored pile foundation work with euro tier5 emissions diesel engine power pack
2000mm shorty version hydraulic casing oscillator connected on rotary drill rig used for cased bored pile foundation work
|
MODEL： |
BCG1300D |
REMARK |
|
OSCILLATE DIAMETER (mm) |
600～1300 |
|
|
MAX LIFT FORCE (kN) |
1800 |
|
|
OSCILLATE ANGEL (°) |
18° |
|
|
TORQUE (KN·m) |
1950 |
|
|
STOKE（mm） |
450 |
|
|
CLAMP FORCE（kN） |
1600 |
|
|
OVER SIZE(L×W×H)(mm) |
3300×2350×1600 |
|
|
WEIGHT (T) |
12 |
2,SPECIFICATION OF POWER PACK
|
MODEL： |
DL160 |
REMARK |
|
DIESEL ENGINE MODEL： |
QSB4.5-C130 |
|
|
DIESEL ENGINE POWER kW |
100 |
|
|
DISCHARGE l/min |
150 |
|
|
OPERATION PRESSURE：MPa |
25 |
|
|
OIL TANK CAPACITY L |
800 |
|
|
OVERSIZE (L×W×H)(mm) |
3000×1900×1700 |
|
|
WEIGHT (kg) |
2500 |
NOT INCLUDE HYDRAULIC OIL |

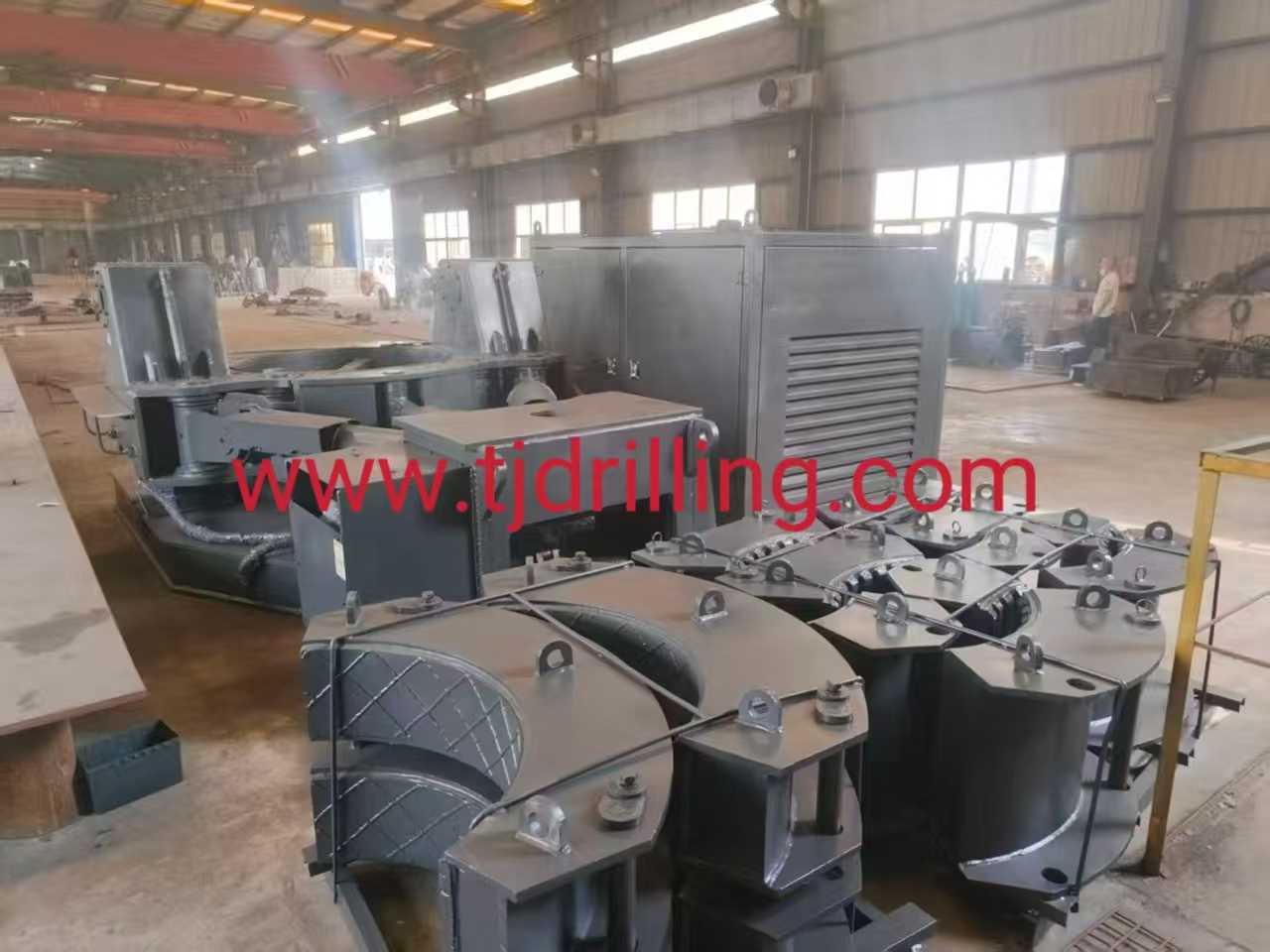

Due to their compact construction, the hydraulic casing oscillators are designed as front-end attachments to rotary drilling rigs. When mounted to the under carriage of the drilling rig, the torque can be transferred to the casing string. In the case of connections with an additional adapter, the weight of the drilling rig can also be activated as a reaction force to the vertical forces generated during installation of the casings. In the case of connections without an adapter, this is realized via the rotary drive and crowd. The sliding box allows casing oscillators to be installed on a wide variety of drilling rigs. The clamping collar is made up of different segments. This construction ensures the forces generated are transferred evenly to the casing. The casing oscillators can easily be adapted on site for use with smaller casing diameters by appropriate sets of reduction inserts. The hydraulic power supply is provided by the on-board hydraulic system of the drilling rig. As an alternative, the casing oscillator can also be powered by an external hydraulic power pack. It can then be operated by remote control independently from the drilling rig.
