How to select cfa auger ?600mm cfa auger with soilmec cfa coupling xhd5

Selecting the right CFA (Continuous Flight Auger) is a balancing act between the geology of the site and the mechanical limits of your rig. If you mismatch the tool to the soil, you risk "over-flighting" (loosening the ground) or stalling the rotary.

Here is the technical breakdown for selecting the optimal auger:

1. Soil Strata Analysis

The geometry of the auger flights and the cutting head must match the dominant soil type:

• Cohesive Soils (Clay/Silt): Use an auger with a larger pitch (the distance between flights). This prevents the clay from "clogging" or balling up between the flights. A single-start cutting head is often sufficient.

• Non-Cohesive/Granular Soils (Sand/Gravel): Use a tighter pitch to help retain the soil on the flights during extraction. This prevents the soil from "flowing" back into the hole before concrete is pumped.

• Hard Strata/Weathered Rock: Requires a Heavy Duty (HD) auger with thicker flights and reinforced welding. The cutting head should be a "double-start" design to balance the torque and reduce vibration.

2. Rig Compatibility (The Torque-to-Diameter Ratio)

Every rig has a specific torque curve. When selecting an auger diameter:

• The "Rotary Limit": Ensure the rig’s maximum torque can overcome the skin friction of the auger string at full depth. A 1200mm auger in stiff clay requires significantly more "bite" and torque than an 800mm auger.

• Extraction Force: The rig must have enough winch/crowd pull-back to lift the auger when it is fully loaded with soil and fighting the suction of the fresh concrete.

• Stem Connection: Ensure the hex-coupling (e.g., 150mm, 200mm, or 250mm) matches your rig's drive joint.

3. Hollow Stem Diameter

The internal diameter of the central pipe (stem) is critical for concrete delivery:

• Standard (100mm - 125mm): Sufficient for standard grout or fine-aggregate concrete.

• Large Bore (150mm+): Required if you are using high-slump concrete with larger aggregate sizes. A larger stem reduces back-pressure on the concrete pump, lowering the risk of line blockages.

4. Cutting Head & Tooth Selection

The "business end" of the auger determines penetration speed:

Tooth Type

Best Used For

Flat Teeth (e.g., V19/V20)

General soil, soft clay, and loose sands. Easy to replace.

Bullet Bits (Tungsten Carbide)

Abrasive soils, cemented sands, and weathered rock. They "chip" the material rather than scraping it.

Pilot Bit:

Always ensure a central pilot bit is present to keep the auger centered and prevent "walking" during the start of the hole.

5. Auger Length & Extensions

• Single Flight: Most standard CFA augers come in 6m, 9m, or 12m sections.

• The "Sleeve" Extension: If your rig (like an SR-65) needs to reach its maximum depth, you may need a jib extension or a sleeve that allows the auger to pass higher into the mast. Ensure your auger string is rated for the total weight when fully extended.

Pro-Tip: The Auger Cleaner

When selecting an auger, also consider the Auger Cleaner (Mechanical or Hydraulic). For sticky clays, a high-performance "star" cleaner is mandatory to strip the soil as the auger is extracted, otherwise, you risk "concreting" the top of your rig as the soil falls off the flights.

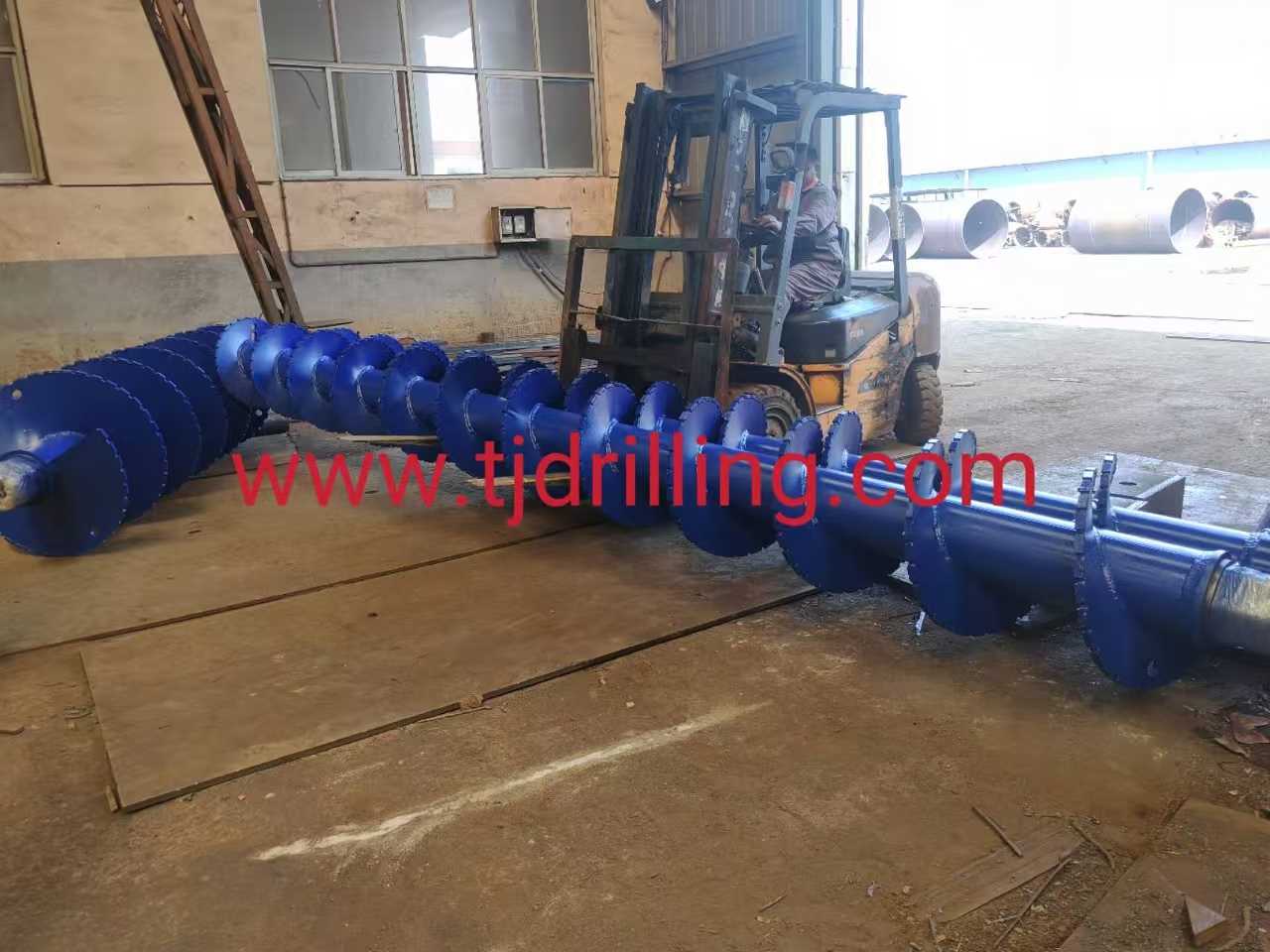

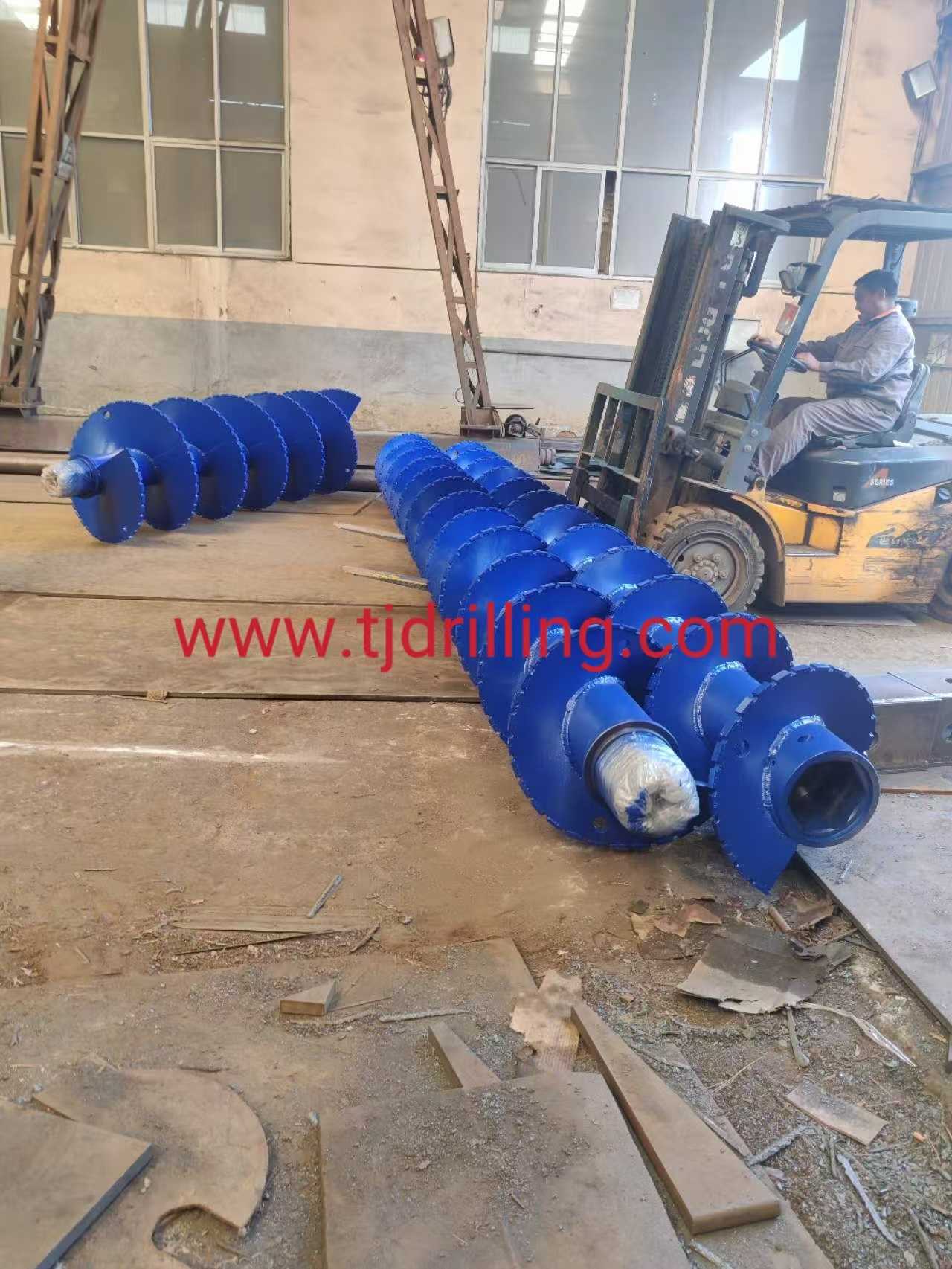

600MM  CFA  AUGER  WITH  SOILMEC  cfa coupling xhd5 used on soilmec  sr45  cfa  rig  for  cfa  pile600MM  CFA  AUGER  WITH  SOILMEC  cfa  coupling  hd4 used on soilmec sr30  cfa rig for  cfa  pile600MM  CFA  AUGER  WITH  SOILMEC  cfa  coupling  hd5 used on soilmec sr40  cfa rig for  cfa  pile600MM  CFA  AUGER WITH SOILMEC  cfa  coupling  hd5 used on soilmec  sf55  cfa rig for  cfa  pile600MM  CFA  AUGER  WITH  SOILMEC  cfa  coupling  hd5 used on soilmec  sf65  cfa rig for  cfa  pile

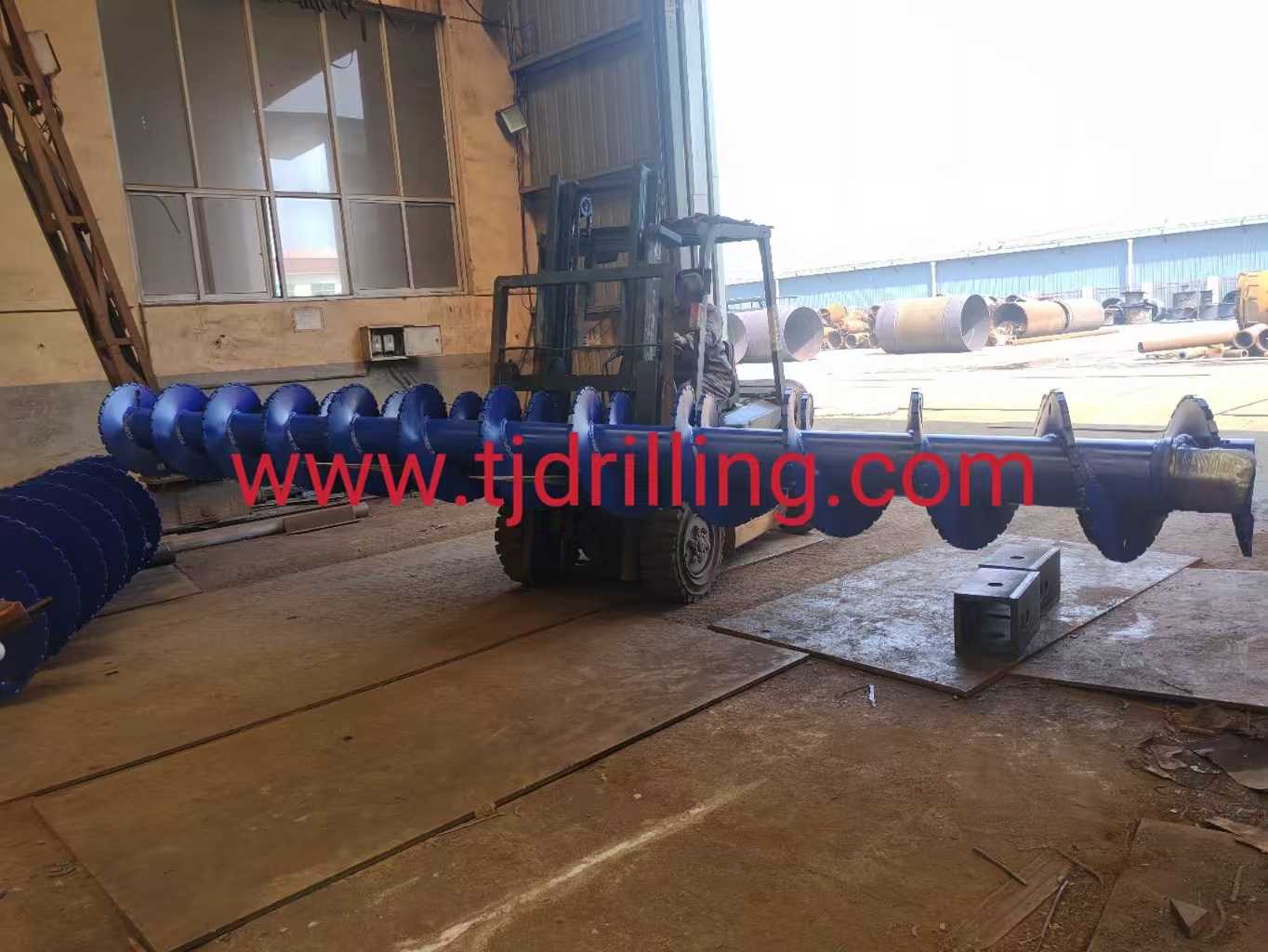

600mm cfa auger with soilmec cfa hexagonal joint xhd5 used on soilmec sr65 drill rig for Continuous Flight Auger CFA piles

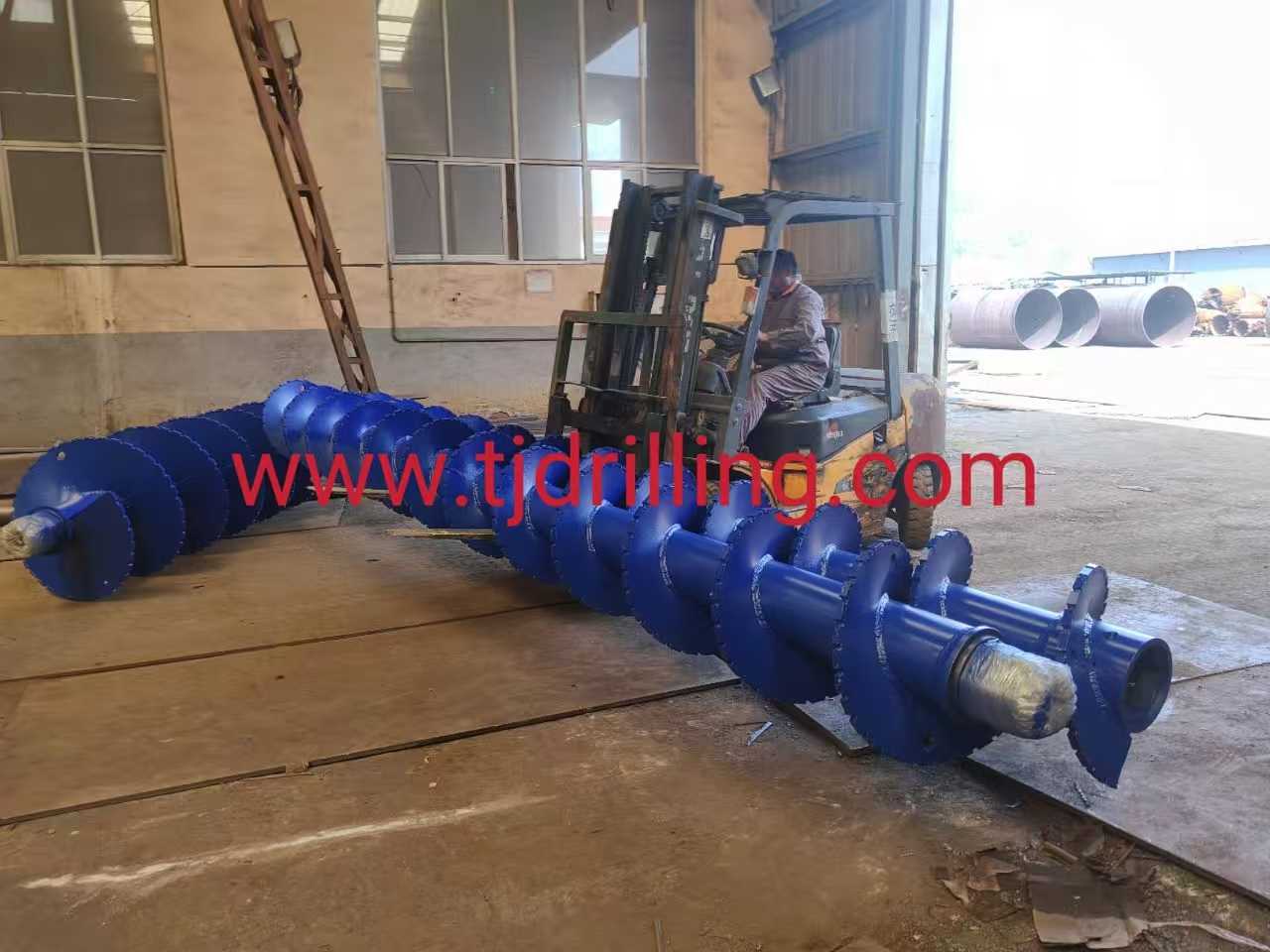

600mm Continuous Flight Auger WITH  SOILMEC  cfa  coupling  hd5 used on soilmec  sf65  cfa rig for  cfa  pile600MM  CFA  AUGER  WITH  SOILMEC  cfa  coupling  hd5 used on soilmec  sf65  cfa rig for  cfa  pile

600MM  CFA  AUGER  WITH  SOILMEC  cfa  coupling  hd5 used on soilmec  sr65  cfa rig for  cfa  pile600MM  CFA  AUGER  WITH  SOILMEC  cfa  coupling  hd5 used on soilmec  sr70  cfa rig for  cfa  pile
