1500mm Hydraulic Casing Extractor with Diesel Engine Power Pack Used for Secant
详细信息

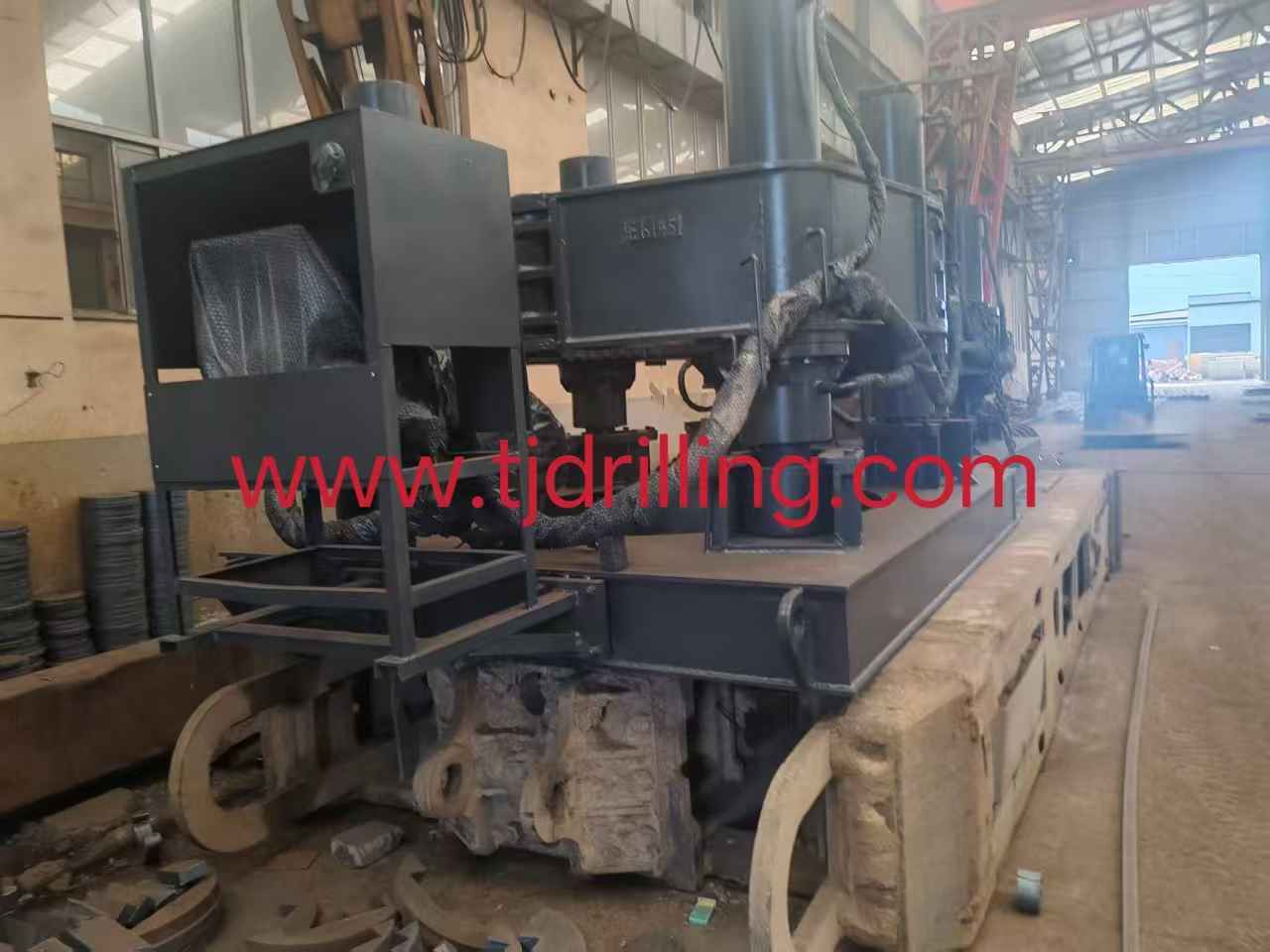

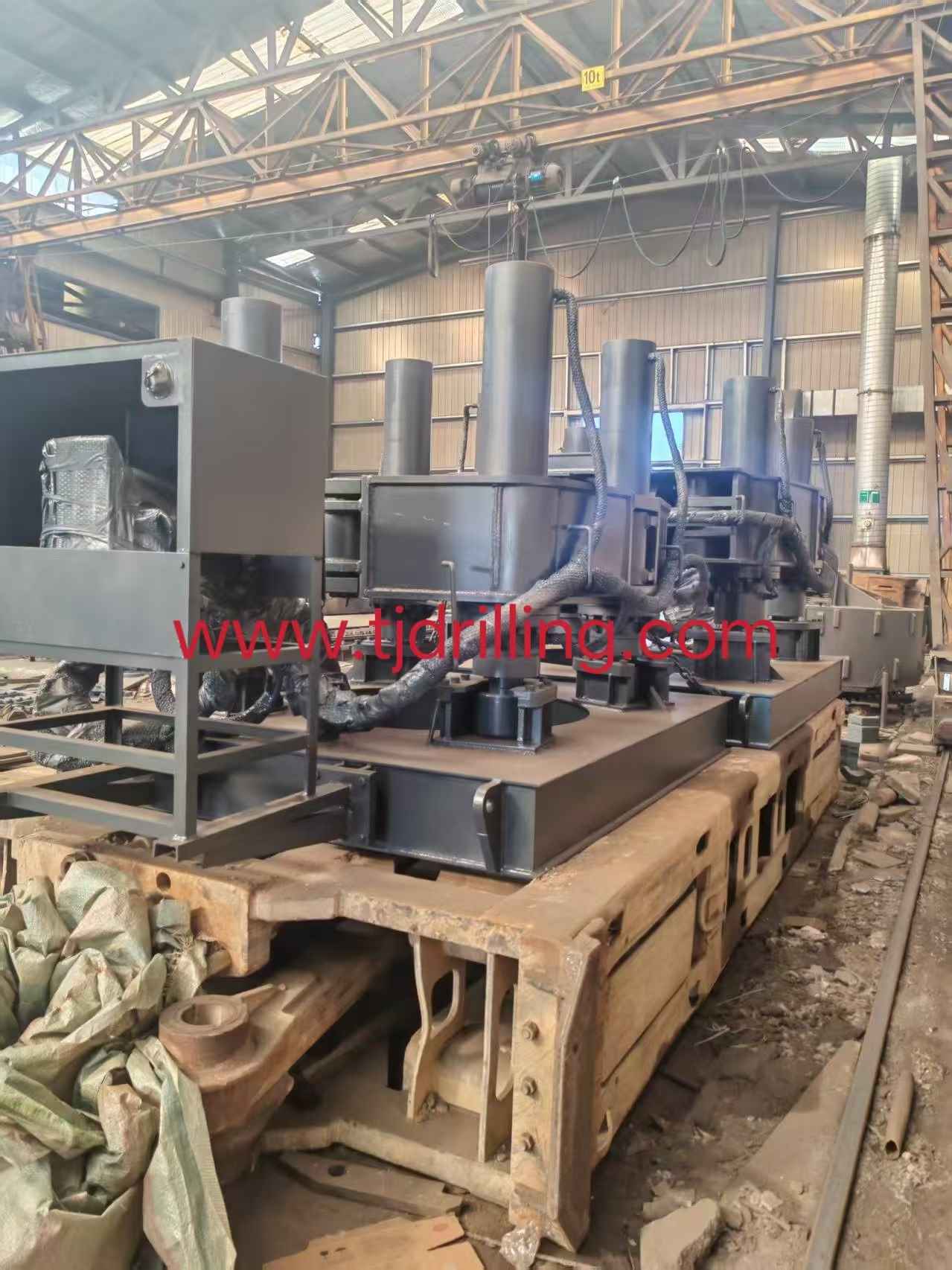

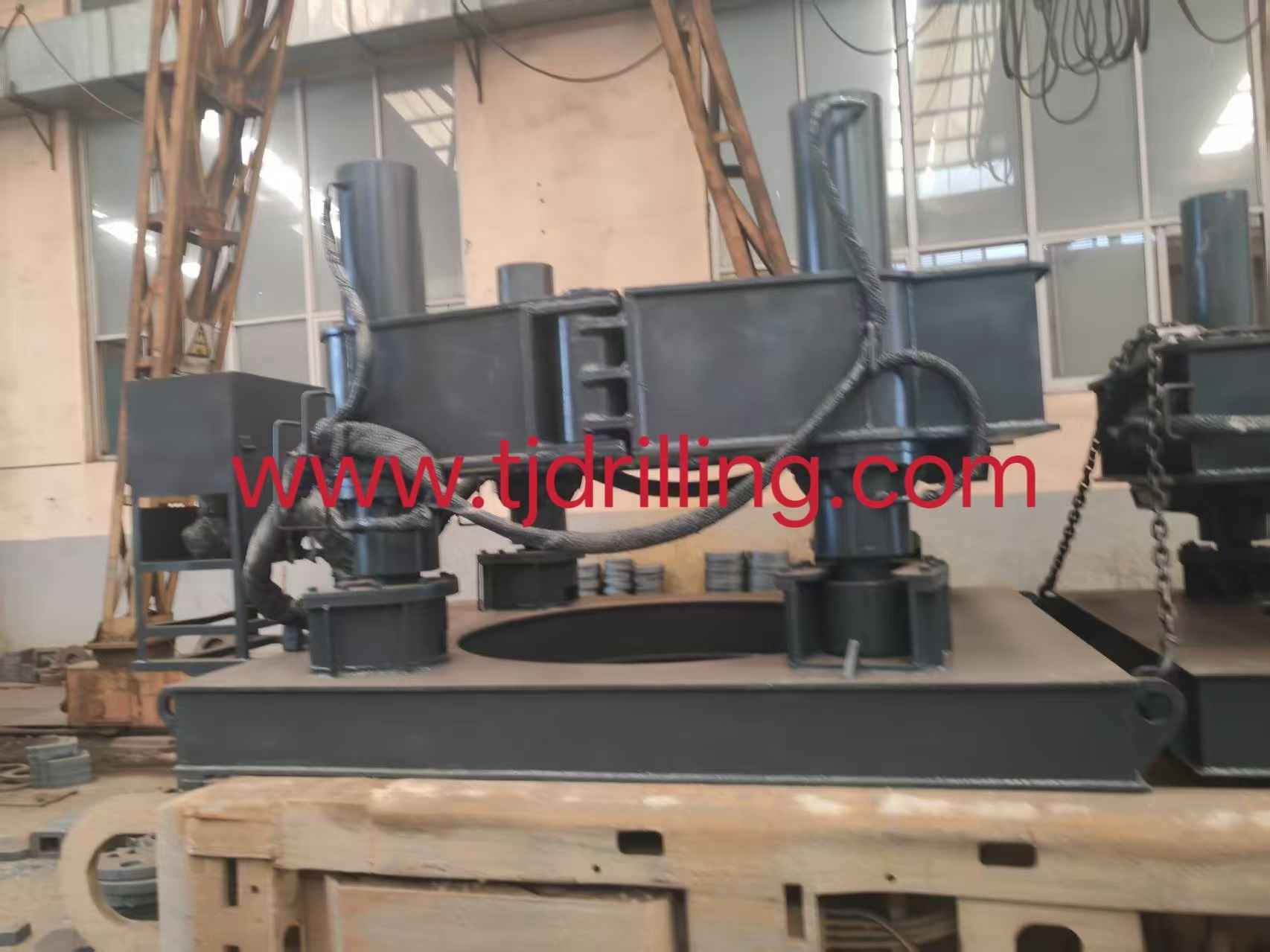

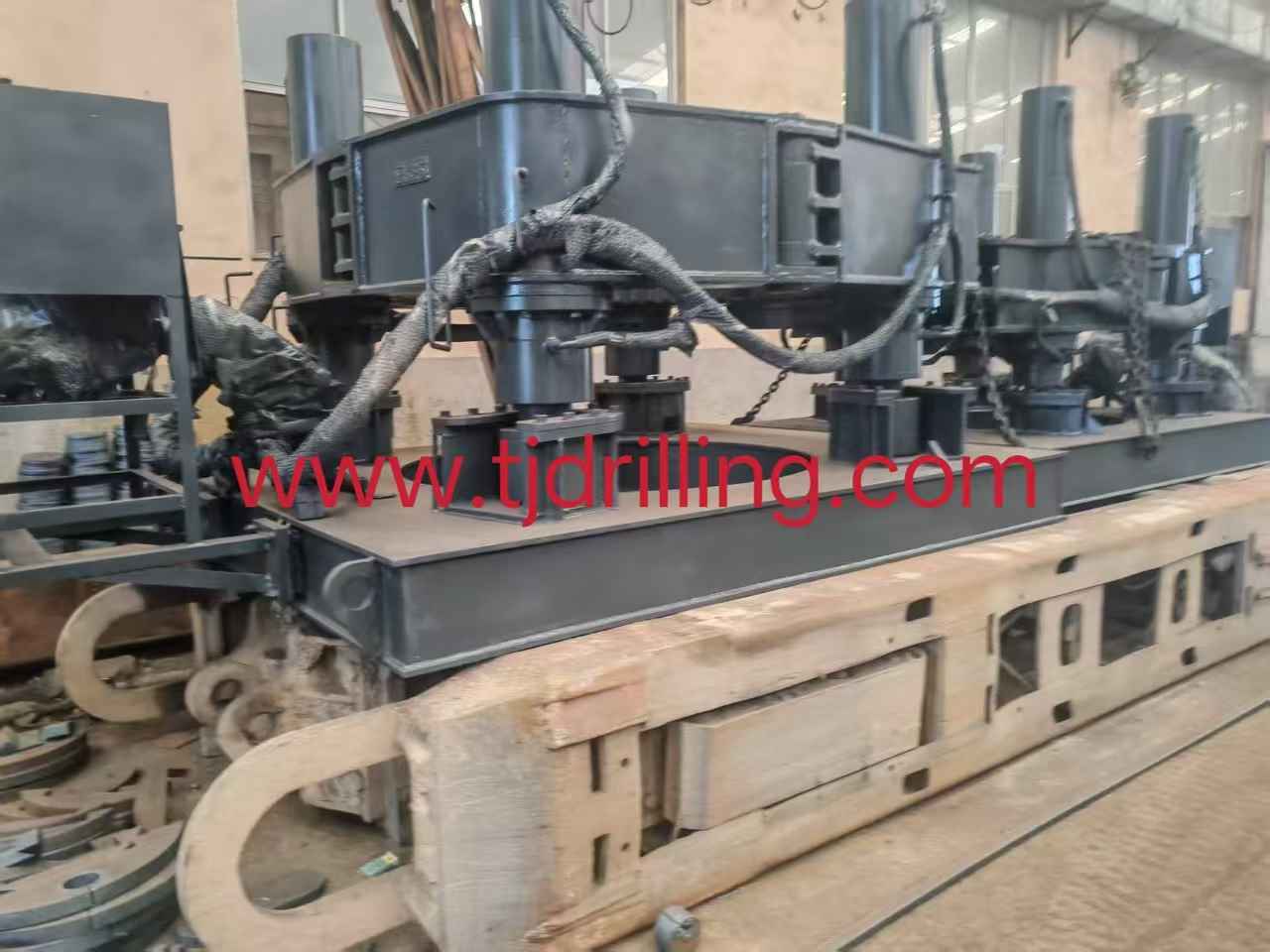

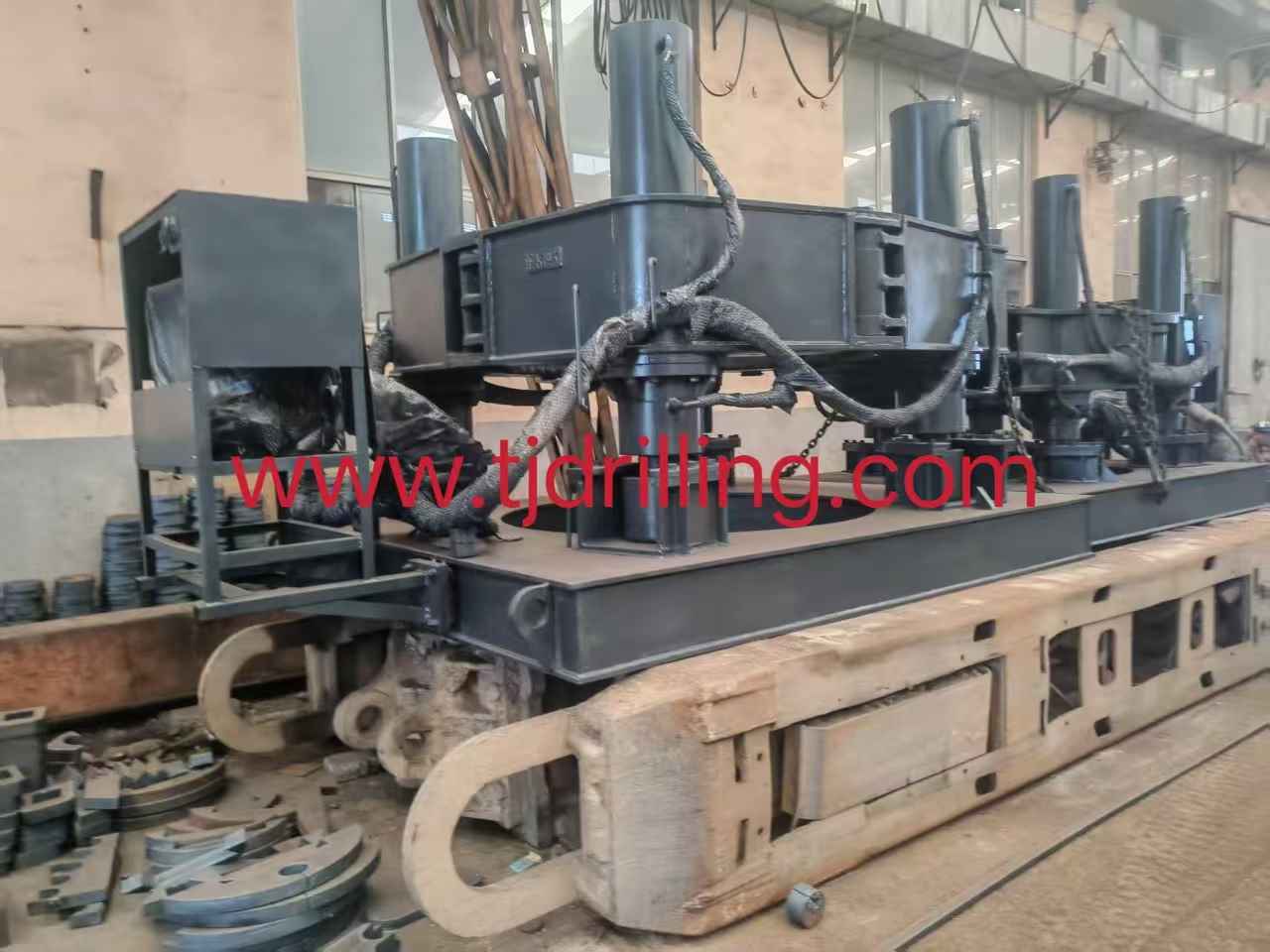

1500mm hydraulic casing extractor with diesel engine power pack used for secant pile foundation work1500mm hydraulic casing extractor with electricity motor power pack used for secant pile foundation work
1500mm hydraulic casing puller used for pull out double wall casing ,single wall casing in secant pile bored pile work
Extracting 1500mm double wall casing with 1500mm hydraulic casing extractor
A 1500mm hydraulic casing extractor (casing puller) is heavy geotechnical foundation equipment designed to clamp onto and extract temporary steel casings up to 1500 mm in diameter from bored piles, secant pile walls, and deep foundations.
It allows service contractors to free up rotary drilling rigs or crawler cranes from performing high-load extraction operations, preventing mast damage and reducing fuel/machine wear during concreting.
Typical Technical Specifications (1500mm Class)
Parameter
Standard Range / Typical Spec
Max Outer Casing Dia.
(with reduction inserts for )
Max Extraction / Lifting Force
()
()
Max Clamping Force
()
()
Jacking Cylinder Stroke
per cycle
Max Working Pressure
()
()
Total Base Weight
(extractor head)
| NAME | unit | REMARK | |
| Cylinder lift number | PC | 4 | |
| Cylinder stroke length | mm | 1000 | |
| Cylinder clamp number | pc | 1 | |
| MAX CLAMP FORCE | t | 200 | BELOW 30MPa |
| MAX CASING SIZE | mm | 1500 | |
| MAX LIFT FORCE | t | 500 | 30MPa |
| WEIGHT | kg | 8000 | |
| SizeL*W*H) | m | 3.7x2.2x2.1 | Transport size |
Tianjin huachang xingye technology co ltd
| Model | Diesel engine power | remark |
| engine | 4BTAA3.9-C100 | |
| Engine power kW | 75 | |
| Big pump discharge capacity l/min | 150 | |
| Big pump discharge capacity l/min L/min | 45 | |
| Operation pressure :MPa | 25 | |
| Oil tank capacity L | 900 | |
| Hydraulic oil grade | YB-N46 | |
| Over size (L×W×H)(mm), | 3000×2000×1700 | |
| WEIGHT (kg) | 2000 | NOT INCLUDE OIL |
Key Operational Features
Multi-Cylinder Jacking System: Uses 2 to 4 heavy-duty vertical hydraulic cylinders pushing against ground bearing plates to break casing-skin friction.
Radial Clamping Mechanism: Powered wedge or segmented jaw system to grip smooth or jointed double-wall casings without crushing the casing profile.
Power Source Compatibility: Driven via a dedicated standalone diesel/electric hydraulic power pack or directly tied into the auxiliary hydraulic lines of a base rig/crane.
Reduction Inserts (Adapter Collars): Interchangeable clamping jaw inserts allowing the same 1500mm frame to handle smaller standard sizes
Common Applications
1.
Concreting Phase in Bored Piling: Extracting temporary casing sections step-by-step as concrete is placed via tremie pipe.
2.
Secant Pile Walls: Pulling temporary casings in stiff clay, boulder beds, or high-friction strata where base rig winches lack pulling capacity.
3.
Obstruction Removal & Pipe Recovery: Recovering bound or jammed steel pipes in deep foundation applications.
