600mm Fdp Auger Wtih Cfa Coupling 25HD5 Match Soilmec Sr75 Drill Rig for Full Di
详细信息

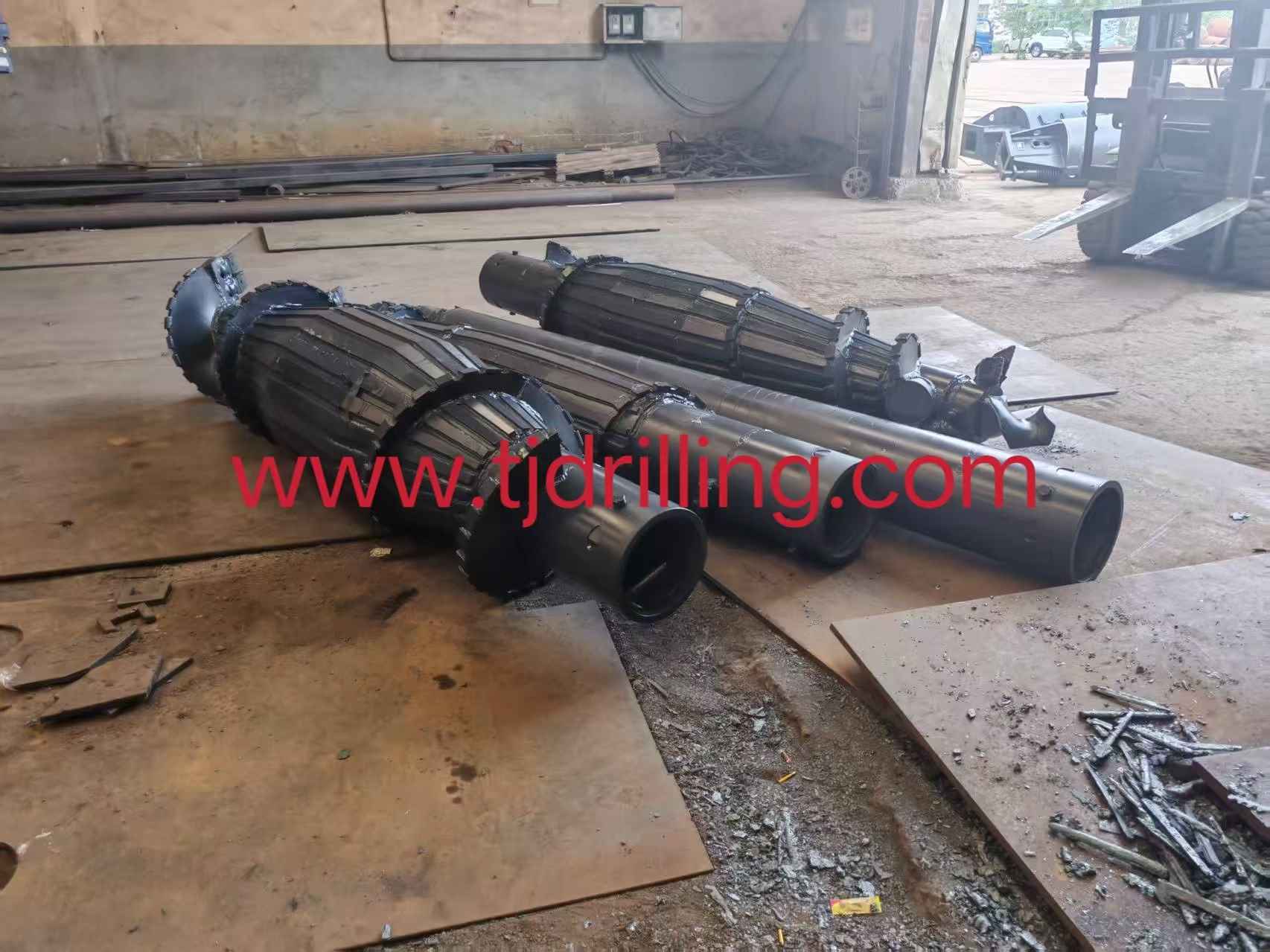

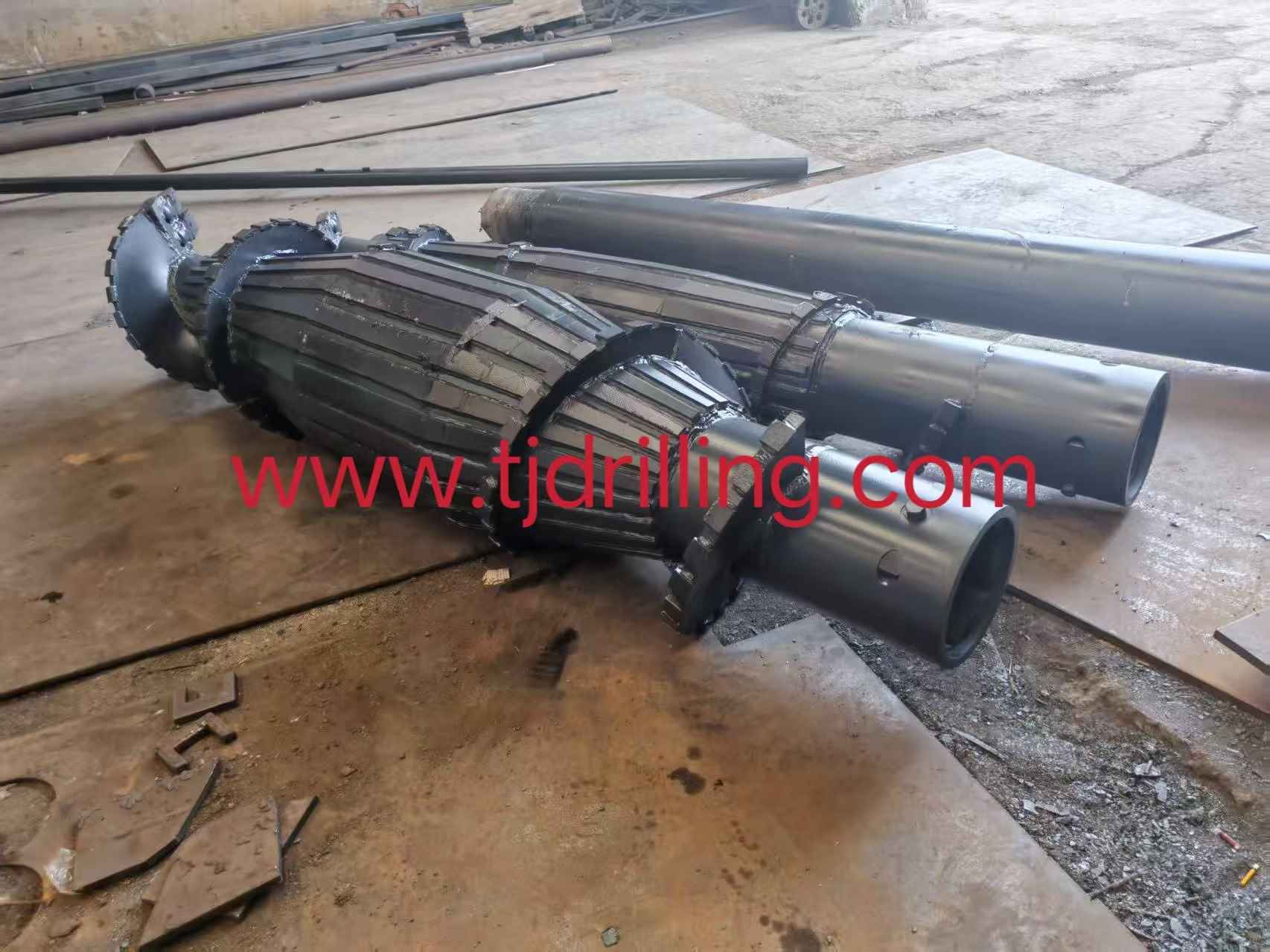

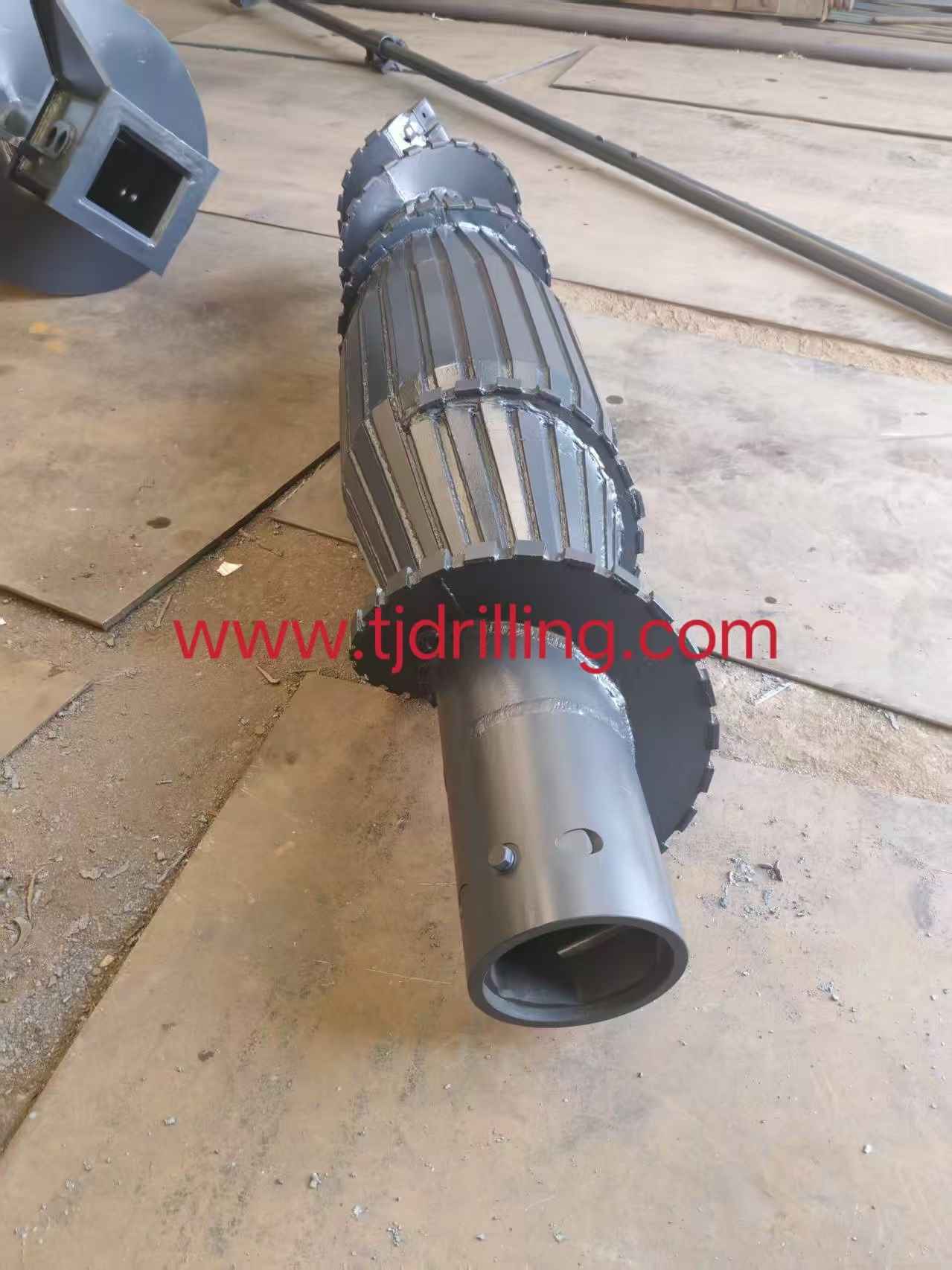

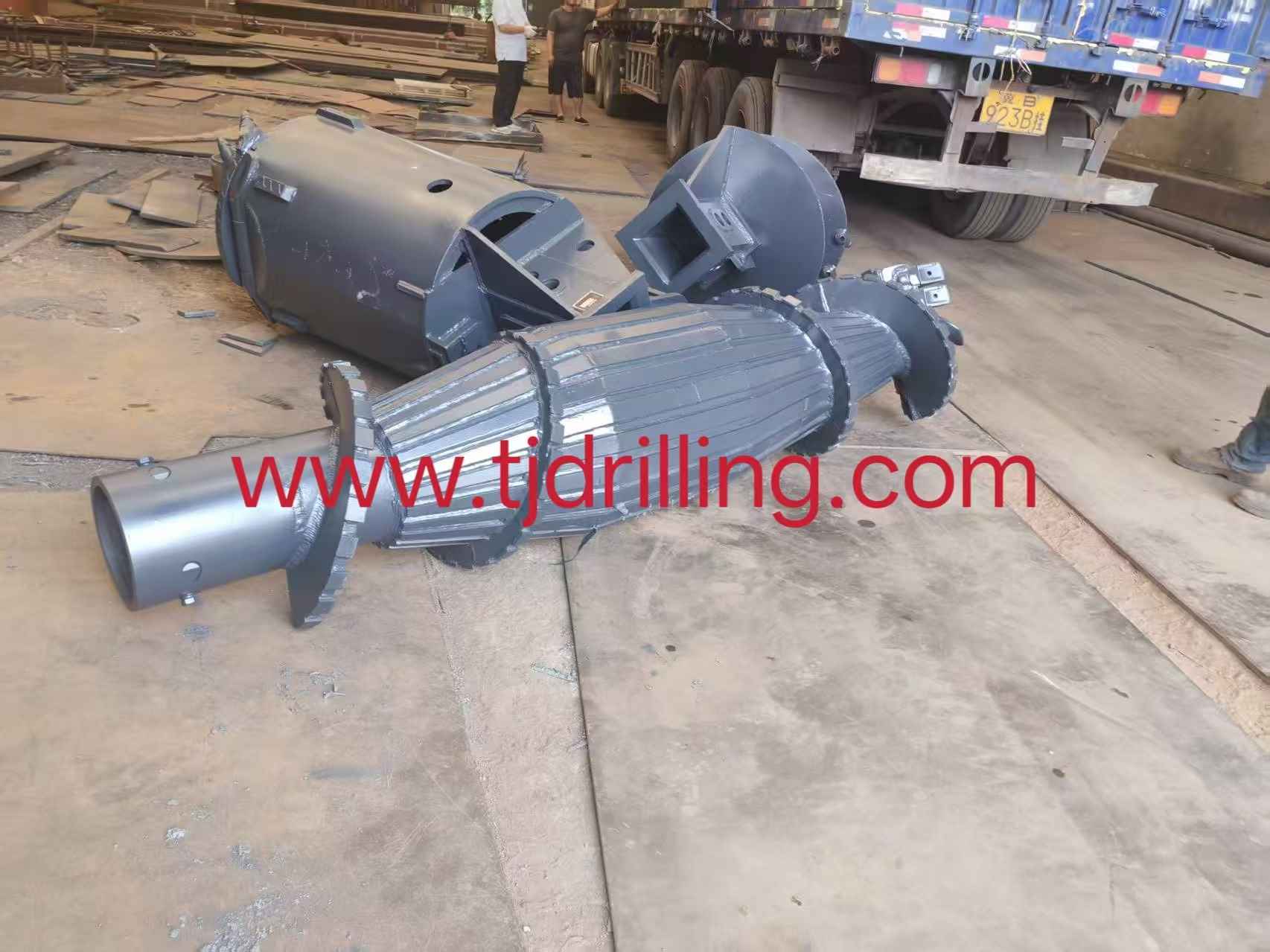

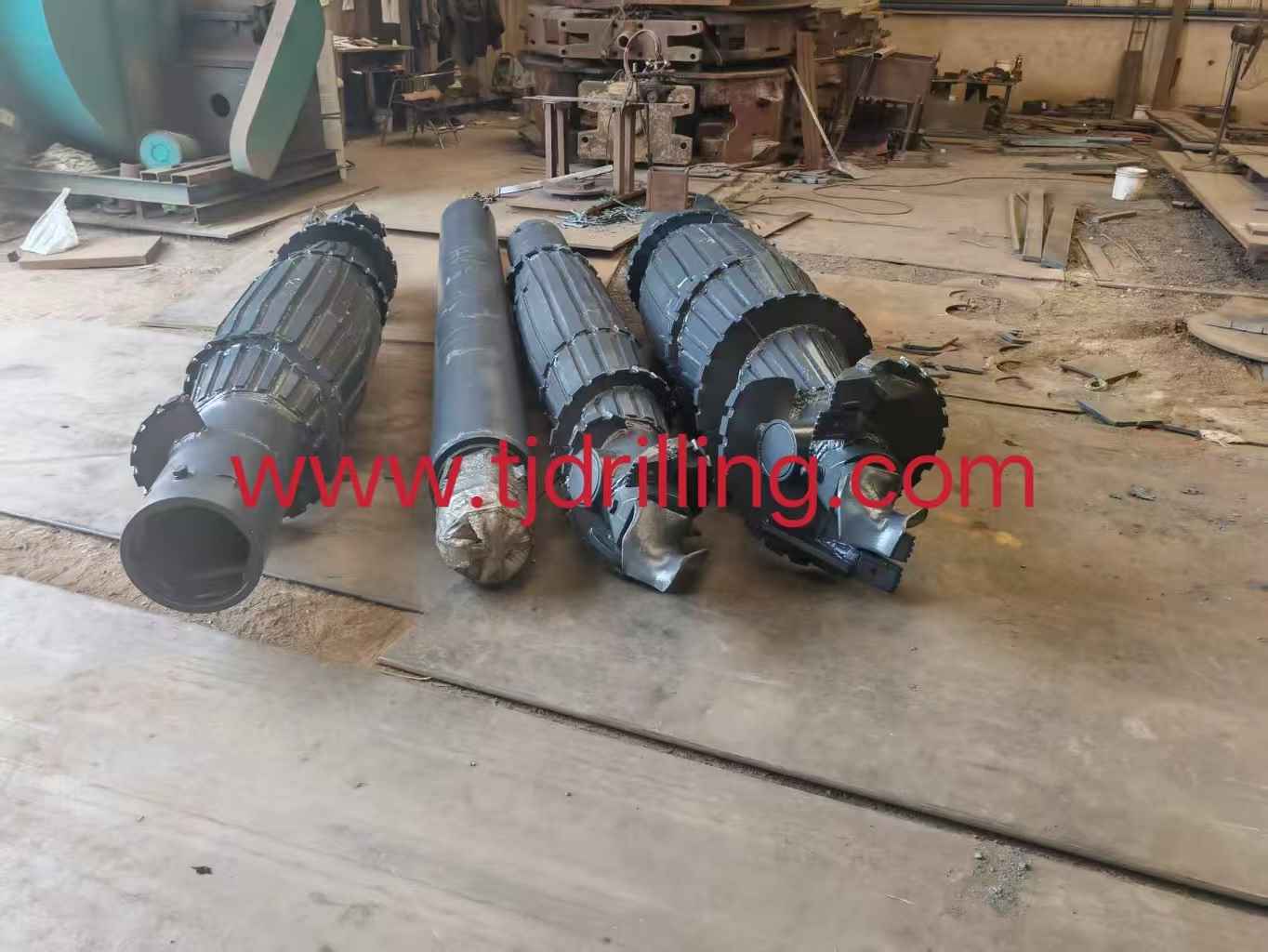

600mm fdp auger wtih cfa coupling 25hd5 match soilmec sr75 drill rig for full displacement pile600MM full displacement pile auger with cfa coupling 25hd5 match soilmec sr75 drill rig for fdp pile
600mm soilmec fdp auger with cfa hexagonal joint xhd5 match soilmec sr60 for full displacement pile
A complete 600 mm FDP tool string for the SR-65 consists of five primary components:
1.
Sacrificial Pilot Bit & Concrete Outlet
Heavy-duty pilot bit with tungsten-carbide teeth (bullet teeth or flat chisels) for initial penetration.
Internal concrete discharge valve (knock-out cap or flap valve) that prevents soil ingress during drilling and opens under concrete pump pressure during extraction.
2.
Helical Starter Flights
Short section of aggressive auger flighting at the tip that cuts into the soil and directs material upward toward the expanding body.
3.
Displacement Body (Expander Bulb)
A heavy-walled, tapered steel mandrel engineered to a 600 mm outer diameter.
Compresses surrounding soil laterally into the borehole wall, increasing soil density and shaft friction while eliminating spoil disposal costs.
4.
Counter-Flights (Reverse Flighting)
Reversed-pitch auger flights located directly above the displacement bulb.
Forces any loose soil back down toward the bulb during rotation to ensure zero surface spoil accumulation.
5.
Smooth Shaft / Extension Pipe & Drive Coupling
Thick-walled smooth steel casing stems (e.g., Ø300 mm to Ø406 mm inner tube) that extend to the required drilling depth while minimizing rotational skin friction.
Top coupling fitted with a heavy-duty hexagonal drive connector or flange matching the SR-65 rotary sleeve connector.
Required SR-65 Rig Conversion Kits & Accessories
To run a 600 mm FDP setup on the SR-65, the rig requires specific continuous-flight and displacement packages:
CFA/DP Quick Change Conversion Kit: Allows rapid changeover from Large Diameter Piling (LDP/Kelly) to Continuous Flight/DP mode via Plug & Play rotary adapters.
Lower Mast Auger Guide: Dual-gate hydraulic auger guide fitted with 600 mm inserts to maintain verticality during initial penetration.
Concrete Swivel & Hose Kit: Top-mounted swivel assembly rated for high concrete pumping pressure during continuous extraction.
Fdp drilling string can produce according to your requirement for diameter length and coupling
Full Displacement piles are bored cast in situ
concrete piles constructed by advancing a
displacement boring tool into the ground with
a rotary drilling rig using both torque and
crowed force.
The technique is ideally suited for a wide
spectrum of soil condition ranging from
sandy gravel, sand, silt and clay to soft
organic soils, so long as the soil is displaceable.
The particular advantage of Full Displacement Pile is the relatively simple technology
where no temporary casings are used.
