600mm cfa auger with  CFA octagonal connector sw175 match Liebherr-LB28 drill rig for cfa pile

600mm cfa auger with  CFA coupling sw175  match Liebherr-LRB23 drill rig for Continuous Flight Auger pile

600mm cfa auger with CFA octagonal connector sw175 match Liebherr-Lb24 drill rig for cfa pile

750mm cfa auger with  CFA octagonal connector sw200  match Liebherr-Lb35 drill rig for cfa pile

900mm cfa auger with  CFA octagonal connector sw250  match Liebherr-LRB355 drill rig for cfa pile

450mm cfa auger with  CFA octagonal connector sw150  match Liebherr-LB20 drill rig for cfa pile

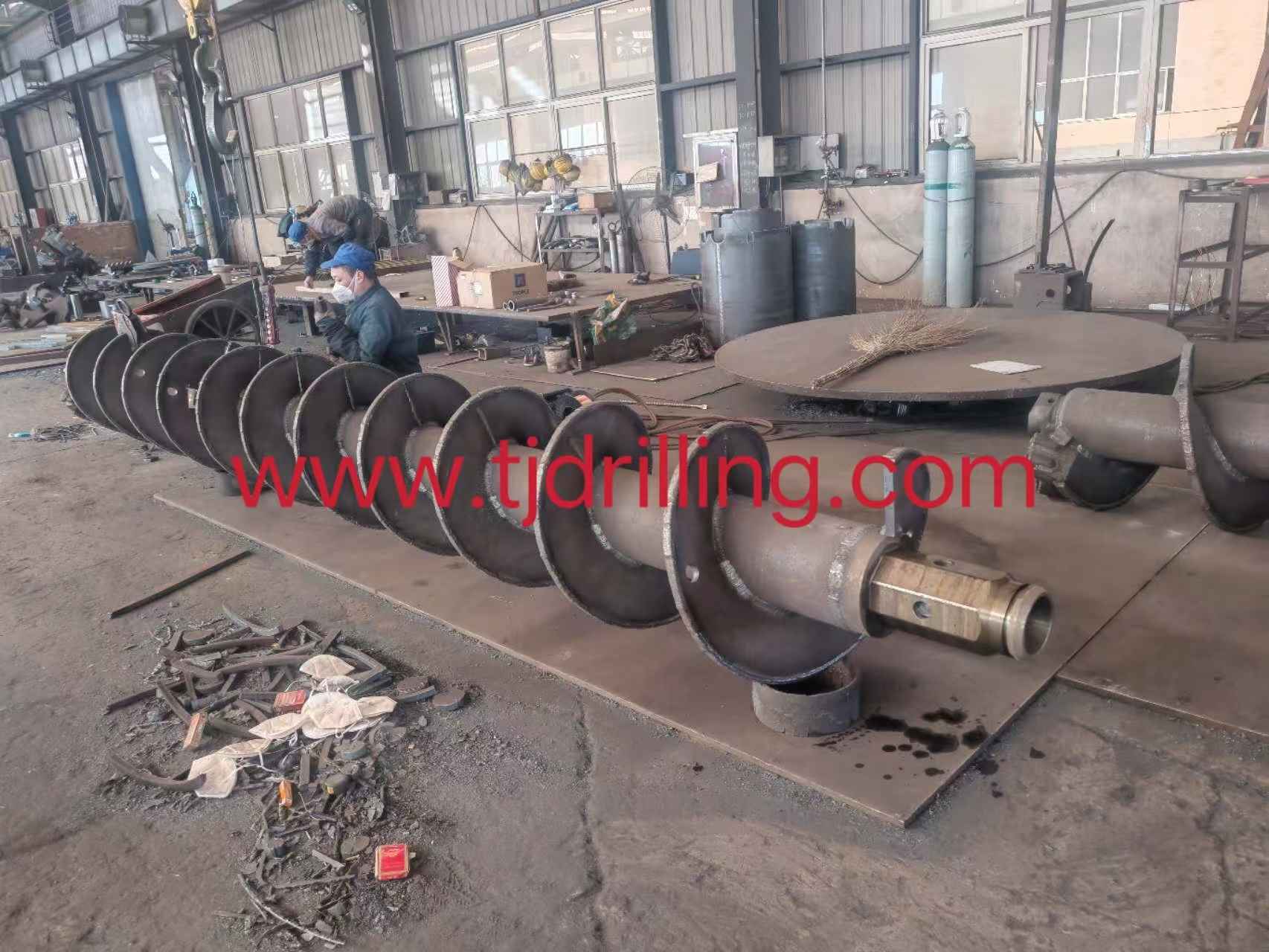

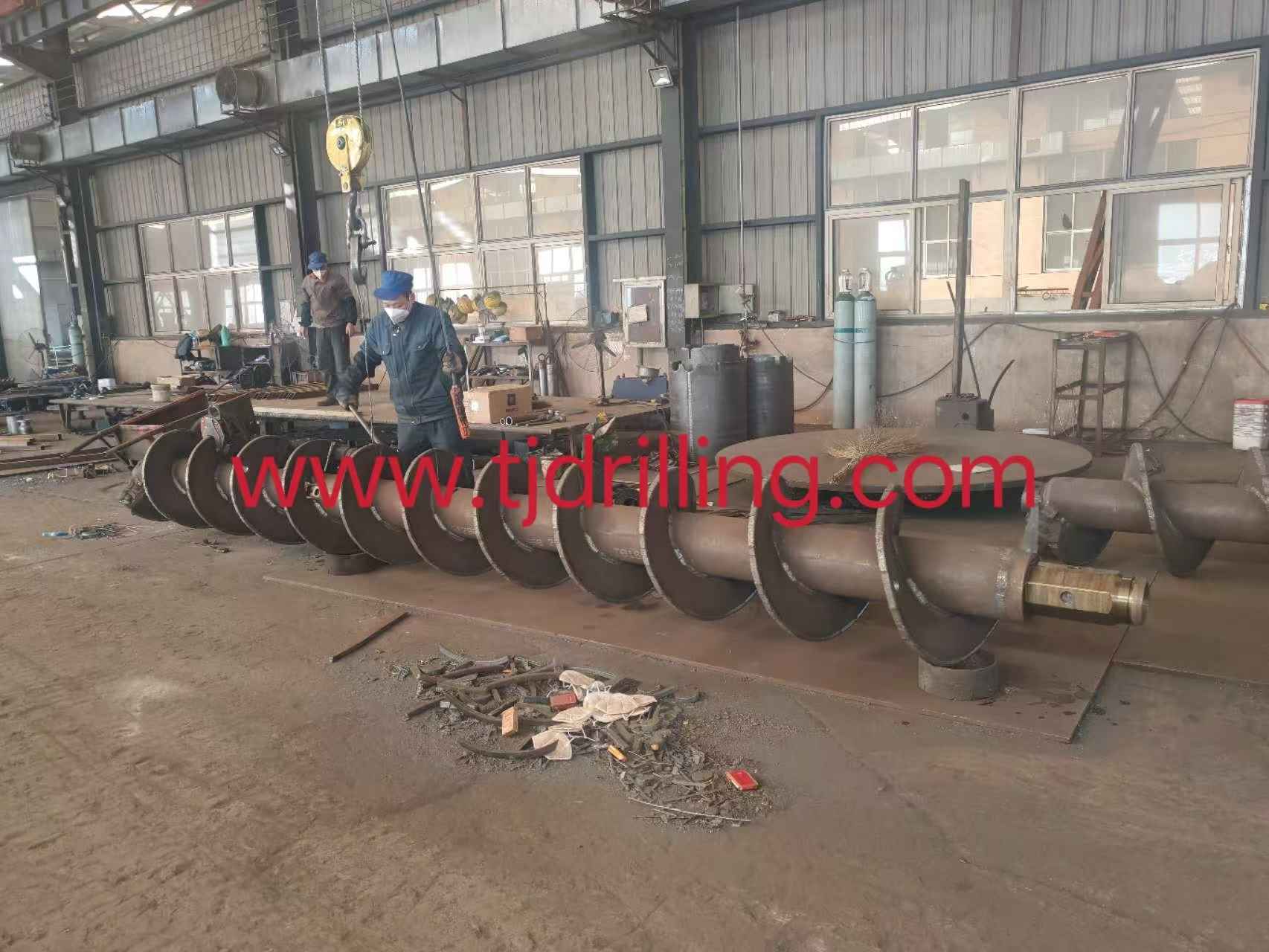

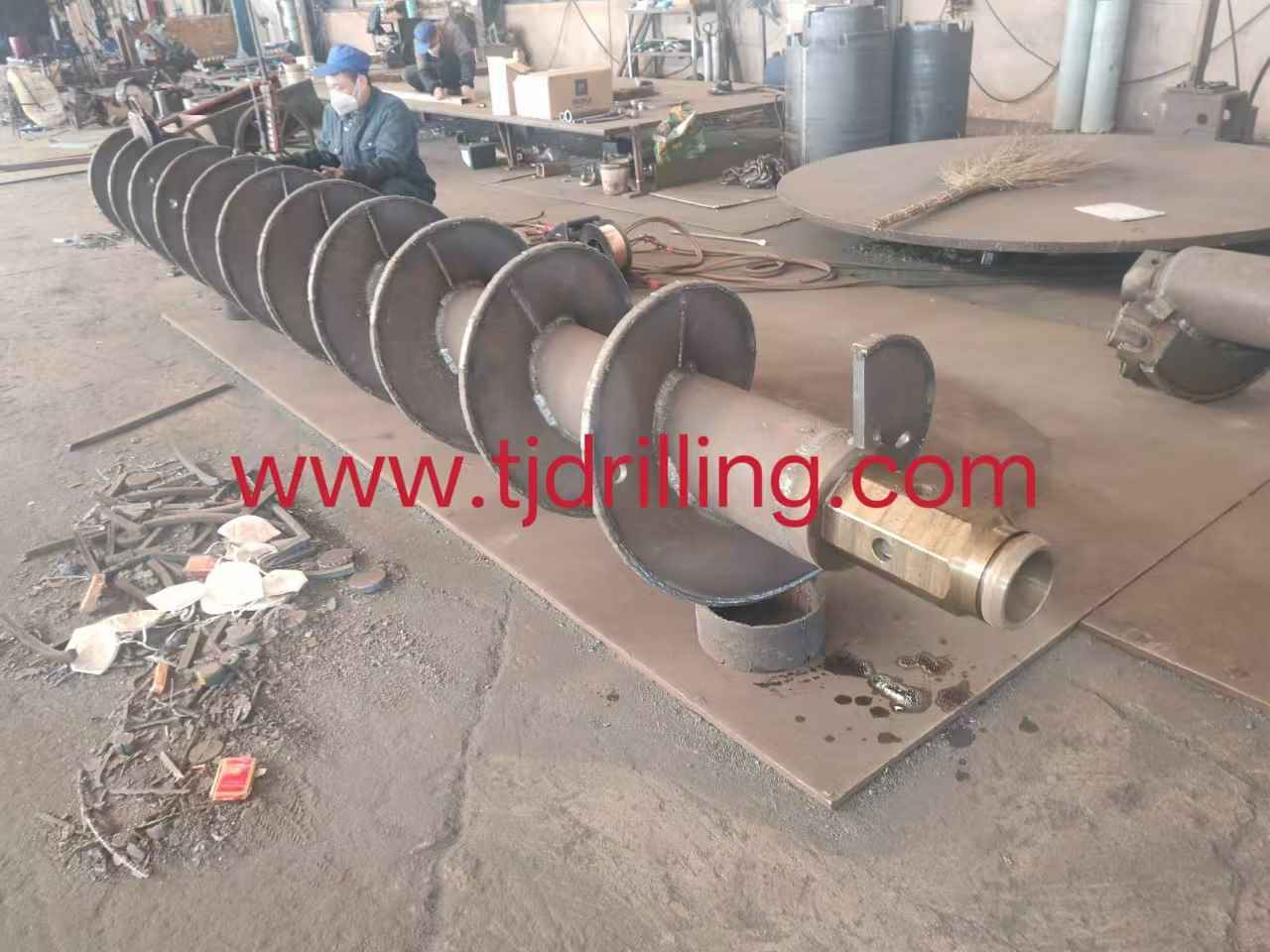

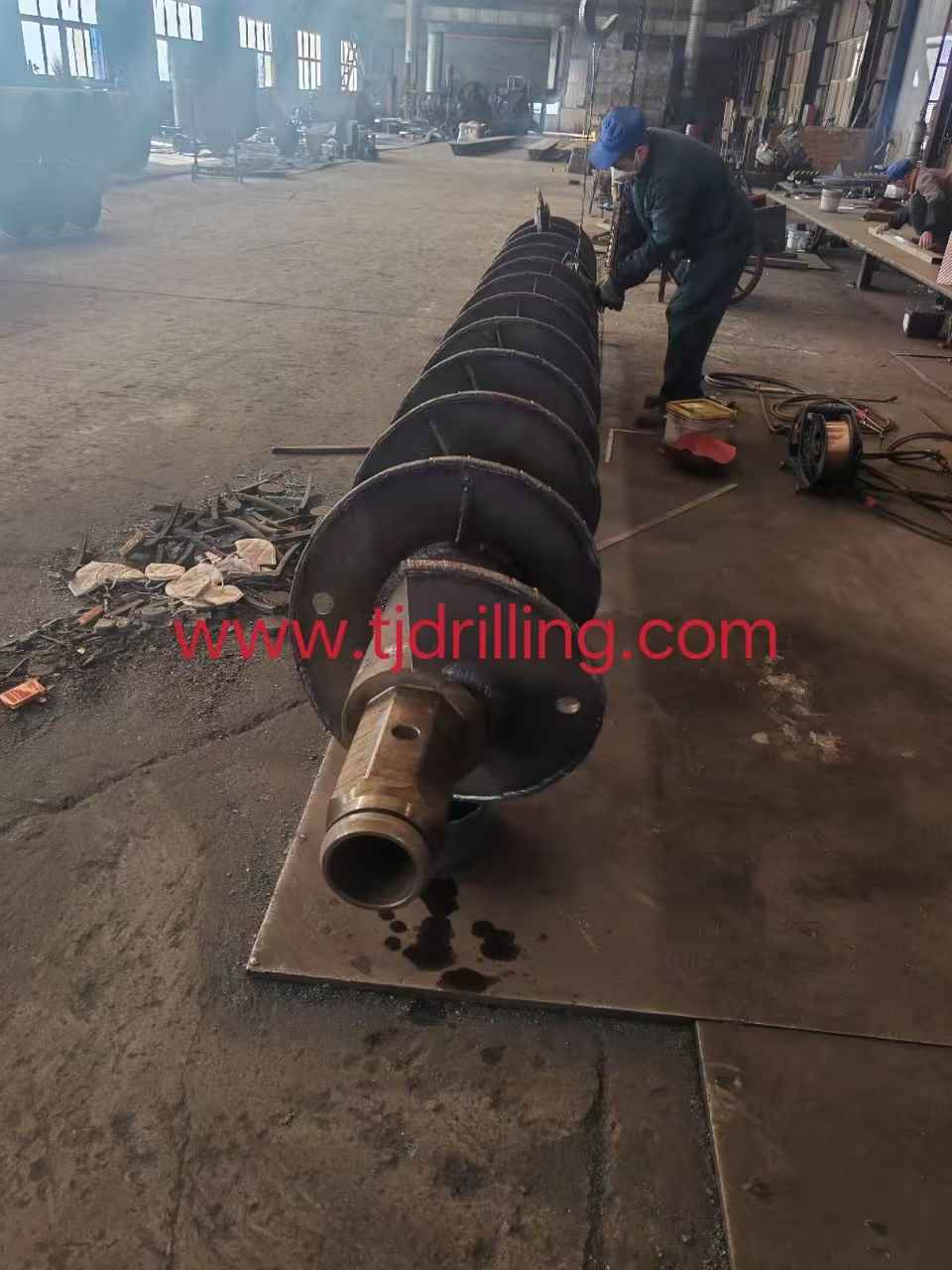

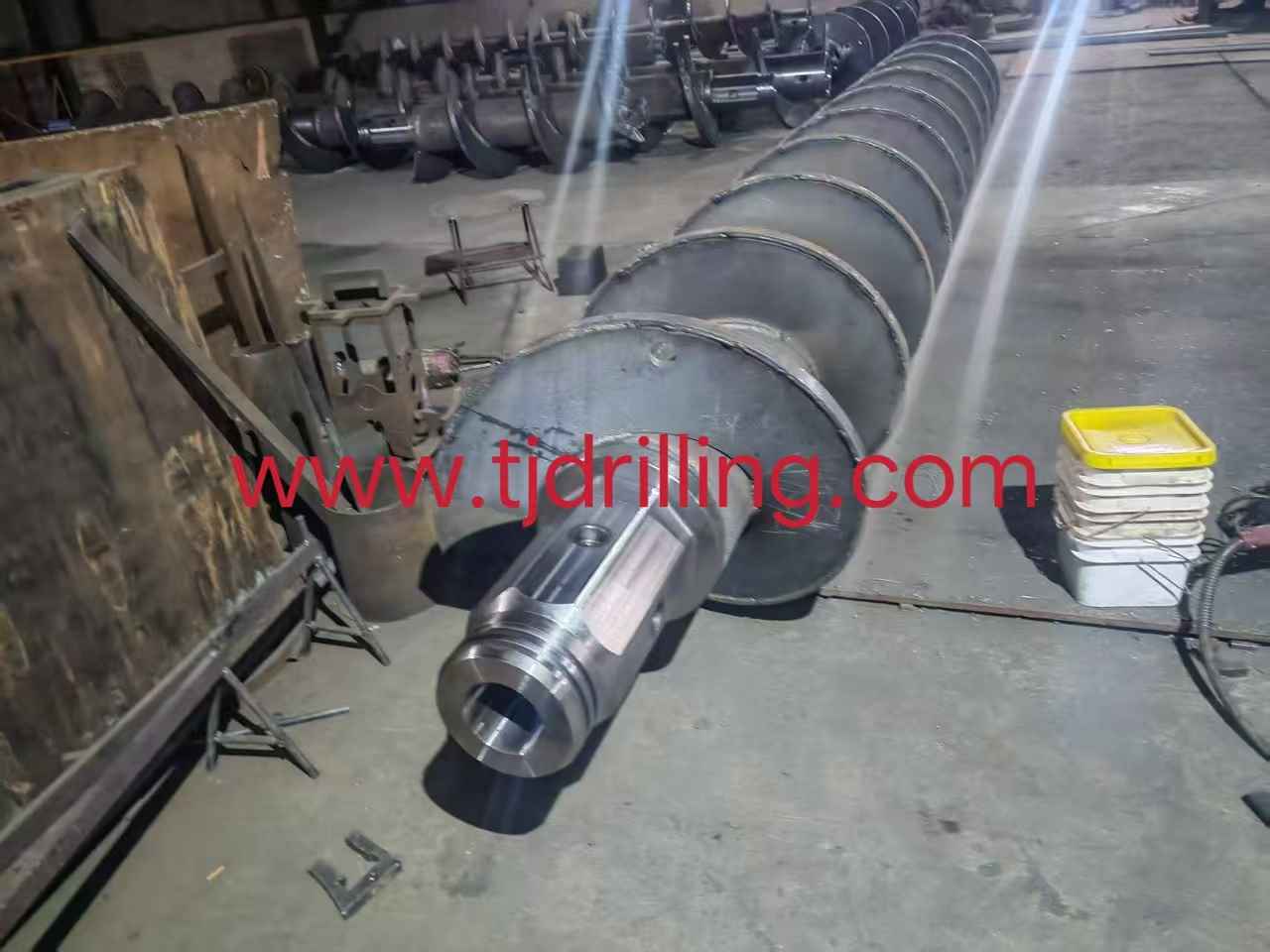

Running a 600 mm Continuous Flight Auger (CFA) on a Liebherr-LB28 rotary drilling rig utilizes the CFA-AU Ø 600 SW 175 auger series equipped with a 175 mm octagonal connection system.

Auger Tool Specifications (CFA Ø 600)

Parameter

Technical Value

Auger Outer Diameter

600 mm

Connector Joint

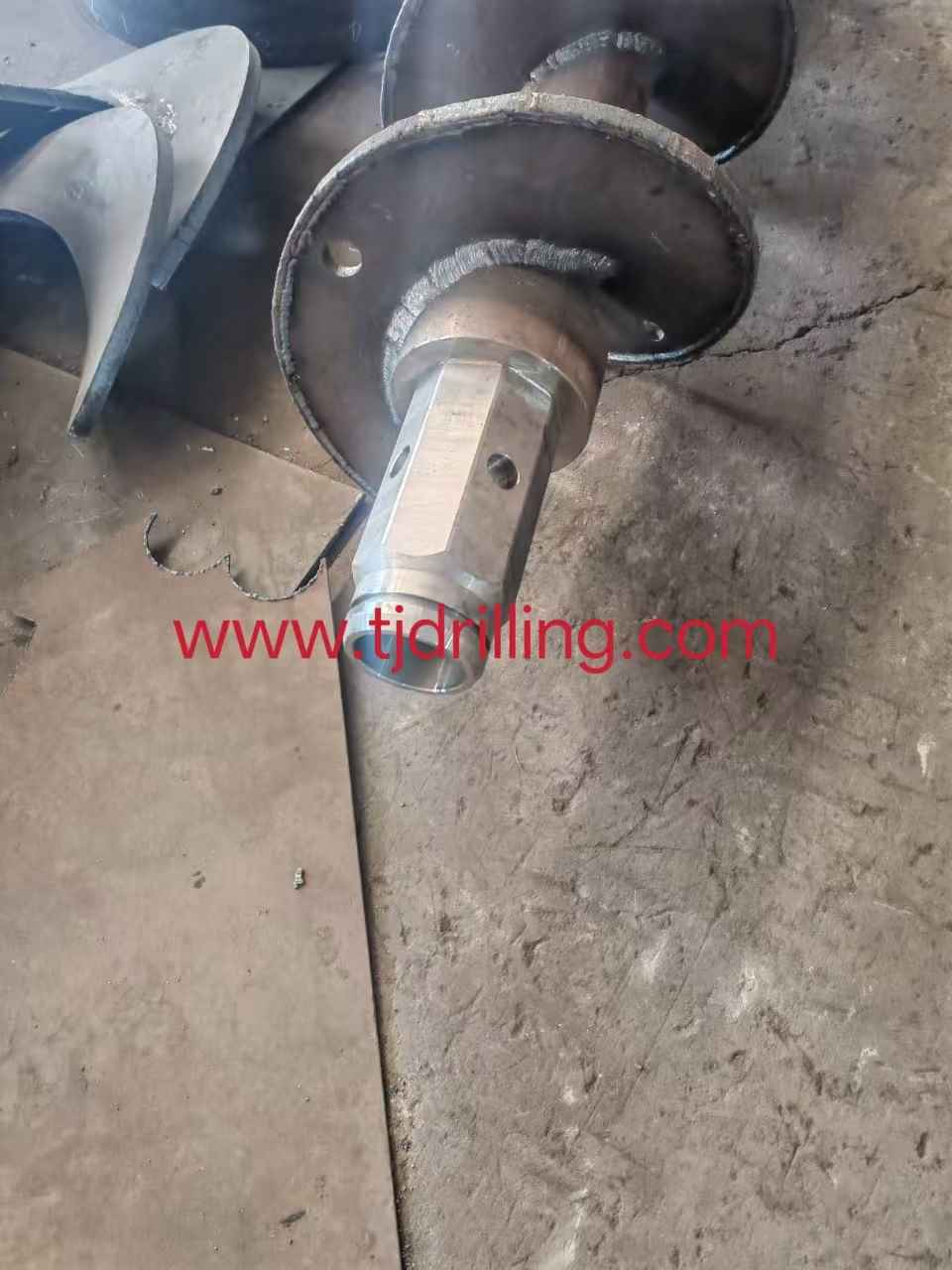

SW 175 (175 mm Octagonal)

Hollow Stem Outer Diameter

254 mm

Concrete Pipe Inner Diameter

125 mm (5 in)

Flight Pitch

450 mm

Max Torque Rating

250 kNm

Max Pull Force Rating

650 kN

Standard Segment Lengths

1.0 m, 2.0 m, 3.0 m, 5.0 m, 10.0 m

Drill Head & Assembly Accessories

Starter Head Assembly: Heavy-duty head fitted with a central fishtail pilot bit to ensure drill alignment.

Cutting Tools: Tungsten-carbide round shank chisels (e.g., C31HD / B47K) for hard gravel/soft rock, or flat teeth for cohesive clays.

Flap Valve: Bottom-discharge steel flap valve or rubber cap to prevent soil ingress into the hollow stem during penetration.

Auger Cleaner: Mast-mounted sleeve cleaner matching 600 mm diameter flighting to clear drill spoil during extraction.

1,SPECIFICATION

Materials:q355b , coupling:35crmo

Tianjin huachang xingye technology co ltd
CFA piles are constructed by rotating a hollow stem continuous flight auger into the soil to a designed depth. Concrete or grout is pumped through the hollow stem, maintaining static head pressure, to fill the cylindrical cavity created as the auger is slowly removed. The reinforcement cage is placed through the freshly placed concrete. Typically,  CFA piles are reinforced with a rigid six metre-long cage as a minimum, but it's possible to install much longer cages as and when required by the design or specification. If required, a specially developed vibrator unit can help accurately locate the reinforcement cages.
