2310mm spherical grab used inside of od2500/2380mm casing pipe for marine  pile foundation work

2310mm double rope spherical grab used inside of casing 2500/2380mm used marine pile foundation work use

2300mm spherical hammer grab used inside of casing 2500/2380mm used marine pile foundation work use

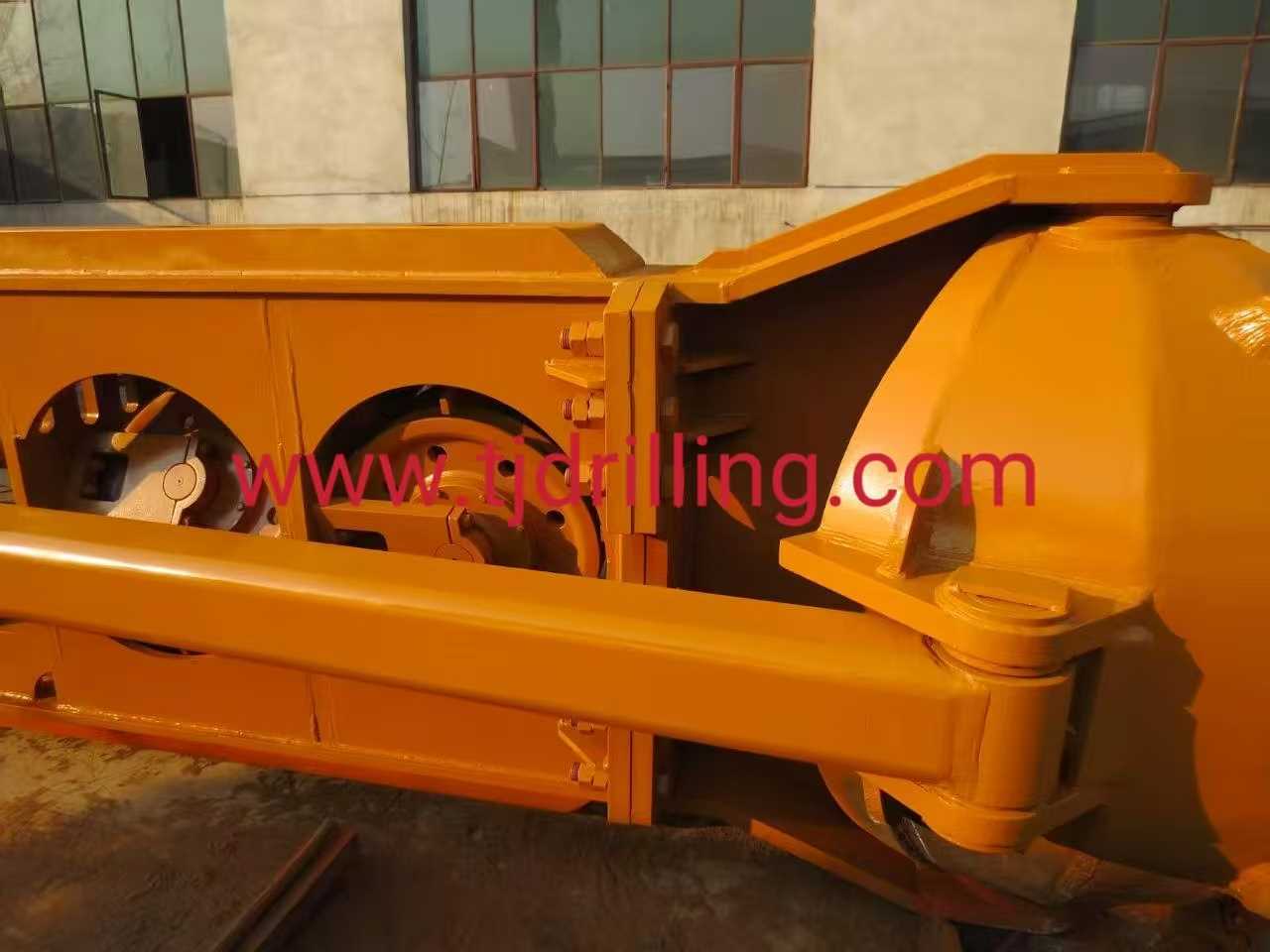

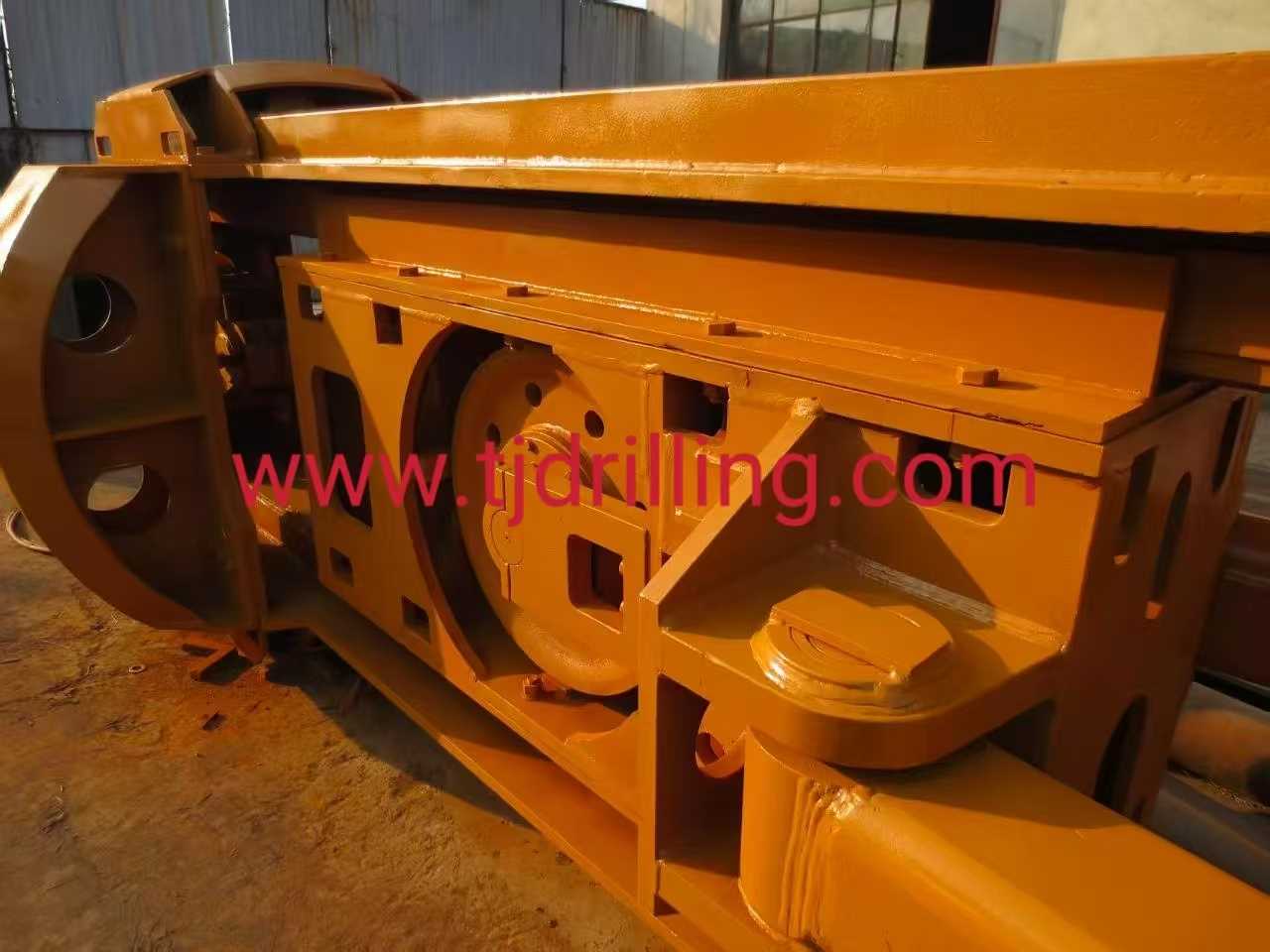

Spherical grab is used on jobs where drilling has to be carried out free of vibrations and or where partially cased or uncased drilled shafts are to be produced, the high deadweight in conjunction with the high closing force ensures a high efficiency
Tianjin huachang xingye technology co ltd fabricate spherical grab operates through a double rope function. They have a strong grab force that is best for excavating hard soil and even soft rock
Double rope spherical grab with high close force suitable for vibration free boring in semi hard and hard soil conditions
Hammer grab with high clamping force, particularly suitable for drilling of holes in rocky soils and for working under water load
SPHERICAL GRAB for bored pile 800-3000mm

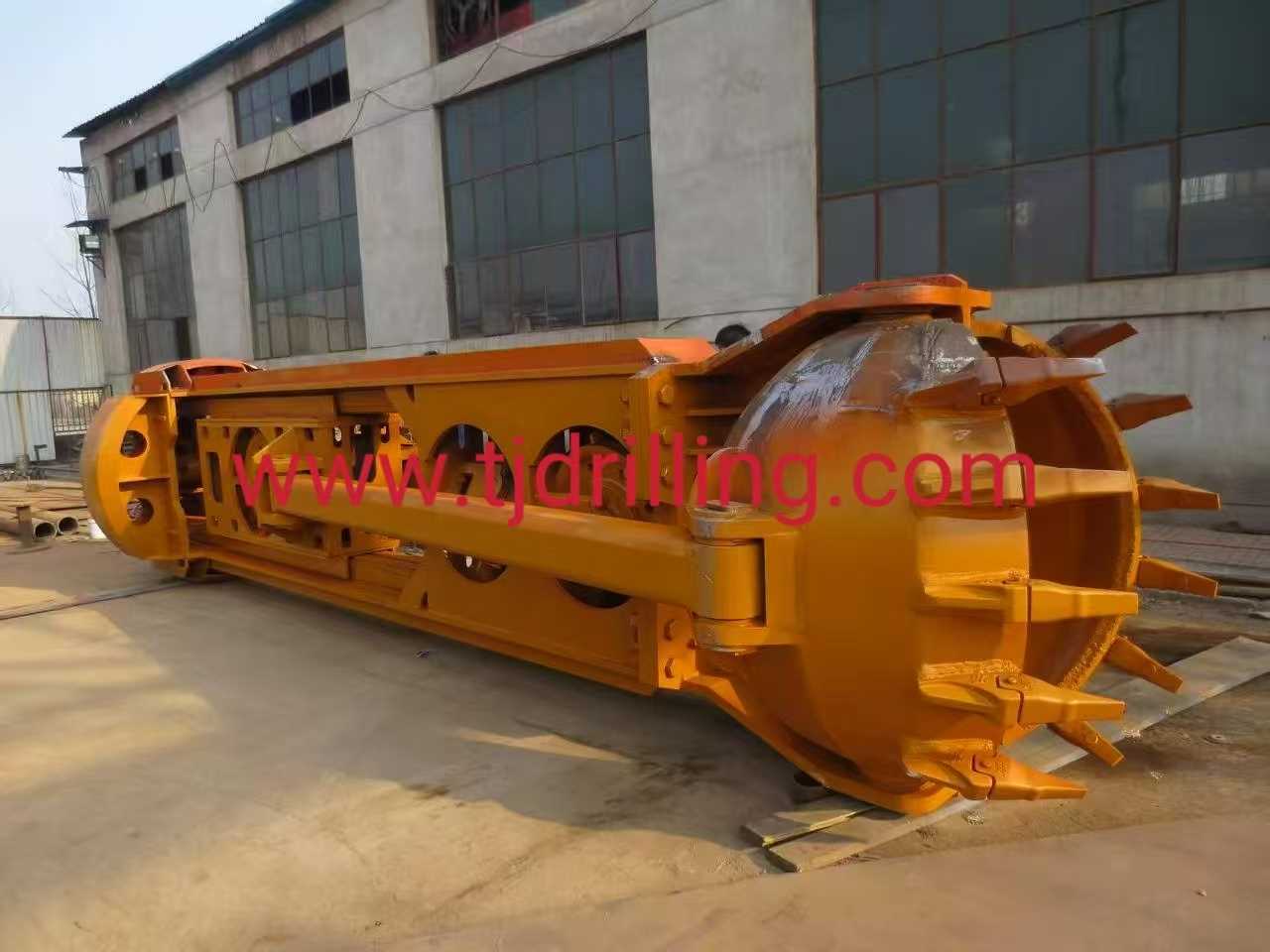

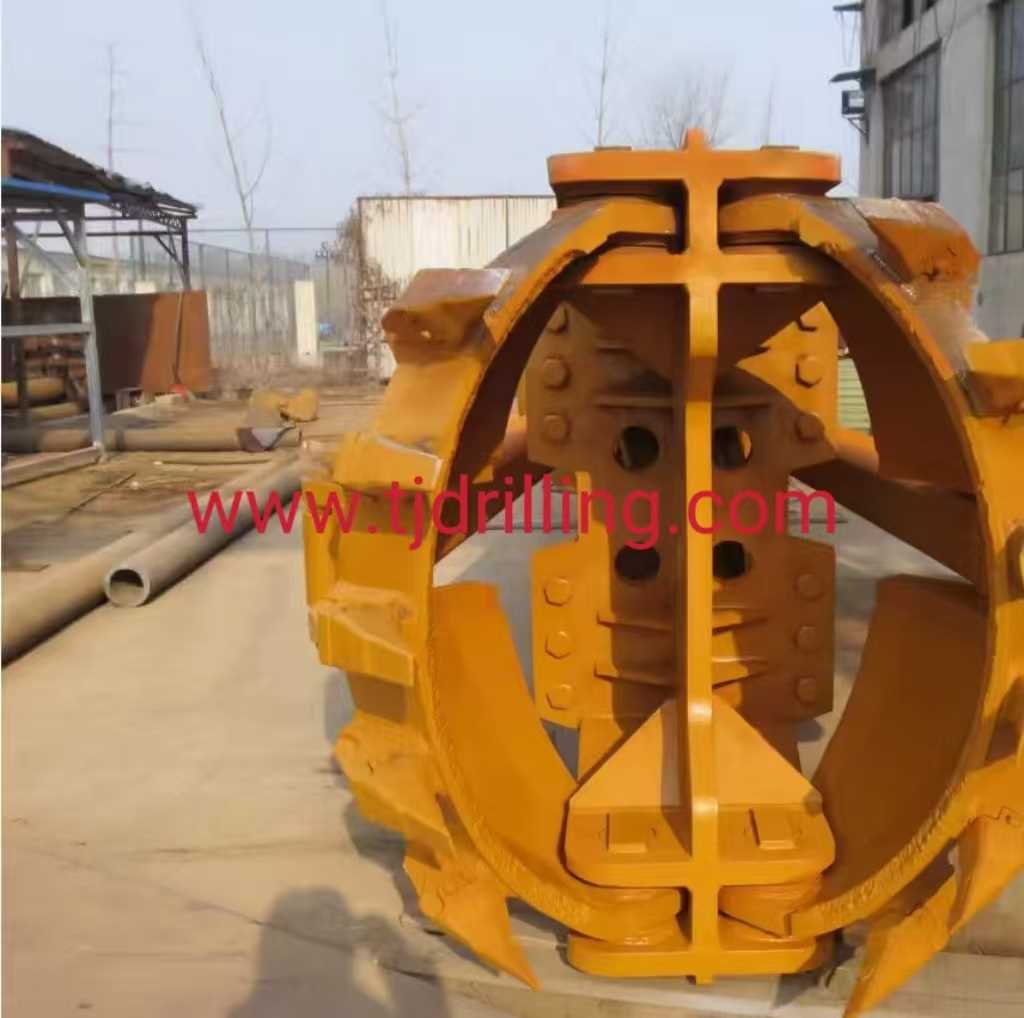

spherical Hammer grab is the most important tool used in piling and determines the progression of the drilling. In addition to the maximum grabbing capacity, unloading is quick and easy. The stresses of the whole structure are relieved and very strong
Surfaces exposed to wear are made of NM400 material. Chassis and arms that require strength are made material. Guides and holders are made of Q355 material.
We have two different spoon systems as below: Pulley Type X-Linked Type Spherical Type


Casing size mm	L MM	L1	B	B2	weight
2000/1880	4600	5700	1650	2200	17000
2500/2380	4600	6000	1750	2200	21000
2800/2680	4600	6200	1750	2200	23000

A spherical hammer grab (often simply called a spherical grab) is a heavy-duty excavation tool used in deep foundation and piling work, specifically for bored piles and well drilling. While standard hammer grabs are often cylindrical or flat-walled, the spherical grab features rounded, "bowl-shaped" shells that are optimized for high closing forces and excavation in difficult ground conditions.Core Functions & AdvantagesThe spherical design is engineered to solve specific challenges that standard grabs struggle with:High Closing Force: Because of its geometry and high deadweight (often reaching over 10–20 tons for large diameters), it exerts immense splitting force on the ground. This makes it ideal for hard soil, gravel, and soft rock.Vibration-Free Boring: Unlike standard hammer grabs that rely heavily on the impact of free-fall (percussion) to break the ground, spherical grabs can "dig" into the soil during the closing process. This allows for drilling in urban areas where vibration must be minimized.Under-Water Operation: The streamlined spherical shape reduces water resistance, making it more efficient for "wet" drilling where the borehole is filled with water or slurry.Calibration & Verticality: Many hydraulic spherical grabs include a turning device (±100°) to ensure the borehole remains perfectly vertical and calibrated.Comparison: Spherical vs. Standard Hammer Grab

Feature	Standard Hammer Grab	Spherical Hammer Grab
Shape	Cylindrical or X-type	Spherical / Rounded shells
Best For	Sands, loose gravel, silts	Hard clays, boulders, soft rock
Action	High impact / Free-fall	High closing/splitting force
Vibration	Significant (percussive)	Low to None
Soil Removal	Very fast in loose soil	More efficient in cohesive/hard soil

Technical Specifications (Typical Range)Spherical grabs are categorized by the diameter of the casing they are designed to work inside.Diameter Range: Typically from 900mm to 3600mm.Weight: Can range from 6,000 kg for smaller models to over 31,000 kg for large-scale operationsOperation:Single-Rope: Uses a release crown and pawl system to open/close.Double-Rope: One rope for lifting/lowering and a second for active opening/closing, allowing the operator to loosen ground by "cycling" the jaws at the bottom of the hole.Common ApplicationsCased Boreholes: Used alongside a casing oscillator or rotator to clear out the "soil plug" inside the steel casing.Hard Strata: Breaking through boulders or layers of semi-hard rock that a standard auger might skid over.Large Diameter Piling: Used in bridge foundations, skyscrapers, and marine construction where massive piles (2m+ diameter) are required.Note on Maintenance: Because these tools deal with extreme abrasion, they often feature exchangeable teeth on the shells. In very hard rock, a chisel is often used first to pre-crush the material before the spherical grab is sent down to remove the debris.
