800mm Double Cut Rock Auger with Round Shank Chisel B40K12 for Bored Pile Founda
详细信息
800mm double cut rock auger with round shank chisel C31 for bored pile foundation work match soilmec drill rig800mm double cut flat bottom rock auger with round shank chisel c31 for bored pile foundation work
800mm double cut rock auger with round shank chisel B40K12 for bored pile foundation work
1000mm double cut rock auger with round shank chisel C31 for bored pile foundation work match soilmec drill rig
1200mm double cut rock auger with round shank chisel C31 for bored pile foundation work match soilmec drill rig
1500mm double cut rock auger with round shank chisel C31 for bored pile foundation work match soilmec drill rig
2000mm double cut rock auger with round shank chisel C31 for bored pile foundation work match soilmec drill rig
800mm Double Start Blade Rock Auger
with round shank chisel C31 for bored pile foundation work match soilmec drill rig

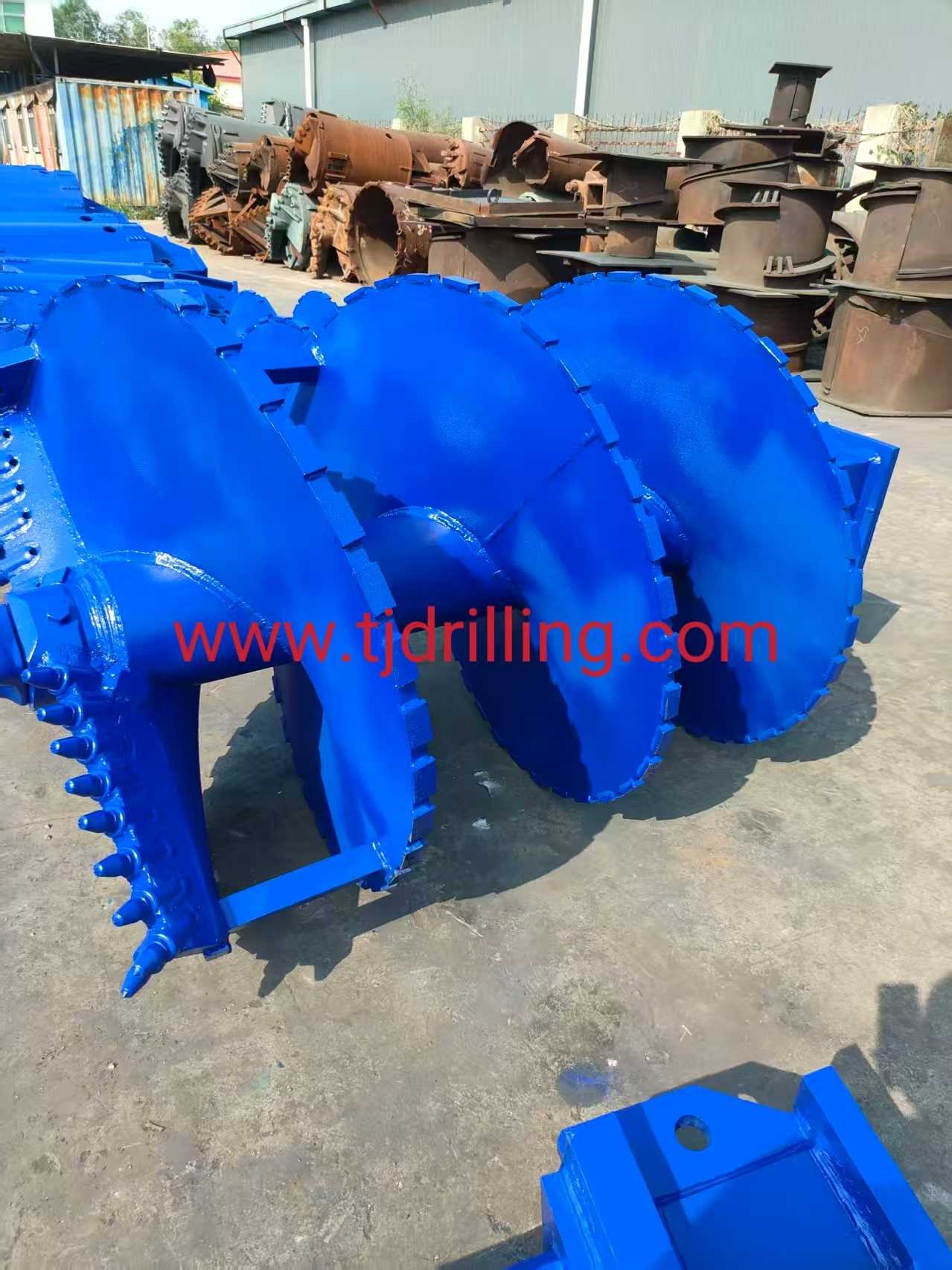

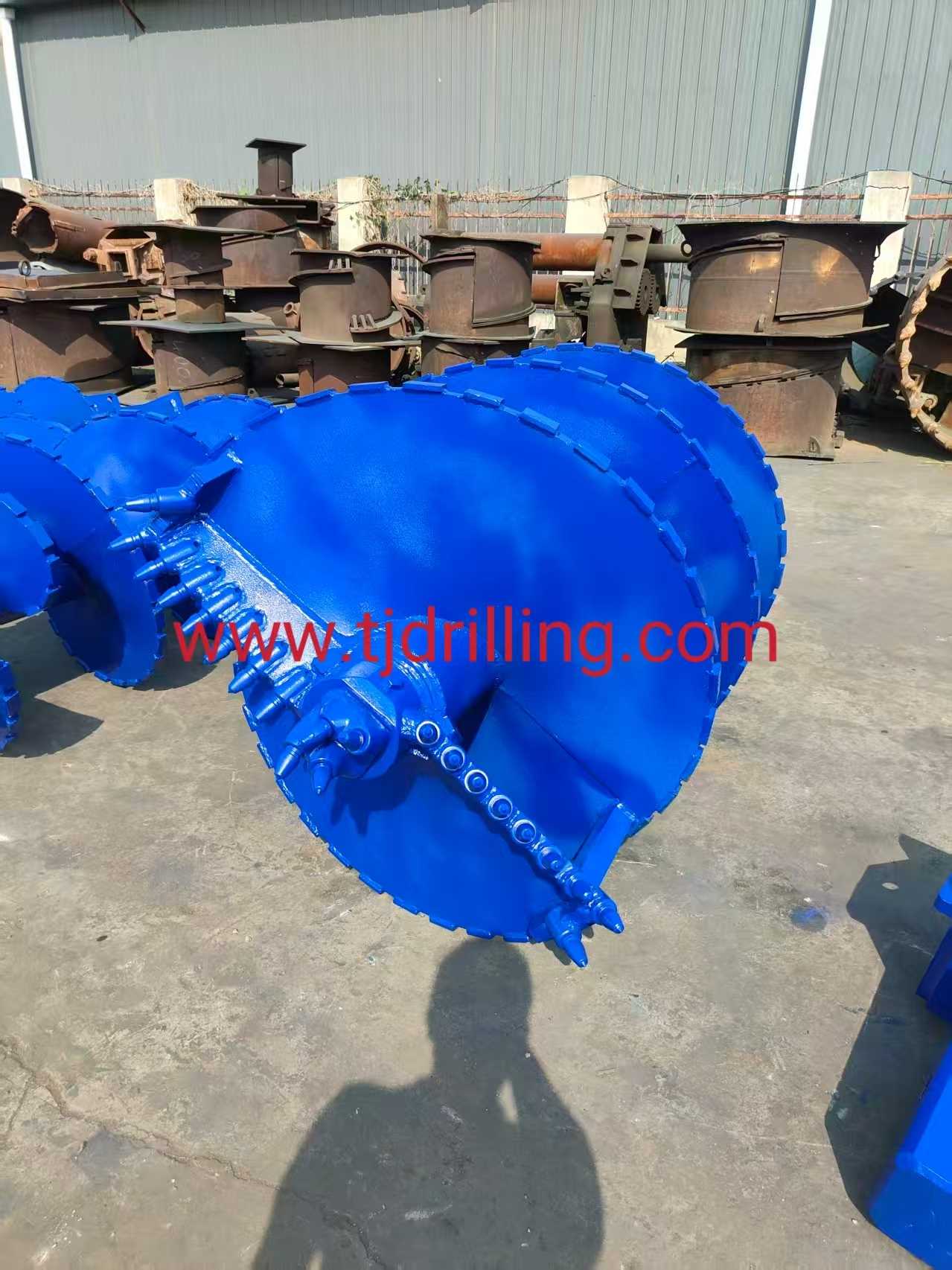

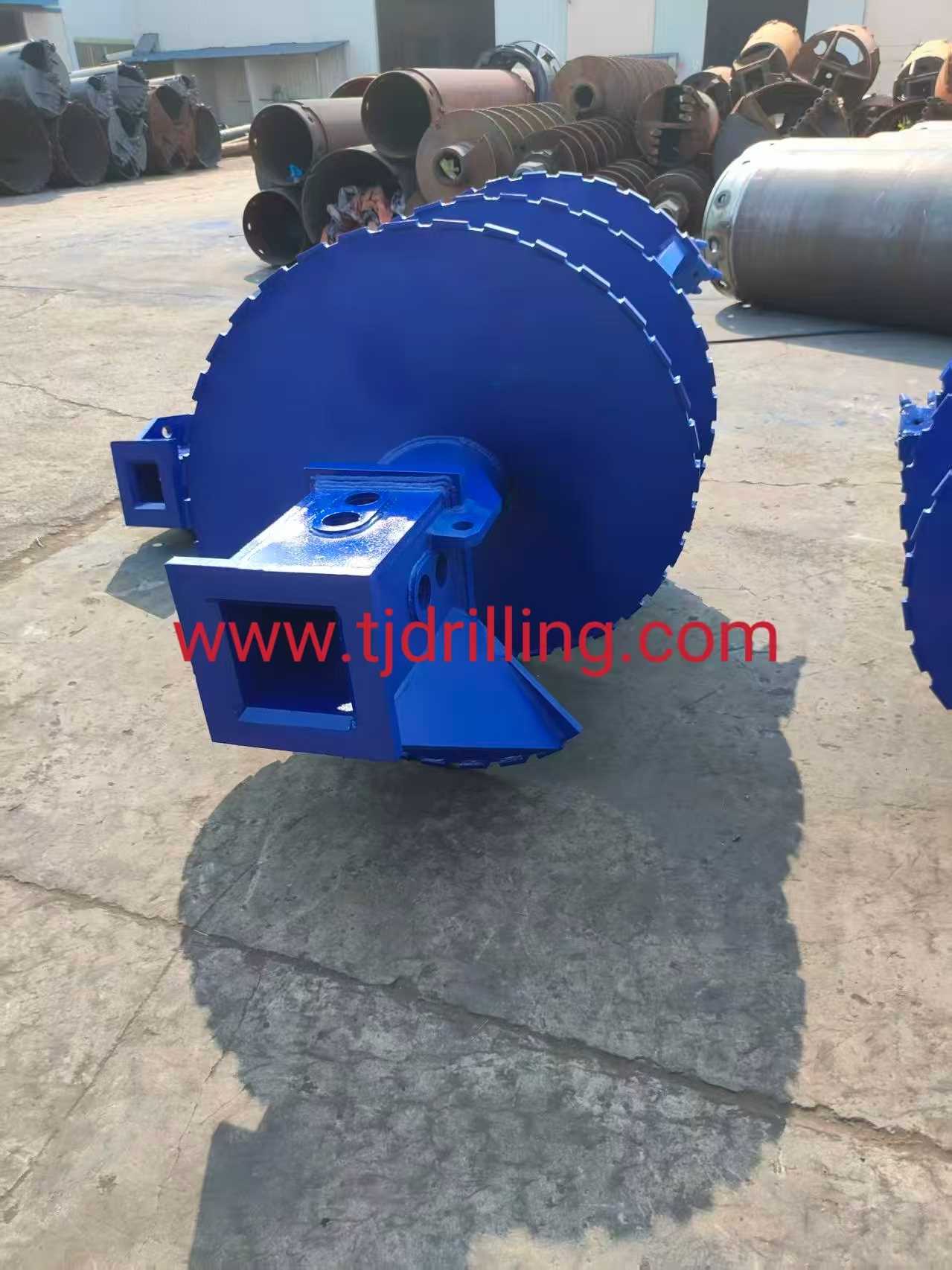

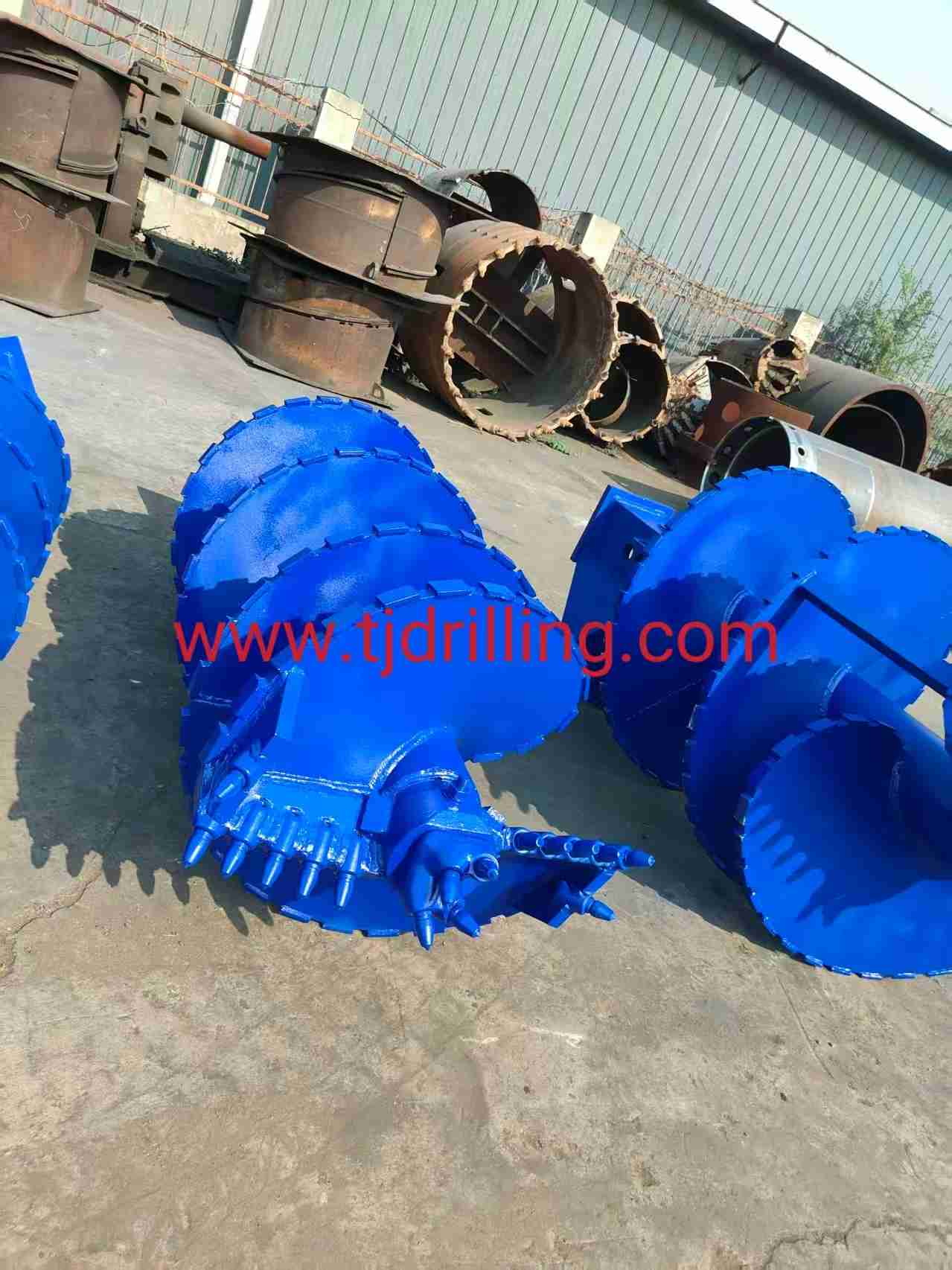

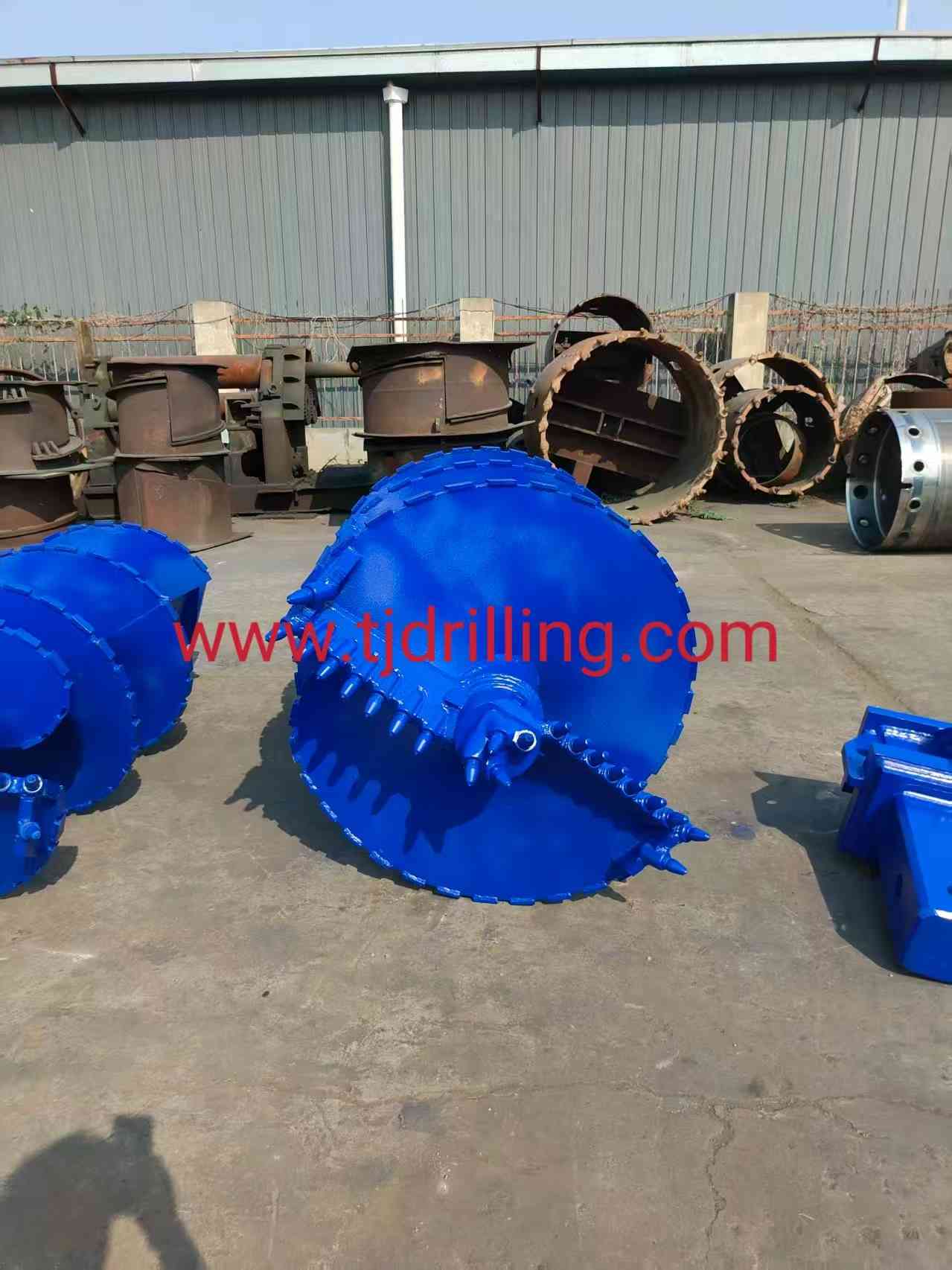

Double cut rock auger
Main application
very dense sand and gravel, weak rock
up to 50 MPa is recommended in uncased
bores or for bigger diameters and secant
pile walls
Features
Kellybox 200 mm
Round shank chisel pilot bit RP4, cutting
edge and collar plate with round shank
chisels
wear protection: hard facing or wear
strips
Double Start Blade Rock Auger
Main application:-Generally used for cutting medium-soft rock formation, and decompressed weak rock up to 20 MPa.
DRA is recommended is un uncased bores
and for bigger diameters
Kelly box: 130-150-200 - other available upon request
Teeth: round shank picks B47K22H or B40K12 other available upon request.
Side cut collar plate with round shank picks.
Round shank rock teeth pilot bit
Wear protection: hard facing (standard)
or wear stripe (optional)
or tungstuds (optional)
| D | d |
T1/T2 | P1/P2 | H1 | H | kg | KELLY BOX |
| 1000 | 219x30 | 30/20 | 600/600 | 1200 | 2000 | 850 | 200 |
| 1200 | 219x30 | 30/30 | 650/600 | 1200 | 2000 | 1175 | 200 |
