What Are Casing Oscillators? 1500mm Hydraulic Casing Oscillator
What are Casing Oscillators? 1500mm hydraulic casing oscillator
At its core, a casing oscillator is a mechanical device designed to facilitate the drilling process. Unlike traditional methods that apply vertical force, a casing oscillator provides rotational force to the casing. This allows it to bore into the earth with a twisting motion, cutting through obstructions and dense layers more efficiently.
The mechanics are fairly straightforward: the oscillator is mounted onto a crane or a dedicated rig. Once activated, it grips onto a casing-a large, tubular structure-and rotates it. This rotation, combined with downward force, enables the casing to penetrate the ground-with the oscillatory motion easing its passage through challenging terrains
Hydraulic casing oscillators are used to drive and to extract large steel casings with diameters ranging from 800 to 2500 mm up to depths of 70 m. The required hydraulic power is supplied either by the excavating machine (hydraulic crawler crane or drilling rig) or by a separate power pack
Tianjin huachang xingye technology co ltd manufacture Casing oscillator have two type , one is long type for crane use, one is shorty type for drill rig type
Casing Oscillators for cranes type(long version)
Casing Oscillators for foundation rigs type (short version)

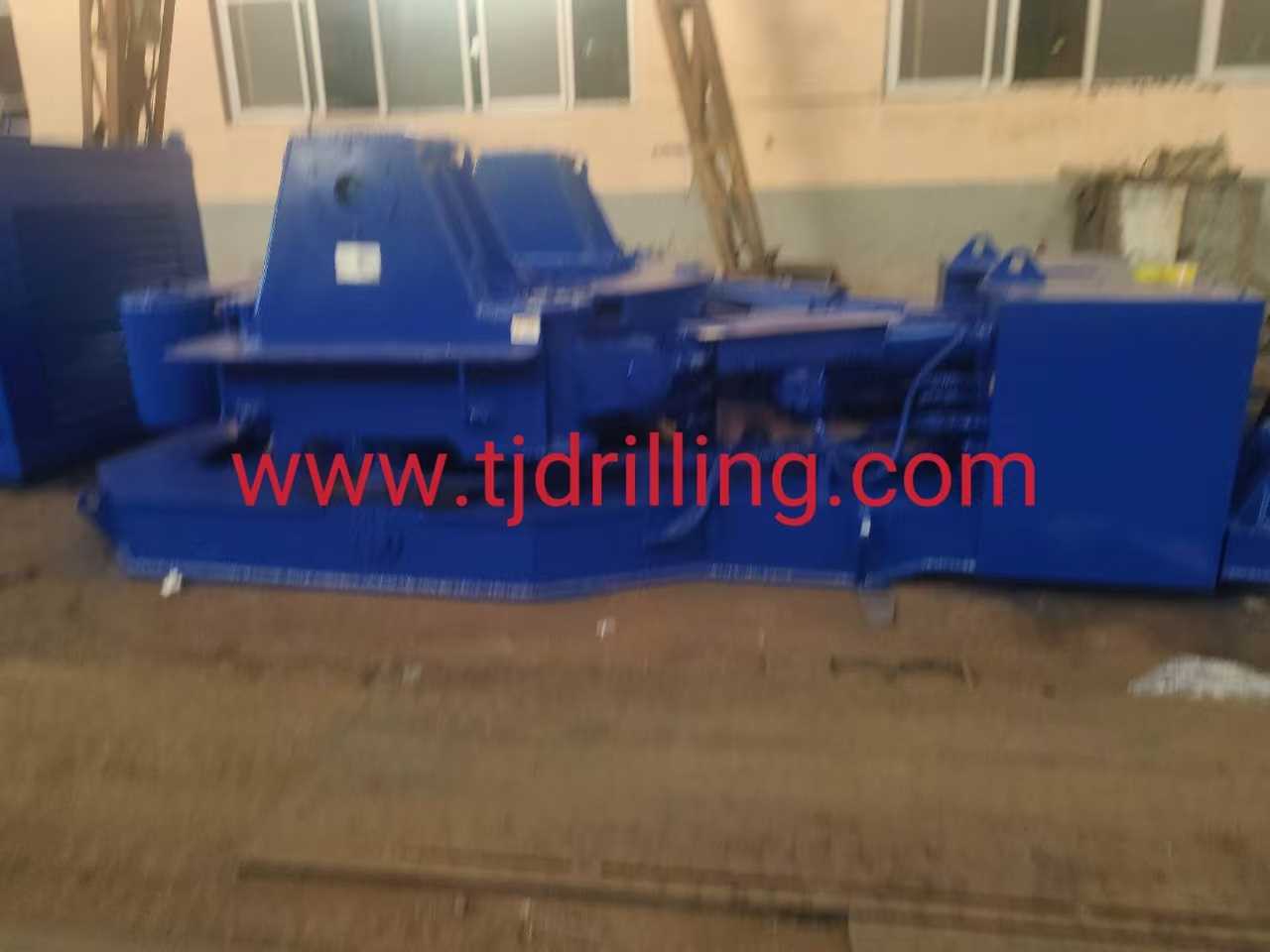

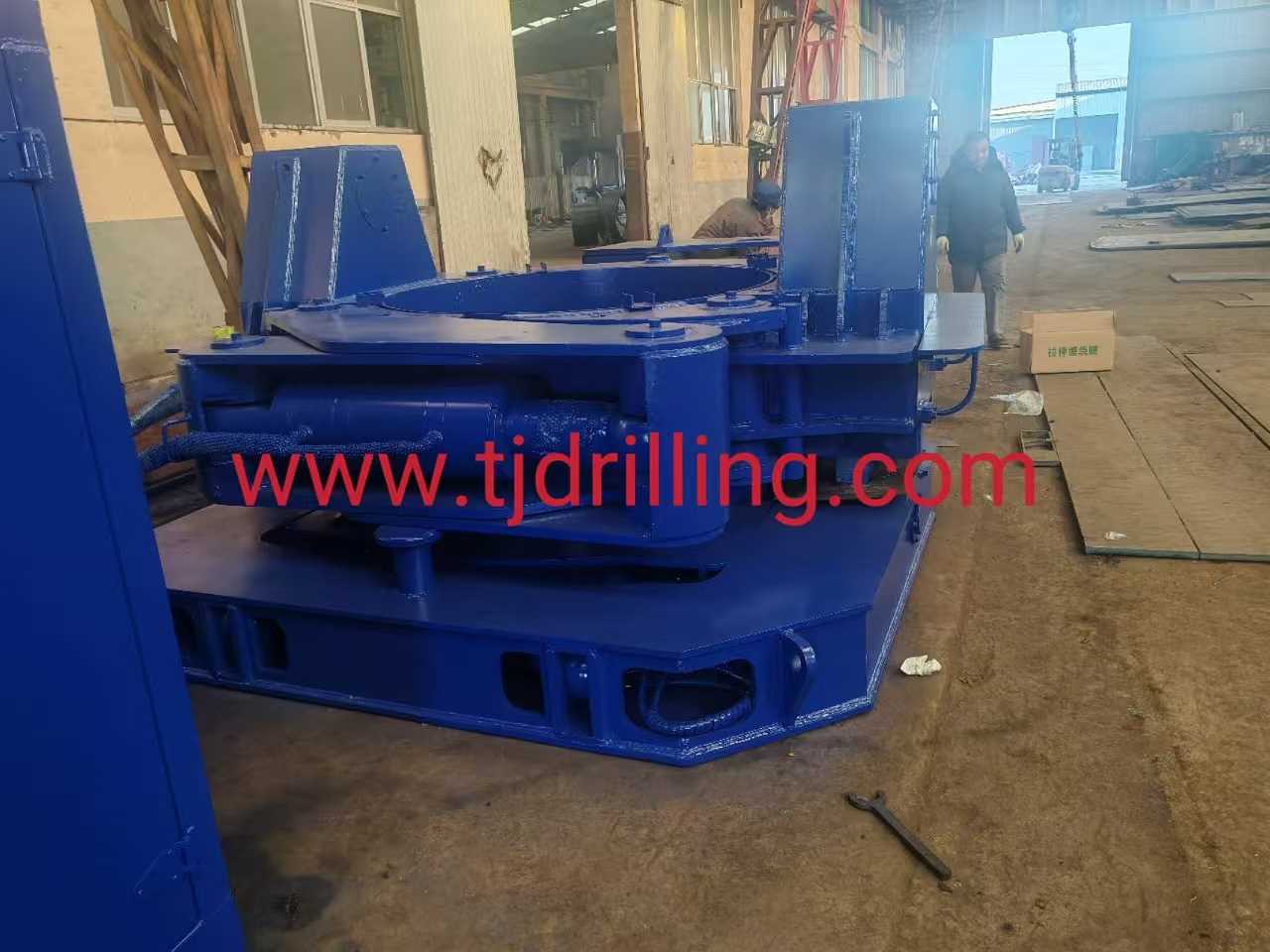

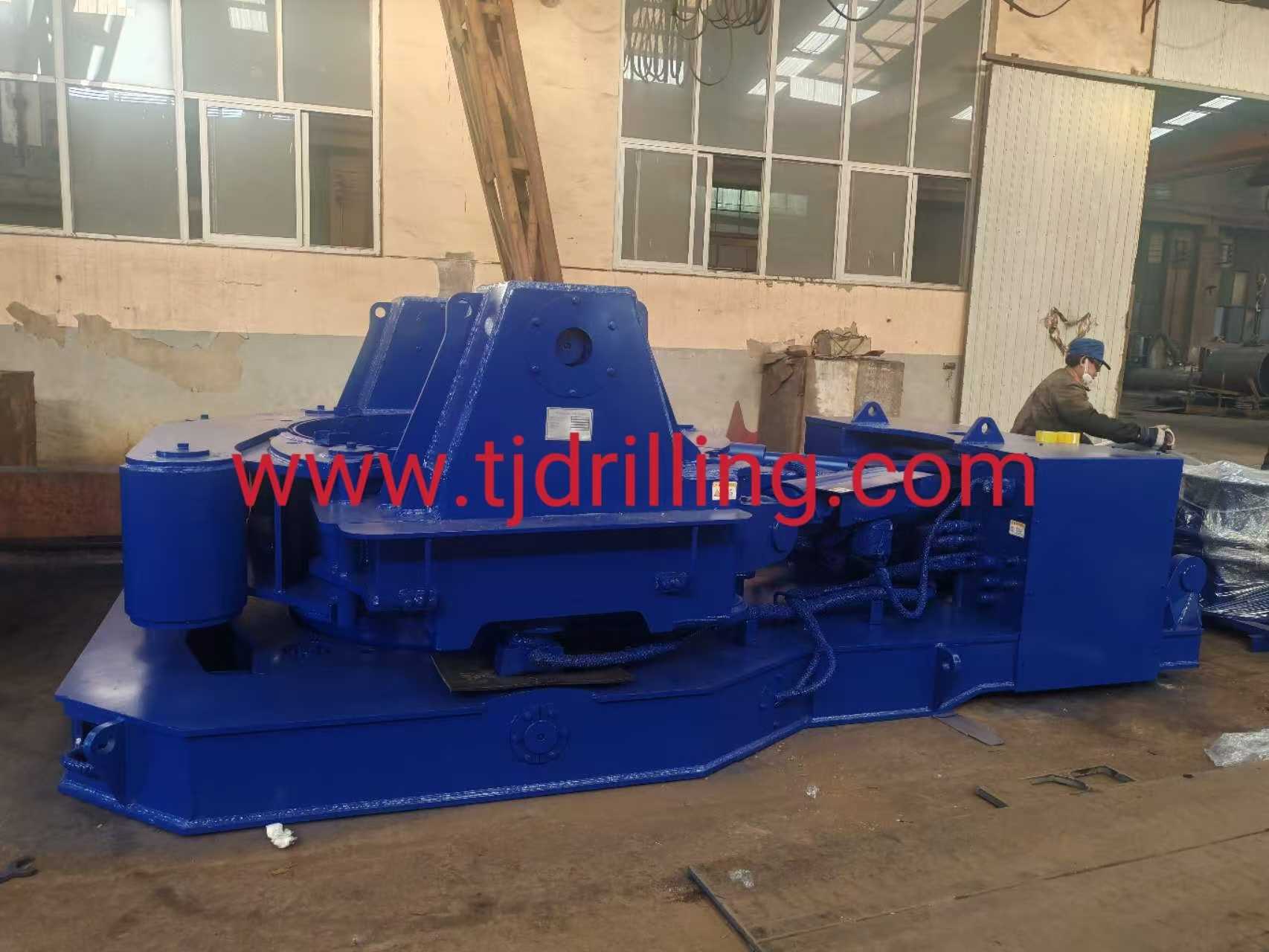

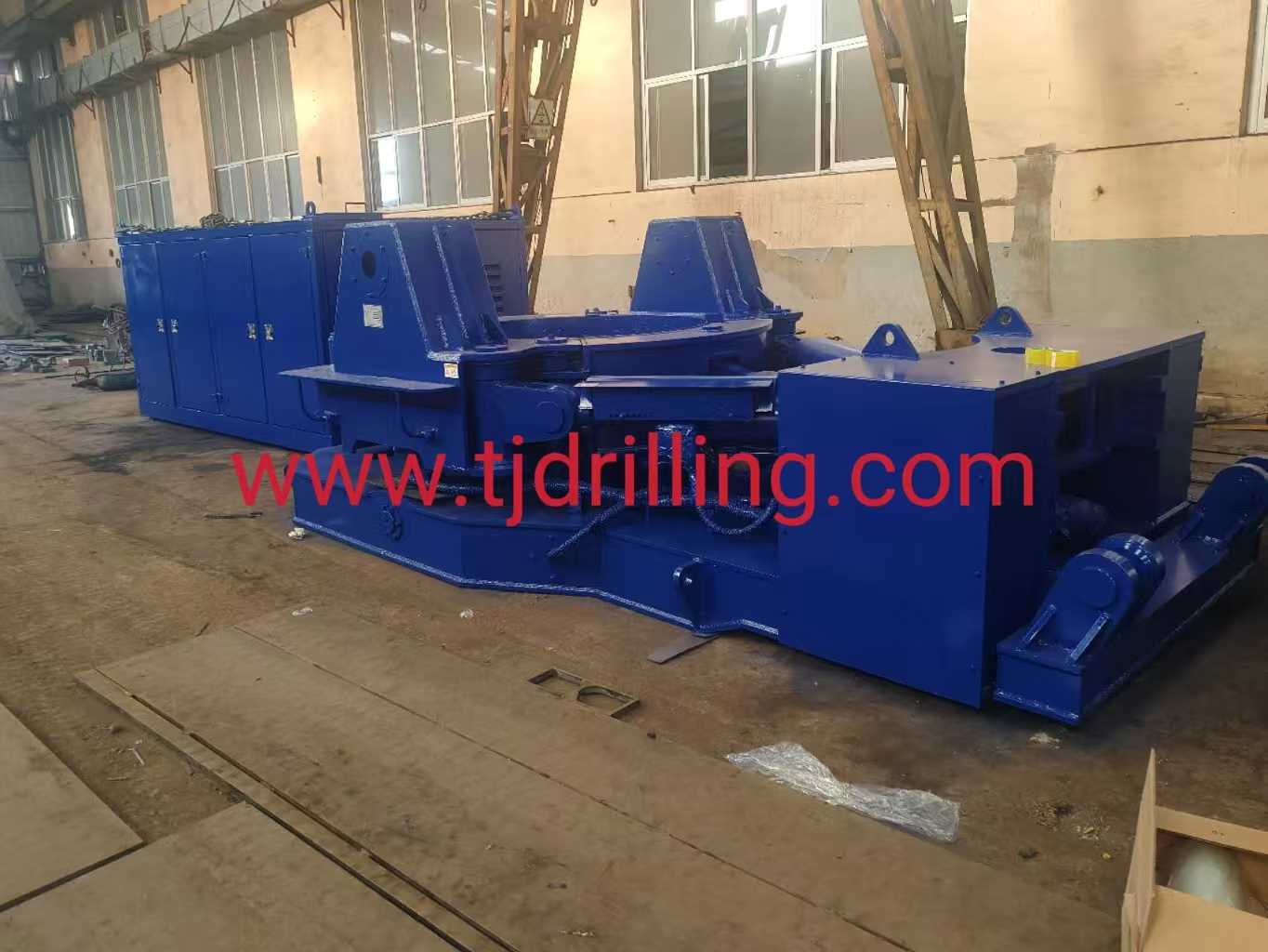

| MODEL: | BCG1500D | REMARK |
| OSCILLATE SIZE OF CASING (mm) | 600~1500 | OD1500MM,OD1200 (OTHER SIZE NEED INSERT )OUR QUOTATION NOT INCLUDE |
| MAX LIFT FORCE (kN) | 2000 | |
| OSCILLATE ANGEL (¡ã) | 18¡ã | |
| TORQUE (KN¡¤m) | 1950 | |
| STROKE(mm) | 450 | |
| CLAMP FORCE(kN) | 1500 | |
| OVERSZE L¡ÁW¡ÁH)(mm) | 4500¡Á3100¡Á1750 | |
| WEIGHT (kg) | 17000 |
| MODEL: | DL180 | |
| DIESEL ENGINE : | 6CT8.3-C240 | TIER3 EMISSION EUROPE3 STANDARD |
| POWER kW | 180 | |
| OUT CAPACITY l/min | 2x170 | |
| WORKING PRESSURE:MPa | 27 | |
| OIL TANK CAPACITY L | 1200 | |
| OVERSIZE(L¡ÁW¡ÁH)(mm) | 3500¡Á2000¡Á1700 | |
| WEIGHT (kg) | 3000 | NOT INCLUDE OIL |
