Procedure for Using 1500mm Casing Oscillators
Procedure for Using 1500mm Casing Oscillators
Deep foundation projects employing casing oscillators are methodically planned and executed, ensuring precision and safety at every step.- Site assessment and planning: Before initiating any drilling-a thorough ground survey is conducted to understand the soil's composition, identify any potential obstructions, and evaluate groundwater conditions. Based on these findings, the most suitable casing oscillator equipment is selected-ensuring it's aptly equipped to handle the project's specific challenges.
- Setting up: Once on-site, the oscillator is carefully mounted onto a crane or a dedicated rig. The entire system is checked for stability and operational readiness. This setup phase is crucial as a well-prepared oscillator ensures efficient and safe drilling.
- Initiating drilling: With everything in place, drilling begins. The oscillator grips the casing and applies rotational force, causing the casing to bore into the ground. The oscillator's unique twisting motion aids in navigating through dense layers and obstructions.
- Continuous monitoring: During drilling, constant monitoring is imperative. Sensors and visual checks ensure the drill progresses correctly, and immediate action is taken if any anomalies or challenges arise. This real-time vigilance is crucial to maintain the borehole's integrity and safeguard against potential issues.
- Extraction of soil: As the drilling progresses, the displaced soil within the casing needs to be periodically removed. Various methods, like clamshell buckets or augers, are used to extract the soil-ensuring the borehole remains clean and preventing any blockages.
- Completion: Upon reaching the desired depth, drilling is halted. At this stage, the project's requirements determine the next steps-which might include introducing reinforcing bars, pouring concrete, or other foundational elements.
- Retrieval: If the project demands it, post-completion, the casing is carefully removed from the borehole. This is done by reversing the oscillator's rotation and gently extracting the casing, ensuring no damage to the freshly drilled hole or the casing itself.

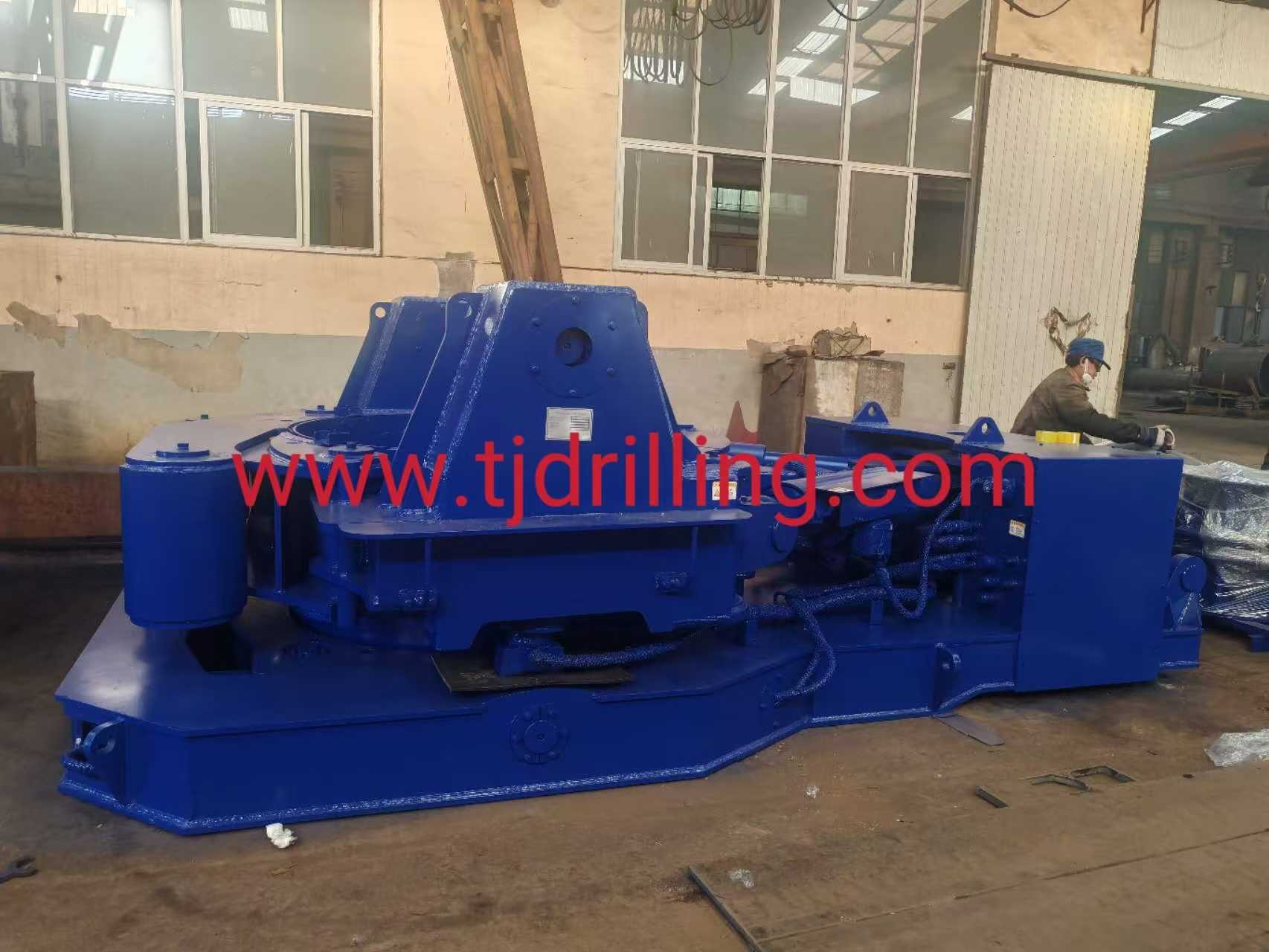

The tianjin huachang xingye technology co ltd casing Oscillator is the ultimate solution for contractors and engineers in need of a powerful, efficient, and versatile tool for complex foundation engineering and soil improvement tasks. Built to deliver outstanding performance and reliability, it ensures a seamless operation in even the most challenging working environments.
1,specification of 1500mm hydraulic casing oscillator
| MODEL: | BCG1500D | REMARK |
| CASING DIAMETER (mm) | 600~1500 | |
| MAX LIFT FORCE (kN) | 2000 | |
| OSCLLATE ANGEL (¡ã) | 18¡ã | |
| TORQUE (KN¡¤m) | 1950 | |
| STOKE(mm) | 450 | |
| CLAMP FORCE(kN) | 1500 | |
| OVER SIZE(L¡ÁW¡ÁH)(mm) | 4800¡Á3000¡Á1650 | |
| WEIGHT (kg) | 16500 |
| MODEL: | DL180 | REMARK |
| DIESEL ENGINE MODEL: | 6CT8.3-C240 | TIER3 EMISSION EUROPE3 STANDARD |
| ENGINE POWER kW | 180 | |
| DISCHARGE CAPACITY l/min | 2x170 | |
| WORKING PRESSURE:MPa | 27 | |
| OIL TANK SIZE L | 1200 | |
| OVER SIZE (L¡ÁW¡ÁH)(mm) | 3500¡Á2000¡Á1850 | |
| WEIGHT (kg) | 3500 |
1. What is the tianjin huachang xingye technology co ltd Oscillator original for?
Tianjin huachang xingye technology co ltd casing Oscillator is a heavy-duty piece of equipment designed for efficient pile driving and soil stabilization in deep foundation construction projects. Perfect for large infrastructure projects such as bridges, marine structures, and high-rise buildings. Original to improve soil compaction and provide enhanced foundation support.
2. What are the key features of the tianjin huachang xingye technology co ltd Oscillator?
High-frequency oscillation for fast and precise pile driving.
Robust design suited for both land and marine construction.
Powered by an advanced hydraulic system for consistent power delivery.
Designed to operate in the most challenging soil and environmental conditions.
3. What is the maximum operating depth of the tianjin huachang xingye technology co ltd casing Oscillator?
The tianjin huachang xingye technology co ltd casin Oscillator is capable of reaching a maximum depth of 75 meters, making it ideal for deep foundation work in a variety of soil conditions.4. What is the maximum pile diameter the casing oscillator can handle?
The tianjin huachang xingye technology co ltd BCG 1500 can drive piles with a maximum diameter of up to 1500 mm making it perfect for large-scale construction projects that require large-diameter piles.
What type of engine powers the TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD CASING Oscillator?
The TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD BCG CASING Oscillator is powered by a high-performance diesel engine, HAVE EURO TIER3 EMISSIONS DIESEL ENGINE POWER PACK , EURO TIER5 DIESEL ENGINE POWER PACK providing the necessary energy to efficiently drive piles and stabilize soil in demanding construction environments.
