Why 1500mm Casing Oscillators for Challenging Ground Conditions?
Why 1500mm Casing Oscillators for Challenging Ground Conditions?
Casing oscillators are mechanical devices that use rotational force, as opposed to vertical force, for drilling, allowing for efficient penetration through challenging terrains compared to traditional methods.The tianjin huachang xingye technology co ltd casing Oscillator is the ultimate solution for contractors and engineers in need of a powerful, efficient, and versatile tool for complex foundation engineering and soil improvement tasks. Built to deliver outstanding performance and reliability, it ensures a seamless operation in even the most challenging working environments.

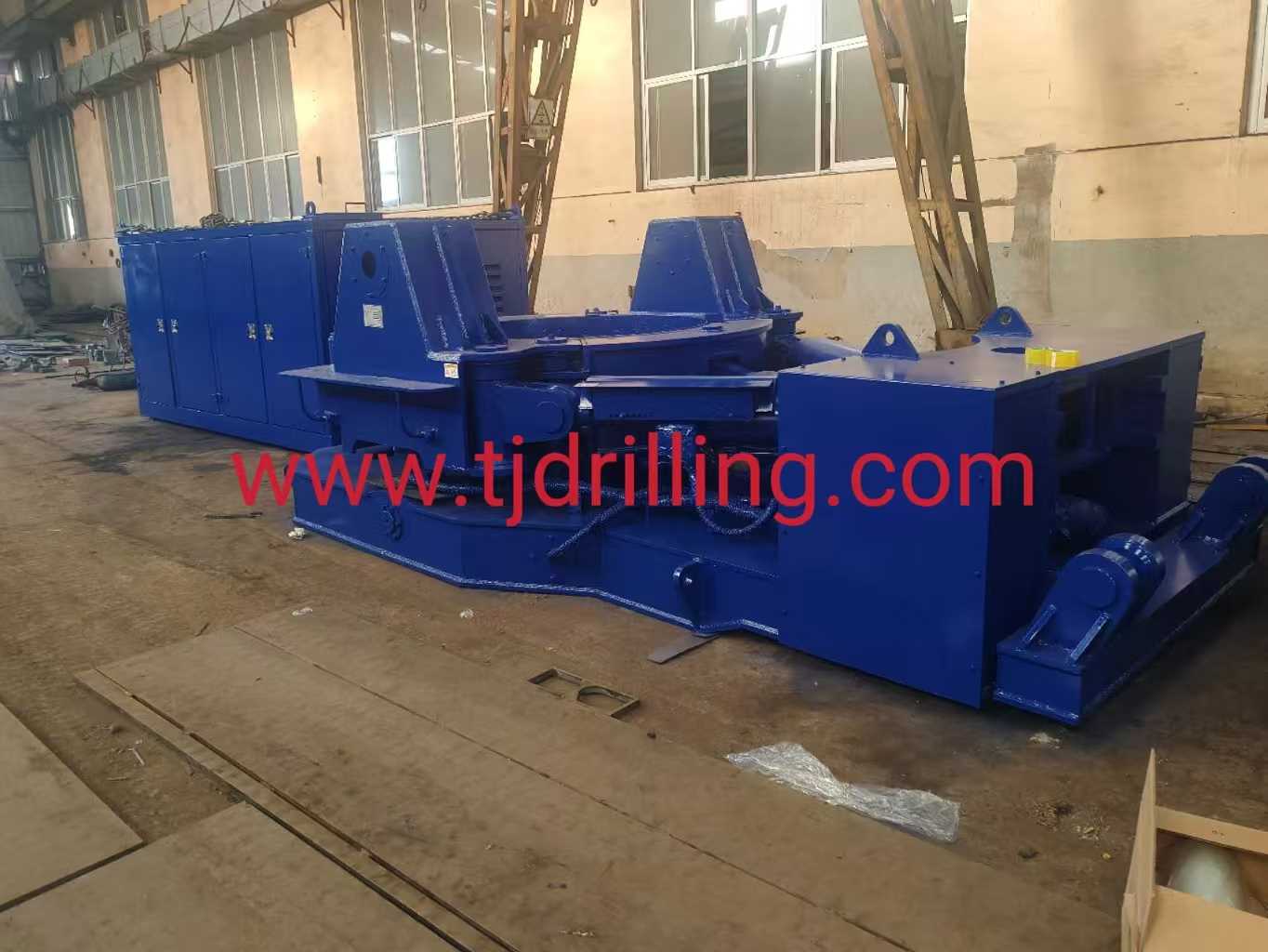

1,specification of 1500mm hydraulic casing oscillator
| MODEL: | BCG1500D | REMARK |
| CASING DIAMETER (mm) | 600~1500 | |
| MAX LIFT FORCE (kN) | 2000 | |
| OSCLLATE ANGEL (¡ã) | 18¡ã | |
| TORQUE (KN¡¤m) | 1950 | |
| STOKE(mm) | 450 | |
| CLAMP FORCE(kN) | 1500 | |
| OVER SIZE(L¡ÁW¡ÁH)(mm) | 4800¡Á3000¡Á1650 | |
| WEIGHT (kg) | 16500 |
| MODEL: | DL180 | REMARK |
| DIESEL ENGINE MODEL: | 6CT8.3-C240 | TIER3 EMISSION EUROPE3 STANDARD |
| ENGINE POWER kW | 180 | |
| DISCHARGE CAPACITY l/min | 2x170 | |
| WORKING PRESSURE:MPa | 27 | |
| OIL TANK SIZE L | 1200 | |
| OVER SIZE (L¡ÁW¡ÁH)(mm) | 3500¡Á2000¡Á1850 | |
| WEIGHT (kg) | 3500 |
In the demanding world of foundation construction, the ground beneath our feet is far from uniform. From dense rock layers to waterlogged soils, the challenges can be varied and formidable.
Penetrating Dense Strata and Obstructions
The unpredictable nature of the earth means that often, drillers encounter hard strata or unexpected obstructions like boulders. Casing oscillators, with their powerful rotational force, can navigate through these challenging terrains effectively. Their twisting motion allows them to cut through dense material, making the process smoother and more efficient.Minimized Vibration
Vibrations during drilling can be more than just a nuisance. In urban areas or near sensitive structures, excessive vibrations can lead to structural damage or even legal complications. Casing oscillators, due to their rotational approach, produce less vibration compared to other methods.Stability in Loose Soils
In areas with loose or unconsolidated soils, traditional drilling can pose the risk of the borehole collapsing. The design of casing oscillators allows for simultaneous drilling and casing. This means as the hole is drilled, the casing is also installed, providing immediate support and preventing soil collapse. It's a two-in-one solution that ensures safety and efficiency.Controlling Groundwater Intrusion
Groundwater can be another significant challenge during foundation construction. In areas with high water tables, there's a risk of water seeping into the borehole-which can compromise its integrity. Casing oscillators, with their sealed design, can create a watertight seal-effectively preventing groundwater intrusion. This ensures that the foundation remains robust and the worksite stays safe.However, there are drawbacks to consider¡
While casing oscillators excel in challenging terrains, they come with higher initial costs and require specialized training compared to traditional drilling. Their design can sometimes limit depth reach and mobility, and in straightforward terrains, they may be slower than conventional methods. In addition, the oscillator's continuous rotation in abrasive conditions can lead to quicker wear-and-tear, potentially raising maintenance costs.
What are casing oscillators and how do they differ from traditional drilling methods?
Casing oscillators are mechanical devices that use rotational force, as opposed to vertical force, for drilling, allowing for efficient penetration through challenging terrains compared to traditional methods.
What challenges do casing oscillators address in foundation construction, especially in challenging terrains?
Casing oscillators effectively address challenges such as penetrating dense strata and obstructions, minimizing vibration in urban areas, providing stability in loose soils, and controlling groundwater intrusion during foundation construction in varied and challenging terrains.
1. What is the tianjin huachang xingye technology co ltd Oscillator original for?
Tianjin huachang xingye technology co ltd casing Oscillator is a heavy-duty piece of equipment designed for efficient pile driving and soil stabilization in deep foundation construction projects. Perfect for large infrastructure projects such as bridges, marine structures, and high-rise buildings. Original to improve soil compaction and provide enhanced foundation support.
2. What are the key features of the tianjin huachang xingye technology co ltd Oscillator?
High-frequency oscillation for fast and precise pile driving.
Robust design suited for both land and marine construction.
Powered by an advanced hydraulic system for consistent power delivery.
Designed to operate in the most challenging soil and environmental conditions.
3. What is the maximum operating depth of the tianjin huachang xingye technology co ltd casing Oscillator?
The tianjin huachang xingye technology co ltd casin Oscillator is capable of reaching a maximum depth of 75 meters, making it ideal for deep foundation work in a variety of soil conditions.4. What is the maximum pile diameter the casing oscillator can handle?
The tianjin huachang xingye technology co ltd BCG 1500 can drive piles with a maximum diameter of up to 1500 mm making it perfect for large-scale construction projects that require large-diameter piles.
What type of engine powers the TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD CASING Oscillator?
The TIANJIN HUACHANG XINGYE TECHNOLOGY CO LTD BCG CASING Oscillator is powered by a high-performance diesel engine, HAVE EURO TIER3 EMISSIONS DIESEL ENGINE POWER PACK , EURO TIER5 DIESEL ENGINE POWER PACK providing the necessary energy to efficiently drive piles and stabilize soil in demanding construction environments.
